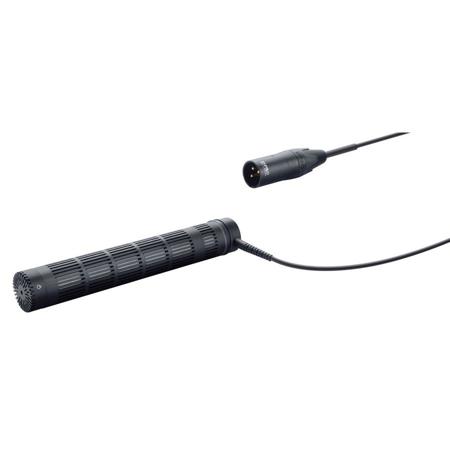

DPA Microphones d:dicate 4017ES Professional Shotgun Supercardioid Microphone
See all DPA Microphones items

DPA Microphones d:dicate 4017E Professional Shotgun Supercardioid Microphone with Modular Active Side Cable, 20Hz-20kHz

SKU: DPA4017ES MFR: 4017ES
Be the first to review this itemAsk a Question
$2,000.00
OR
$167/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this shotgun microphone, perfect for film and broadcast use.
  • Experience superior sound quality; the d:dicate 4017E ensures clear, professional recordings.
  • Achieve focused audio with its supercardioid pattern, ideal for interviews and on-location shoots.
  • Enjoy low noise performance, ensuring clean recordings even in challenging environments.
  • Rely on its durable build for consistent performance, making it a dependable tool for pros.
  • Connect easily with its XLR output, seamlessly integrating into professional audio setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

DPA Microphones d:dicate 4017ES Professional Shotgun Supercardioid Microphone Specifications

  • Directional characteristics

    Supercardioid, lobe-shaped

  • Principle of operation

    Pressure gradient, with interference tube

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz - 20kHz
    +/- 2dB at 60cm: 40Hz - 18kHz with typ. 3dB soft boost at 15kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 19mV/Pa
    -34.4dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 13dB(A) re. 20½Pa
    Maximum: 15dB(A)

    ITU-R BS.468-4:
    Typical: 24dB
    Maximum: 26dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 81dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 137dB SPL peak

  • Dynamic range

    Typical: 124dB

  • Max. SPL

    Peak before clipping: 138dB

  • Output impedance

    100Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4V)

  • Current consumption

    3.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: phase

  • Output voltage

    2.2V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Capsule diameter

    0.75" / 19.05mm

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 4.9" / 19.05 x 124.46mm

  • Weight

    121g / 4.27oz

About DPA Microphones d:dicate 4017ES Professional Shotgun Supercardioid Microphone

With their most tiny pre-amp design, the 4017E features an integrated cable solution with either side (4017ES) or rear (4017ER) cable entry. Being the shortest professional interference tube shotgun mic available today, the 4017E will with its only 12,5 cm length and 30 g capsule weight (121 g in total with 3 m cable and connector) be able to boom actors or capture distant voice dialogue for broadcast and video situations.

The SM4000 suspension mount is included in the package, allowing the 4017E to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere. At any time and with no tools necessary it is possible to transform the basic 4017E microphone into a new configuration by combining it with another DPA microphone capsule or preamp.

DPA Microphones d:dicate 4017ES Professional Shotgun Supercardioid Microphone Features

  • Sleek shotgun for distant miking
  • Short and lightweight
  • Integrated active cable
  • Highly directional

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture pristine audio with this shotgun microphone, perfect for film and broadcast use.
  • Experience superior sound quality; the d:dicate 4017E ensures clear, professional recordings.
  • Achieve focused audio with its supercardioid pattern, ideal for interviews and on-location shoots.
  • Enjoy low noise performance, ensuring clean recordings even in challenging environments.
  • Rely on its durable build for consistent performance, making it a dependable tool for pros.
  • Connect easily with its XLR output, seamlessly integrating into professional audio setups.

What's in the box:

  • DPA Microphones d:dicate 4017E Professional Shotgun Supercardioid Microphone with Modular Active Side Cable
  • Foam Windscreen
  • SM4000-C Suspension Mount
  • DPA Microphones 2 Year Limited Warranty
