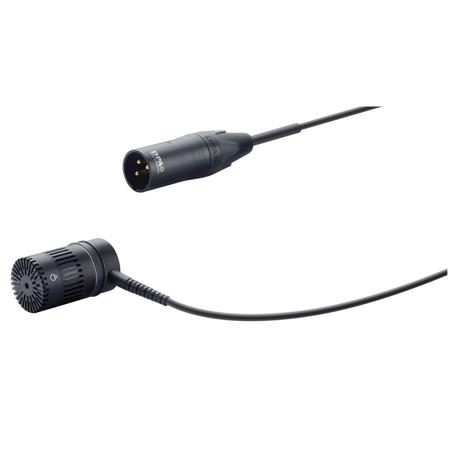

DPA Microphones d:dicate 4018ES Supercardioid Microphone with Modular Active Side Cable, 20Hz to 20kHz

SKU: DPA4018ES MFR: 4018ES
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA condenser microphone's exceptional clarity and detail.
  • Achieve superior sound isolation using the supercardioid polar pattern, perfect for live recordings.
  • Enjoy low noise levels, ensuring clean and professional recordings every time with this microphone.
  • The modular active side cable offers flexible connectivity for seamless integration into your setup.
  • This condenser microphone boasts a wide 20Hz-20kHz frequency range, ideal for diverse applications.
  • Rely on the robust build quality for years of dependable performance in any recording environment.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:dicate 4018ES Supercardioid Microphone with Active Side Cable Specifications

  • Directional pattern

    Supercardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    +/- 2dB at 30cm: 40Hz-18kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 12mV/Pa
    -38.4dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 16dB (A) re. 20½Pa
    Maximum: 19dBA

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 78dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 137dB SPL peak

  • Dynamic range

    Typical: 121dB

  • Max. SPL

    Peak before clipping: 142dB

  • Output impedance

    100Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4 V)

  • Current consumption

    3.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: - phase

  • Capsule diameter

    0.75" / 19.05mm

  • Output voltage

    2.2V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Matching tolerance

    +/- 1dB

  • Phase deviation for kit

    < 10 deg.

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 1.38" / 19.05 x 35.05mm

  • Weight

    109g / 3.84oz

About DPA Microphones d:dicate 4018ES Supercardioid Microphone with Active Side Cable

A high-quality, professional-grade audio solution, the d:dicate 4018ES Supercardioid Microphone with Modular Active Side Cable, 20Hz to 20kHz, is a standout product from the renowned DPA d:dicate Recording Microphones series. This ultra-compact microphone, measuring a mere 3.5 cm in length, is perfect for discreet or distant miking applications, including desktop or hanging use.

The 4018ES microphone boasts a highly directional supercardioid pickup pattern, known for its smooth and uniform off-axis frequency response. This supercardioid shape is frequency independent, ensuring a consistent sound color around the microphone. Unlike most supercardioids, the 4018ES minimizes the usual rear lobe, resulting in a more isolated sound without sudden frequency-dependent peaks and dips.

Designed with versatility in mind, this microphone is ideal for a wide array of long-distance miking applications in the broadcast, ENG, and film industries. Whether it's capturing dialogue, conducting interviews, or miking a table or podium, the 4018ES delivers superior performance. Its modular 4018 capsule offers exceptional flexibility through the use of modular accessories.

The 4018ES is also perfectly suited for orchestra recording situations as a spot or hanging mic, thanks to the included SM4000-C suspension mount. This feature allows the microphone to be hung from the ceiling, enabling precision spot miking of orchestra sections or creating an ambient atmosphere.

Moreover, the 4018ES microphone offers the convenience of easy transformation into a new configuration at any time, without the need for tools. This is achieved by combining it with another DPA microphone capsule or preamp, further enhancing its flexibility and adaptability to various recording situations.

In summary, the d:dicate 4018ES Supercardioid Microphone with Modular Active Side Cable, 20Hz to 20kHz, is a reliable, durable, and innovative audio recording solution, designed to meet the demanding needs of professionals in the audio industry.

DPA Microphones d:dicate 4018ES Supercardioid Microphone with Active Side Cable Features

  • Ultra-compact table or hanging mic
  • Frequency consistent polar pattern
  • Highly directional
  • Low-key appearance

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA condenser microphone's exceptional clarity and detail.
  • Achieve superior sound isolation using the supercardioid polar pattern, perfect for live recordings.
  • Enjoy low noise levels, ensuring clean and professional recordings every time with this microphone.
  • The modular active side cable offers flexible connectivity for seamless integration into your setup.
  • This condenser microphone boasts a wide 20Hz-20kHz frequency range, ideal for diverse applications.
  • Rely on the robust build quality for years of dependable performance in any recording environment.

What's in the box:

  • DPA Microphones d:dicate 4018ES Supercardioid Microphone with Modular Active Side Cable
  • SM4000-C Suspension Mount
  • Foam Windscreen
  • DPA Microphones 2 Year Limited Warranty
