DPA Microphones d:dicate 4018ES-T Supercardioid Table Microphone Kit Specifications

  • Directional pattern

    Supercardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    +/- 2dB at 30cm: 40Hz-18kHz

  • Sensitivity

    Nominal +/- 2dB at 1kHz: 12mV/Pa
    -38.4dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 16dB (A) re. 20½Pa
    Maximum: 19dBA

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 78dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 137dB SPL peak

  • Dynamic range

    Typical: 121dB

  • Max. SPL

    Peak before clipping: 142dB

  • Output impedance

    100Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing

  • Common Mode Rejection Ratio (CMRR)

    >40dB

  • Power supply

    48V Phantom power (+/-4 V)

  • Current consumption

    3.5mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: - phase

  • Capsule diameter

    0.75" / 19.05mm

  • Output voltage

    2.2V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Matching tolerance

    +/- 1dB

  • Phase deviation for kit

    < 10 deg.

  • Dimensions (Dia. x L)

    Microphone: 0.75 x 1.38" / 19.05 x 35.05mm

  • Weight

    109g / 3.84oz

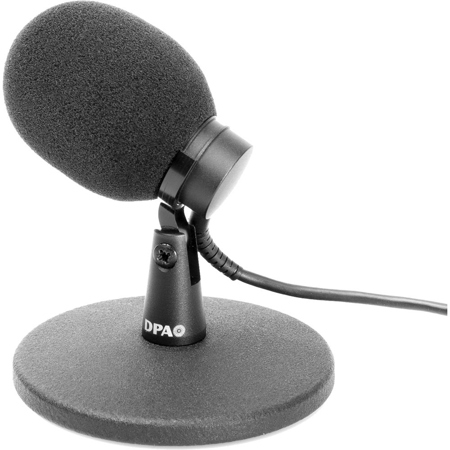

About DPA Microphones d:dicate 4018ES-T Supercardioid Table Microphone Kit

Ideal for unobtrusive or distant miking such as desktop use, the 4018ES-T is an ultra-compact supercardioid microphone from the modular DPA d:dicate Recording Microphones series.With a length of only 3,5 cm, the low-key appearance of the 4018E is as unique as the highly directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on the 4018E making it much more isolated without sudden frequency dependent peaks and dips.

Designed for a broad range of broadcast/ENG/film long-distance miking applications, such as various dialogue capturing, interview and table or podium use, the modular 4018 capsule offers superb flexibility through modular accessories. The 4018E is also ideal for use as spot or hanging mic for orchestra recording situations with the SM4000-C suspension mount, which is included in the package. This allows the 4018E to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere.At any time and with no tools necessary it is possible to transform the basic 4018E microphone into a new configuration by combining it with another DPA microphone capsule or preamp.

DPA Microphones d:dicate 4018ES-T Supercardioid Table Microphone Kit Features

  • Ultra-compact table mic
  • Frequency consistent polar pattern
  • Highly directional
  • Low-key appearance

Key Features

  • Ultra-compact table mic
  • Frequency consistent polar pattern
  • Highly directional
  • Low-key appearance

What's in the box:

  • DPA Microphones d:dicate 4018ES-T Supercardioid Table Microphone
  • SM4000-C Suspension Mount
  • Table Stand
  • Foam Windscreen
  • DPA Microphones 2 Year Limited Warranty
