DPA Microphones 4080 Miniature Specifications

  • Compatibility

    Sennheiser Wireless Systems

  • Directional characteristics

    Cardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser element with vertical diaphragm

  • Frequency range at +/- 2dB

    250Hz - 17kHz with typ. 4dB soft boost at 4 - 6kHz (-5dB at 100Hz)

  • Sensitivity

    Nominal +/-3dB at 1kHz: 20mV/Pa
    -34dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 23dB(A) re. 20½Pa
    Maximum: 26dB(A)

  • S/N ratio

    Re. 1kHz at 1Pa (94dB SPL): 71dB (A)

  • Total harmonic distortion (THD)

    < 1 % up to 123dB SPL peak
    < 1 % up to 120dB SPL RMS sine

  • Dynamic range

    Typical: 100dB

  • Max. SPL

    Peak before clipping: 134dB

  • Output impedance

    30-40Ohms

  • Cable drive capability

    Up to 984' / 299.93m

  • Power supply

    For wireless systems: Min. 5V - max. 50V through DPA adapter
    With DAD6001-BC/DAD6024/DAD4099: 48V phantom power +/-4V for full performance

  • Connector

    Hardwired 3-pin LEMO

  • Cable length

    4' / 1.22m

  • Cable diameter

    0.06" / 1.52mm

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Capsule diameter

    0.2" / 5.08mm

  • Dimensions (Dia. x L)

    Microphone: 0.4 x 1.2" / 10.16 x 30.48mm

  • Weight

    Microphone include cable and MicroDot connector: 15g / 0.53oz

  • UPC Code

    192223055971

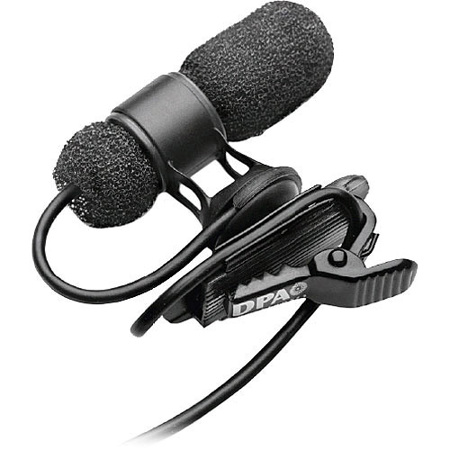

About DPA Microphones 4080 Miniature

Combining high audio quality and low visibility, the DPA 4080 is well suited for broadcast, conference and other live performances in the studio or in the field. It is acoustically pre-equalized, offering a 4 dB presence boost, which makes the voice more distinguishable and improves speech intelligibility. Professionals will appreciate the light weight and the excellent speech reproduction.

DPA 4080 is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip. An additional white pop filter is enclosed. Because of the flexible and practical mounting solution, the microphone can easily be turned in all directions and fits both left and right buttoned shirts.All parts of the microphone are manufactured in highly resistant materials and designed to perform under stress.

DPA Microphones 4080 Miniature Features

  • Excellent Speech Reproduction
  • Discreet, Compact Design
  • Fits Both Left and Right Buttoned Shirts
  • Delivered with Both Black and White Pop Filter

Key Features

  • Excellent Speech Reproduction
  • Discreet, Compact Design
  • Fits Both Left and Right Buttoned Shirts

What's in the box:

  • DPA Microphones d:screet 4080 Miniature Cardioid Lavalier Microphone
  • Hardwired 3-Pin LEMO Connector
  • Black Pop Filter
  • White Pop Filter
  • DPA Microphones 2 Year Limited Warranty
