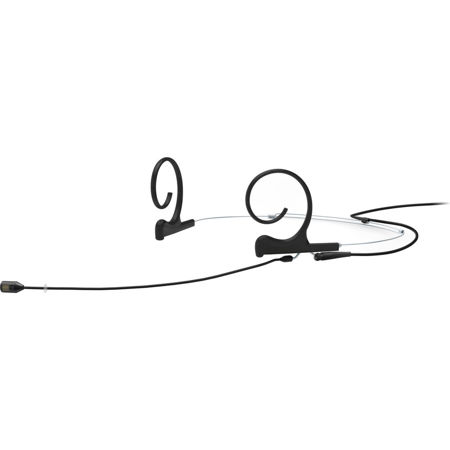

DPA Microphones d:fine CORE 4288 Round Directional Flex Two-Ear Headset Microphone with 3-Pin LEMO Connector, 120mm Boom, Black

SKU: DPA428DCFB3L MFR: 4288-DC-F-B03-LH
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this DPA headset microphone, perfect for presenters.
  • Enjoy exceptional sound quality with the cardioid polar pattern, minimizing background noise.
  • This comfortable, two-ear headset is ideal for extended use during long performances.
  • Ensure reliable connectivity with the 3-Pin LEMO connector, designed for professional use.
  • Achieve pristine vocal recordings with a wide frequency range of 20 Hz - 20 kHz.
  • The d:fine CORE technology delivers high dynamic range for clear, detailed sound capture.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:fine CORE 4288 Headset Mic, 3-Pin LEMO, 120mm, Black Specifications

  • Directional pattern

    Cardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB, Near field 2-3 cm (0.8 - 1.2"): 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))
    ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL

    Peak before clipping: 144 dB

  • Output impedance

    From DAD6001: 100 Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR Adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR Adapter

  • Common mode rejection ratio (CMRR)

    > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

  • Power supply (for full performance)

    Min. 5 V to max. 50 V through DPA adapter for wireless systems

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Connector

    3-Pin LEMO

  • Polarity

    Positively increasing sound pressure produces positive-going voltage at 3-Pin LEMO pin (and pin 2 on DAD6001 XLR adapter)

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Microphone length

    12.7mm (0.50")

  • Cable length

    1.25m (4.10')

  • Cable diameter

    1.6mm (0.06")

  • Boom Length

    120mm (4.72")

  • Weight

    Dual Ear:
    Microphone boom: 1g (0.04 oz)
    Earhook: 3g (0.11 oz)
    Cable: 8g (0.28 oz)
    Total: 12g (0.42 oz)

About DPA Microphones d:fine CORE 4288 Headset Mic, 3-Pin LEMO, 120mm, Black

It epitomizes the fusion of DPA's renowned sound quality and the versatility of the d:fine headset system, the d:fine CORE 4288 Directional Flex Two-Ear Headset Microphone stands out for its exceptional clarity and vocal consistency. Engineered with the high-end 4088 Directional Capsule, this headset microphone is a top choice for professionals seeking superior voice intelligibility and the ability to handle high sound pressure levels (SPL) without distortion. Whether delivering a keynote speech or performing live vocals, the d:fine 4288 captures every nuance with precision.

The microphone's design ensures outstanding off-axis rejection, making it highly effective in isolating the speaker's voice from ambient noise. This feature is particularly beneficial in live performance settings where background sounds and the potential for feedback are prevalent. The d:fine 4288's directional characteristics are further enhanced by its tailored bass response, which maintains linearity when positioned optimally from the sound source, thereby minimizing unwanted noise and feedback.

Crafted for comfort and minimal visibility, the headset is lightweight, flexible, and can be easily adjusted to fit any ear size and head shape. The secure two-ear design ensures stability during active performances, while the discreet profile keeps the focus on the performer, not the equipment. The boom and ear hook can be rotated, allowing for quick adaptation for use on either the left or right ear.

The d:fine CORE 4288's 120mm boom length is meticulously calculated to position the microphone at the corner of the mouth, avoiding "popping" sounds and ensuring clear audio capture. The headset's modular design includes a detachable cable with a 3-Pin LEMO connector, facilitating easy repairs or replacements, as well as compatibility with a wide range of professional wireless systems.

CORE by DPA technology elevates the performance of the d:fine 4288, offering an extended dynamic range of 14 dB and ensuring an open, transparent sound quality. The IP58 certification attests to the microphone's robust build, featuring a water-repellent nano-coating, hermetically sealed amplifier, and dual gold-plated diaphragm for unparalleled durability against the elements.

The cardioid pickup pattern of the d:fine 4288 is engineered to capture sound with maximum sensitivity at the front while significantly reducing pickup from the sides and rear. This pattern is ideal for live stages, as it focuses on the intended sound source and minimizes bleed from surrounding noise. The DPA capsule technology ensures that off-axis sounds are not colored but simply less pronounced, maintaining a true sound stage.

DPA's innovative adapter system offers unmatched flexibility, allowing the microphone to be used with a variety of wireless systems. This adaptability means that the investment in the d:fine 4288 is future-proof, as it can easily be integrated with new or existing wireless setups without compromising sound quality.

In summary, the d:fine CORE 4288 Round Directional Flex Two-Ear Headset Microphone is a professional-grade audio solution that combines durability, adaptability, and the highest standards of audio fidelity, making it an indispensable tool for performers and speakers in any demanding audio environment.

DPA Microphones d:fine CORE 4288 Headset Mic, 3-Pin LEMO, 120mm, Black Features

  • High-quality two-ear headset microphone with 4088 Directional Capsule for superior voice intelligibility
  • Equipped with CORE by DPA technology for extended dynamic range and clear sound
  • IP58-certified for robustness against elements, featuring water-repellent nano-coating and dual gold-plated diaphragm
  • Adjustable and lightweight design with 120mm boom for optimal positioning and comfort
  • Offers excellent off-axis rejection for effective isolation of intended sound in high-noise environments
  • Compatible with various professional wireless systems through the innovative DPA adapter system

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this DPA headset microphone, perfect for presenters.
  • Enjoy exceptional sound quality with the cardioid polar pattern, minimizing background noise.
  • This comfortable, two-ear headset is ideal for extended use during long performances.
  • Ensure reliable connectivity with the 3-Pin LEMO connector, designed for professional use.
  • Achieve pristine vocal recordings with a wide frequency range of 20 Hz - 20 kHz.
  • The d:fine CORE technology delivers high dynamic range for clear, detailed sound capture.

What's in the box:

  • DPA Microphones d:fine CORE 4288 Round Directional Flex Two-Ear Headset Microphone with 3-Pin LEMO Connector
  • 4x Foam Windscreens
  • Makeup Cover
  • Pop Screen
  • ID Rings and Cover
  • Clothing Clip
  • DPA Microphones 2 Year Limited Warranty
