DPA Microphones VO4-Classic Specifications

  • Directional pattern

    Supercardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    +/- 2dB, 20cm distance: 80Hz to 15kHz with 2dB soft boost at 10 to 12kHz

  • Sensitivity

    Nominal +/- 3dB at 1kHz: 2mV/Pa
    -54dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 28dB(A) re. 20½Pa
    Maximum: 31dB(A)

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 66dB(A)

  • Total Harmonic Distortion (THD)

    <1 % up to 123dB SPL peak
    <1 % up to 120dB SPL RMS sine

  • Dynamic range

    95dB

  • Max. SPL

    Peak before clipping: 152dB

  • Output impedance

    From MicroDot: 30 to 40Ohms
    From DAD6001: 100Ohms

  • Cable drive capability

    Up to 984' / 299.93m with DAD6001 XLR adapter

  • Output balance principle

    Signal balanced with DAD6001 XLR adapter

  • Common Mode Rejection Ratio (CMRR)

    > 60dB from 50Hz to 15kHz with DAD6001 XLR adapter

  • Power supply

    Min. 5V to max. 50V through DPA adapter for wireless systems
    48V phantom power +/- 4V with DAD6001 XLR adapter

  • Current consumption

    Typ. 1.5mA (microphone)
    3.5mA with DAD6001 XLR adapter

  • Connector

    MicroDot

  • Capsule diameter

    0.2" / 5.08mm

  • Microphone Length

    1.8" / 45.72mm

  • Cable Length

    6' / 1.83m

  • Polarity

    Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Gooseneck length

    5.5" / 139.70mm

About DPA Microphones VO4-Classic

Ready for on-the-road-use for rental companies, musicians or theatres, the d:vote 4099 Rock Touring Kits offer a wide selection of microphones and accessories selected for typical use. The close microphone placement to sound levels like violins or guitars requires microphones with normal sensitivity in order not to clip the following input stages. A detachable lightweight cable from gooseneck to the XLR adapter makes it convenient to mount the mic on an instrument before connecting it. The extremely flexible cable does not weigh down the instrument. In case of cable break, service is easy and fast. The low profile and unobtrusive design provides visual elegance along with uncompromised sound quality and accurate dynamics for the vast majority of instruments.

The unique and flexible clip-on system provides fast, stable and repeatable positioning. The mics can be easily positioned at different angles via the flexible gooseneck to match different radiation patterns and allow a variety of sound nuances. The d:vote 4099 Touring Kits include a 3-pin XLR phantom power adapter with belt clip. Standard gooseneck length is 140 mm (5.5 in), which can be altered with the optional gooseneck extension unit, adding another 50% to the length, helping to achieve exactly the sweet spot for the instrument. A wide range of connection adapters makes it possible to use DPA miniature microphones with all professional UHF, VHF or digital wireless system available plus 48 V Phantom.

DPA Microphones VO4-Classic Features

  • Excellent frequency and phase response
  • Capable of handling extremely high SPLs
  • Compact, discreet size
  • Versatility in mounting options
  • Detachable cable and versatile gooseneck extender

Key Features

  • Excellent frequency and phase response
  • Capable of handling extremely high SPLs
  • Compact, discreet size
  • Versatility in mounting options
  • Detachable cable and versatile gooseneck extender

What's in the box:

  • DPA Microphones 4x d:vote 4099 Instrument Microphones
  • 4x Microdot Adapters
  • 4x Miniature Microphone Cables
  • 4x Clips for Violin
  • 2x Clips for Cello
  • Clips for Guitar
  • Clips for Sax/Trumpet
  • Universal Clips
  • Clip for Bass

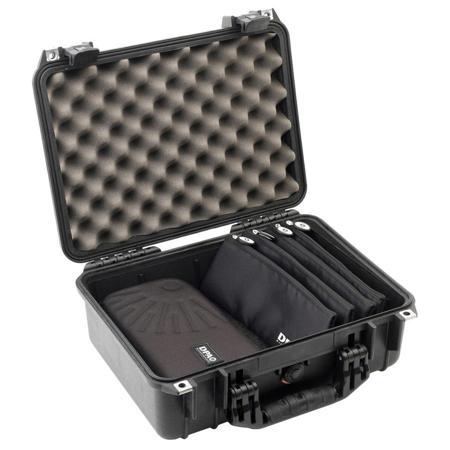

  • Peli Case
  • DPA Microphones 2 Year Limited Warranty
