DPA Microphones d:dicate 5006A Surround Kit with 5x 4006A Omni Microphone
See all DPA Microphones items

DPA Microphones d:dicate 5006A Surround Kit, Includes 5x 4006A Omni Microphone, 5x DD0251 Free-Field Grid, 5x DD0254 Close-Miking Grid, 5x DD0297 Diffuse-Field Grid

SKU: DPA5006A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DPA Microphones 5006A Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    10Hz-20kHz
    +/- 2dB: 10Hz-20kHz

  • Sensitivity

    Nominal +/- 2dB at 250Hz: 40mV/Pa
    -28dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 15dB(A) re. 20½Pa
    Maximum: 17dB(A)

    ITU-R BS.468-4:
    Typical: 27dB
    Maximum: 29dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 79dB(A)

  • Total Harmonic Distortion (THD)

    < 1 % up to 139dB SPL peak

  • Dynamic range

    Typical: 124dB

  • Max. SPL

    Peak before clipping: 147dB

  • Switchable Attenuator

    0dB / -20dB

  • Output impedance

    <200Ohms

  • Minimum load impedance

    2kOhms

  • Cable drive capability

    328' / 99.98m

  • Output balance principle

    Impedance balancing with Active Drive

  • Common Mode Rejection Ratio (CMRR)

    >60dB

  • Power supply

    48V Phantom power (+/-4V)

  • Current consumption

    2.8mA

  • Connector

    XLR-3M
    Pin 1: shield
    Pin 2: signal + phase
    Pin 3: - phase

  • Output voltage

    > 5V RMS

  • Polarity

    +V at pin 2 for positive sound pressure

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Matching tolerance

    +/- 0.5dB

  • Phase deviation for kit

    < 5 deg.

  • Capsule diameter

    0.6" / 15.24mm

  • Dimensions (Dia. x L)

    Microphone: 0.6 to 0.75 x 6.7" / 16 to 19.05 x 170.18mm

  • Weight

    163g / 5.75oz

About DPA Microphones 5006A

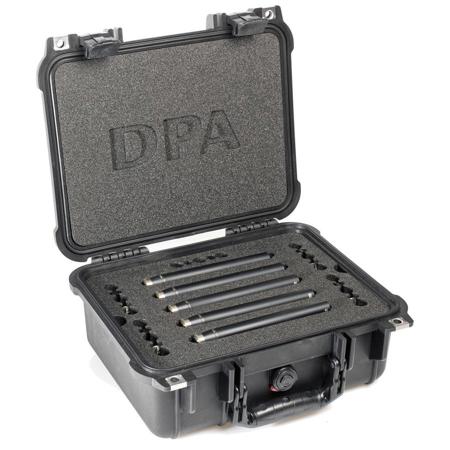

The DPA 5006A is a complete DPA 4006A Surround Kit with five carefully factory-matched omni microphones. Even though the standard tolerances on the d:dicate Recording Microphones are extremely low, the surround match is even closer. The specially selected DPA 4006A microphones are matched within +/-0.5 dB on both frequency response and sensitivity from mean of set. The maximum phase response difference is 5deg.. The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (+/-2 dB) of the microphones make the DPA 4006As the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of a DPA 4006A microphone will provide you with a lifetime of satisfying listening. The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory.

Included in this kit
Carefully matched microphones, sturdy Peli case, holders, grids and windscreens.

Features
• Five carefully matched microphones
• Perfect for Decca Tree + rear omnis surround array
• Specially useful for acoustically accurate reproductions
• Peli Case transportation and protection

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • DPA Microphones 5x 4006A Omni Microphone
  • 5x DD0251 Free-Field Grid
  • 5x DD0254 Close-Miking Grid
  • 5x DD0297 Diffuse-Field Grid
  • 5x UA0639 Microphone Clip
  • 5x DUA0020 Foam Windscreen
  • Peli Case
  • DPA Microphones 5 Year Limited Warranty
