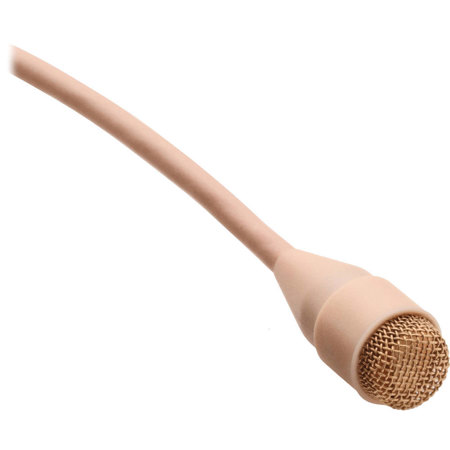

DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Normal SPL, High-Sens, Beige

SKU: DPA60OCCF03 MFR: 4060-OC-C-F03
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA omnidirectional lavalier microphone.
  • Achieve exceptional sound quality with the d:screet Core 4060's clear reproduction.
  • Enjoy versatile connectivity using the hardwired 3-Pin LEMO connector.
  • Benefit from low noise and high sensitivity for professional recordings.
  • Use for film, broadcast, or theater with its discreet, miniature design.
  • Rely on its durability with included grids for high-boost protection.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet Core 4060 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    20 mV/Pa; -34 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 23 dB(A) re. 20 MuPa (max. 26 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 35 dB (max. 38 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 129 dB SPL peak

  • Dynamic range

    Typ. 106 dB

  • Max. SPL, peak before clipping

    134 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 3-Pin LEMO Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

Models
DPA Microphones d:screet Core 4060 Mini Omni Mic, 3-Pin LEMO, Normal SPL, Beige
$625.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet Core 4061 Mini Omni Mic, 3-Pin LEMO, Loud SPL, Black
$625.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones MMB4066-C03 Miniature Omnidirectional Mic Boom, Brown
$624.95

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Microphone Type--Headset
Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorLemo 3 pinLemo 3 pinLemo 3 pin
Application--Vocals

About DPA Microphones d:screet Core 4060

How does the d:screet Core 4060 Miniature Omnidirectional Microphone stand out This high-sensitivity, beige-colored microphone with a hardwired 3-pin LEMO connector is designed to deliver exceptional audio quality in a variety of applications. It's a product of DPA's innovative technology, initially used in hearing aids and measurement microphones, and now incorporated into this compact yet powerful device.

The d:screet Core 4060 is a versatile microphone, optimized for different applications based on sensitivity, voltage, and placement needs. It's a descendant of the original d:screet 4060, the first miniature microphone developed by DPA, and shares its fundamental features while offering unique enhancements.

This microphone is built to endure the harshest conditions. Its 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm is protected by a Double Vent Protection System, making it highly resistant to humidity and sweat. The Kevlar-reinforced cable relief is designed to withstand constant twists, bends, and pulls, making it ideal for everyday use in demanding environments.

The acoustic response of the d:screet 4060 can be modified by selecting the appropriate grid. Each microphone comes with two anodized stainless steel grids that are tough, scratch-resistant, and easy to clean. The Soft Boost Grid provides a 3 dB boost at 8-20 kHz, while the High Boost Grid introduces a 10 dB boost around 12 kHz, making it perfect for chest-placement applications.

Despite its small size, the d:screet Core 4060 delivers an accurate omnidirectional pattern, eliminating the need to aim it directly at the sound source. It's less sensitive to handling noise, pop, and wind noise, making it a favorite for theater, television, and film applications. It's also adept at capturing speech in all its nuances and can be used to close-mike a wide range of instruments.

This microphone can handle sound pressure levels up to 134 dB before clipping, making it suitable for applications where the sound source is remote or damped. It's available in four colors: black, brown, beige, and white, and a more robust, heavy-duty version is also available.

The d:screet Core 4060 also features a flexible adapter system, allowing it to be easily configured with a wireless system. The unique MicroDot termination and changeable adapter ensure a secure and effortless connection to your system. This microphone is compatible with a wide range of professional wireless systems, including AKG, Audio Ltd., Audio-Technica, Beyerdynamic, Electro-Voice, Lectrosonics, Line 6, Micron, Mipro, Pastega, Ramsa, Sabine, Samson, Sennheiser, Shure, Sony, Telex, TOA, Trantec, Vega, Wisycom, and Zaxcom. Hardwired versions without the MicroDot connector are also available for various versions.

In conclusion, the d:screet Core 4060 Miniature Omnidirectional Microphone is a compact, versatile, and resilient audio tool that delivers superior sound quality in a variety of settings.

DPA Microphones d:screet Core 4060 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA omnidirectional lavalier microphone.
  • Achieve exceptional sound quality with the d:screet Core 4060's clear reproduction.
  • Enjoy versatile connectivity using the hardwired 3-Pin LEMO connector.
  • Benefit from low noise and high sensitivity for professional recordings.
  • Use for film, broadcast, or theater with its discreet, miniature design.
  • Rely on its durability with included grids for high-boost protection.

What's in the box:

  • DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
