DPA Microphones d:screet 4160 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB, 20 Hz - 20 kHz, 3 dB soft boost at 5 - 20 kHz
    Button-hole mount: 20 Hz - 18 kHz, 5 dB soft boost at 5 - 18 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 23 dB(A) re. 20 MuPa (max. 26 dB(A))
    ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)

  • Total harmonic distortion (THD)

    < 1% up to 123 dB SPL peak, < 1% up to 120 dB SPL RMS sine

  • Dynamic range

    Typ. 100 dB

  • Max. SPL

    Peak before clipping: 134 dB

  • Output Impedance

    From MicroDot: 30 - 40Ohms. From DAD6001: 100Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR Adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR Adapter

  • Common mode rejection ratio (CMRR)

    > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

  • Power supply (for full performance)

    Min. 5V to max. 50V through DPA adapter for wireless systems, 48V phantom power +/-4V with DAD6001 XLR adapter

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Connector

    MicroDot

  • Polarity

    Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Cable length

    1.8m (5.91')

  • Cable diameter

    1.6mm (0.06")

  • Weight

    8.5g (0.30 oz) (incl. Cable and MicroDot connector)

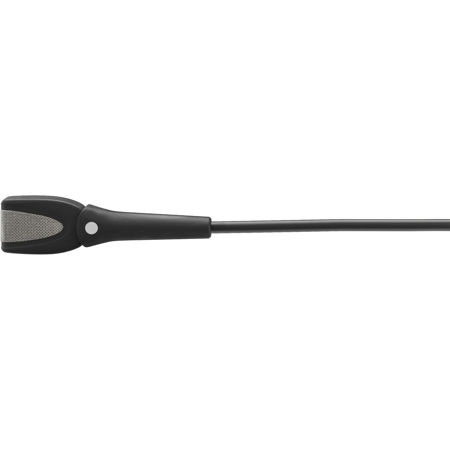

About DPA Microphones d:screet 4160

With the d:screet 4160 Slim Omnidirectional Microphone, you'll experience high-quality, professional audio recording in a compact and discreet design. This innovative microphone is perfect for film assignments, live performances, and any situation where a hidden microphone is needed.

The d:screet 4160 Slim features the same superior audio quality as the legacy d:screet 4060 Series Omni Mics, ensuring consistent and uniform sound across all DPA microphones. Its slim, flat design and perpendicular cable to the sound inlet allow for easy mounting and minimal footprint.

When paired with the detachable Button-Hole Mount or Concealer, this microphone becomes virtually invisible, making it an ideal choice for television and film applications. The Button-Hole Mount is designed with a small side entry pipe, allowing sound to directly enter the diaphragm through a button hole or similar, ensuring optimal sound capture.

This reliable microphone is equipped with a hardwired MicroDot connector, offering compatibility with a range of accessories and adapters for all professional wireless systems. This flexible adapter system allows for easy configuration and seamless integration with your existing equipment.

The d:screet 4160 Slim Omnidirectional Microphone is designed to handle sound pressure levels up to 134 dB before clipping occurs, making it suitable for applications where the sound source is more remote or dampened. Its omnidirectional sensitivity ensures natural and realistic sound capture from all directions, making it an excellent choice for recording ambient sounds or large sound sources like choirs.

Despite the potential for feedback in live situations, the d:screet 4160 Slim's equal frequency response and high sound pressure level handling make it a versatile addition to your audio toolbox. This durable microphone is available in a sleek black finish, adding a touch of professionalism to your audio equipment.

Experience the difference in audio quality and convenience with the d:screet 4160 Slim Omnidirectional Microphone, a testament to DPA's commitment to innovative, high-quality audio solutions.

DPA Microphones d:screet 4160 Features

  • High-quality, professional omnidirectional microphone for versatile audio recording
  • Innovative design with a hardwired MicroDot connector for broad compatibility
  • Concealable with detachable Button-Hole Mount or Concealer for discreet usage
  • Handles sound pressure levels up to 134 dB, suitable for remote or dampened sound sources
  • Offers natural, realistic sound capture from all directions
  • Available in a sleek, durable black finish for a professional aesthetic

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews and film.
  • Experience exceptional sound quality with the d:screet 4160's omnidirectional condenser capsule.
  • Achieve discreet, hands-free recording using the included button-hole mount for secure placement.
  • Enjoy wide compatibility; the MicroDot connector adapts easily to various wireless systems.
  • Benefit from low noise; this lavalier mic ensures clear recordings even in quiet environments.
  • Rely on the durable design of this DPA microphone for consistent performance in any setting.

What's in the box:

  • DPA Microphones d:screet 4160 Slim Omnidirectional Microphone with Hardwired MicroDot Connector
  • Button-Hole Mount
  • DPA Microphones 2 Year Limited Warranty
