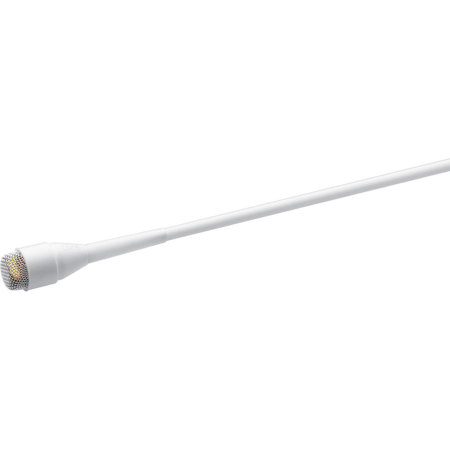

DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, White

SKU: DPA61OCCW03 MFR: 4061-OC-C-W03
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA omnidirectional lavalier microphone.
  • Achieve high-quality sound with a wide 20 Hz - 20 kHz frequency range.
  • Enjoy versatile connectivity with the hardwired 3-Pin LEMO Connector.
  • This miniature microphone is perfect for film, interviews, and broadcast.
  • Experience exceptional clarity, even in loud environments up to 144dB SPL.
  • Minimize noise with a low self-noise of only 26 dB(A) for clean recordings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet Core 4061 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 3-Pin LEMO Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

Models
DPA Microphones d:screet Core 4061 Mini Omni Mic, 3-Pin LEMO, Loud SPL, White
$625.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones MMB4066-C03 Miniature Omnidirectional Mic Boom, Brown
$624.95

Ships from Manufacturer

Usually ships within 1-2 Days. Please note: Your card will be charged when order is submitted to the vendor (usually within 24 hours).

Microphone Type--Headset
Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorLemo 3 pinLemo 3 pinLemo 3 pin
Application--Vocals

About DPA Microphones d:screet Core 4061

Before diving into the technical prowess of the d:screet Core 4061 Miniature Omnidirectional Microphone, it's essential to understand its lineage. Crafted with the meticulous engineering that DPA is renowned for, this microphone is a direct descendant of the groundbreaking d:screet 4060, which integrated top-tier technology from the realms of hearing aids and measurement microphones into a compact audio solution.

The d:screet Core 4061 stands out with its ability to handle loud sound pressure levels (SPLs), boasting a peak SPL tolerance of up to 144 dB before clipping occurs. This makes it an exceptional choice for capturing audio from high-volume sources like musical instruments and powerful vocals. Its lower sensitivity, approximately 10 dB less than the d:screet 4060, is particularly advantageous for discreet placements, such as on a theater performer's head or forehead, where the proximity to the sound source naturally increases the SPL.

This microphone's omnidirectional pickup pattern ensures a consistent and natural capture of sound from all directions, providing a realistic audio experience that cardioid microphones may not match. Omnidirectional mics like the d:screet Core 4061 are ideal for recording ambient sounds and large sound sources, such as choirs, due to their equal frequency response. While they may be prone to feedback in live settings, their resilience to wind, pop, and handling noise, along with the absence of proximity effect, make them a versatile tool in any audio professional's kit.

The d:screet Core 4061 is engineered for durability, featuring a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm, housed within DPA's unique Double Vent Protection System. This design offers exceptional resistance to humidity and sweat, ensuring reliable performance in the most challenging conditions. The microphone's cable is reinforced with Kevlar, providing robust protection against the rigors of daily use.

To tailor the microphone's acoustic response to specific applications, two interchangeable grids are provided. The Soft Boost Grid delivers a subtle 3 dB boost between 8-20 kHz, ideal for head-mounted scenarios or when a natural sound is desired. The High Boost Grid, on the other hand, offers a 10 dB boost around 12 kHz, perfect for chest placements. These grids are constructed from anodized stainless steel for durability and can be easily detached and cleaned.

The d:screet Core 4061 is available in four colors - black, brown, beige, and white - to blend seamlessly with various environments or clothing. For those requiring an even more rugged solution, a heavy-duty version is also available.

DPA's flexible adapter system ensures that the d:screet Core 4061 can be effortlessly integrated with a wide range of wireless systems. The microphone utilizes a MicroDot termination, allowing for the use of changeable adapters that maintain a secure and consistent connection with your chosen wireless brand. This versatility means that you are not confined to a single wireless system; adapters can be switched as needed without compromising sound quality.

For wired configurations, the d:screet Core 4061 is available with various connectors, including the hardwired 3-pin LEMO connector for Sennheiser systems, among others. XLR adapters are also available for those who prefer a traditional wired setup.

In summary, the d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, White, is a robust, versatile, and high-quality audio solution for professionals seeking pristine sound capture in demanding environments.

DPA Microphones d:screet Core 4061 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA omnidirectional lavalier microphone.
  • Achieve high-quality sound with a wide 20 Hz - 20 kHz frequency range.
  • Enjoy versatile connectivity with the hardwired 3-Pin LEMO Connector.
  • This miniature microphone is perfect for film, interviews, and broadcast.
  • Experience exceptional clarity, even in loud environments up to 144dB SPL.
  • Minimize noise with a low self-noise of only 26 dB(A) for clean recordings.

What's in the box:

  • DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
