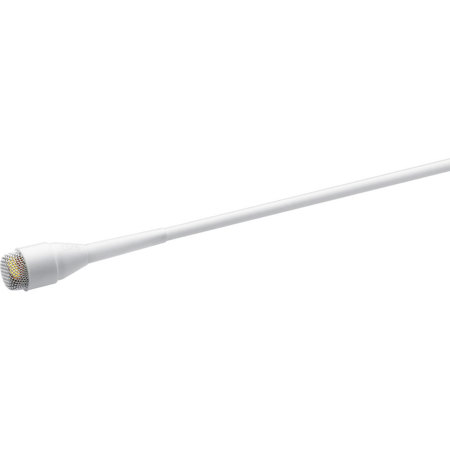

DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 1/8" Mini-Jack Connector, Loud SPL, Low-Sens, White

SKU: DPA61OCCW34 MFR: 4061-OC-C-W34
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality using this omnidirectional microphone for vlogging.
  • Achieve crystal-clear recording with the d:screet Core 4061's superior noise reduction.
  • Enjoy easy setup with the hardwired mini-jack connector; ideal for on-the-go recording.
  • Benefit from a wide dynamic range, capturing every nuance with this lavalier mic.
  • Rely on consistent performance with a stable connection for professional audio capture.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet Core 4061 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 1/8" Mini-Jack Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

Models
DPA Microphones d:screet Core 4061 Mini Omni Mic, Mini-Jack, Loud SPL, White
$625.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet 4060 Mini Omni Mic, Mini-Jack, Normal SPL, Brown
$529.95

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
Connector1/8" Mini Mono1/8" Mini Mono1/8" Mini Mono

About DPA Microphones d:screet Core 4061

If you're in search of a high-performance, versatile microphone, consider the d:screet Core 4061 Miniature Omnidirectional Microphone. This device, featuring a hardwired 1/8" mini-jack connector, is specifically designed to handle loud sound pressure levels (SPLs) and offers low sensitivity. It's an evolution of the original d:screet 4060, the first miniature microphone developed by DPA, incorporating technology previously exclusive to hearing aids and measurement microphones.

The d:screet Core 4061 is part of a series, each variant optimized for different applications based on sensitivity, voltage, and placement needs. Despite their differences, all microphones in the series share essential features, including a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique design, coupled with the Double Vent Protection System, enhances the microphone's resistance to humidity and sweat, making it ideal for use in challenging conditions.

The microphone's durability is further enhanced by a Kevlar-reinforced cable relief, designed to withstand everyday use in harsh environments. The acoustic response of the d:screet 4061 can be modified by selecting the appropriate grid for the task. Each microphone comes with two anodized stainless steel grids, offering a tough, scratch-resistant surface that can be detached and cleaned.

The d:screet 4061 Miniature Omnidirectional Microphone is acoustically identical to the d:screet 4060 but is adjusted to accommodate higher SPLs. It can handle up to 144 dB peak before clipping, making it an excellent choice for recording very loud sound sources, such as certain instruments and human voices. Its lower sensitivity makes it suitable for hidden applications, like being mounted on a theater performer's head or forehead.

This microphone is available in four colors: black, brown, beige, and white. An omnidirectional microphone, it picks up sound equally from all directions, providing a natural and realistic sound. Despite the potential for feedback in live situations, the equal frequency response and high SPL handling make this microphone a versatile addition to your audio toolbox.

The d:screet Core 4061 also features a flexible adapter system, allowing it to be easily configured with a wireless system. The unique MicroDot termination, coupled with a changeable adapter, ensures a secure configuration. This microphone is compatible with numerous professional wireless systems, offering you flexibility and affordability. Hardwired versions without the MicroDot connector are also available.

DPA Microphones d:screet Core 4061 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality using this omnidirectional microphone for vlogging.
  • Achieve crystal-clear recording with the d:screet Core 4061's superior noise reduction.
  • Enjoy easy setup with the hardwired mini-jack connector; ideal for on-the-go recording.
  • Benefit from a wide dynamic range, capturing every nuance with this lavalier mic.
  • Rely on consistent performance with a stable connection for professional audio capture.

What's in the box:

  • DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 1/8 " Mini-Jack Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
