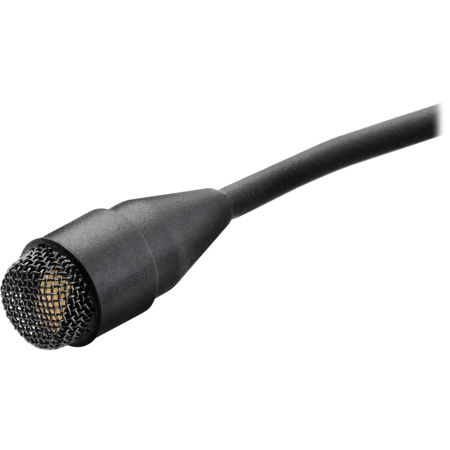

DPA Microphones d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector, Loud SPL and Low DC, Black

SKU: DPA63OCCB00 MFR: 4063-OC-C-B00
Earn VIP Reward Points

Key Features

  • Capture crystal-clear audio with this omnidirectional lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with the d:screet CORE 4063, ideal for film and broadcast.
  • Achieve high-SPL handling with a peak of 138dB, ensuring clear recording in loud environments.
  • Enjoy versatile connectivity with the MicroDot connector, compatible with wireless systems.
  • Benefit from a wide frequency range (20 Hz - 20 kHz) for natural, full-spectrum audio capture.
  • Minimize noise with a low equivalent noise level, ensuring clean and professional recordings.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet CORE 4063 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB:
    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
    High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))
    ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 135 dB SPL peak

  • Dynamic range

    Typ. 109 dB

  • Max. SPL

    Peak before clipping: 138 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300m (984.24')

  • Power supply (for full performance)

    For wireless systems: Min. 3 V - max. 50 V through DPA adapter
    With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    MicroDot

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Microphone length

    12.7mm (0.50")

  • Cable length

    1.8m (5.91')

  • Weight

    7.5g (0.26 oz) including Cable and MicroDot connector

  • UPC Code

    5713055011734

Models
DPA Microphones d:screet CORE 4063 Omni Mic, MicroDot, Loud SPL & Low DC, Black
$510.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet CORE 4062 Omni Mic with MicroDot, Extreme SPL, Black
$520.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet Core 4061 Mini Omni Mic with MicroDot, Loud SPL, White
$520.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorMicrodotMicrodotMicrodot

About DPA Microphones d:screet CORE 4063

From the innovative minds at DPA comes the d:screet CORE 4063 Miniature Omnidirectional Microphone, a high-quality, durable, and reliable audio recording device. This versatile microphone, available in black, beige, and white, is part of the renowned 4060 series, which includes the 4060, 4061, 4062, 4063, and 4071 Omni Miniature Mics. Each model in this series is meticulously designed to cater to specific application needs based on sensitivity, voltage, and placement requirements.

The d:screet CORE 4063 is a testament to DPA's commitment to innovation, as it incorporates the best technology previously exclusive to hearing aids and measurement microphones. This model, like all others in the series, features a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm, ensuring superior audio capture.

One of the standout features of this microphone is its unique Double Vent Protection System, which significantly enhances its resistance to humidity and sweat, making it ideal for use in challenging conditions. The microphone is also designed with a Kevlar-reinforced cable relief to withstand the everyday twists, bends, and pulls that come with use in harsh environments.

The d:screet CORE 4063 is acoustically identical to the d:screet 4060 Miniature Omnidirectional Microphones, but it stands out with its internal preamplifier designed for working with lower supply voltage. When used with the correct power source, this microphone can handle sound pressure levels up to 138 dB before clipping occurs.

This microphone also comes with two anodized stainless steel grids, which can be detached and cleaned. The pre-fitted Soft Boost Grid offers a 3 dB soft boost at 8-20 kHz, making it ideal for head-mounted applications or when a natural-sounding microphone is required. The High Boost Grid introduces a 10 dB soft boost around 12 kHz, perfect for chest-placement applications.

The d:screet CORE 4063 is equipped with a MicroDot connector, ensuring easy and secure connection to a recording device. This feature, combined with DPA's flexible adapter system, allows the microphone to be effortlessly configured with a wireless system, offering compatibility with a wide range of professional wireless systems.

In summary, the d:screet CORE 4063 Miniature Omnidirectional Microphone is a versatile, reliable, and high-quality audio recording device, designed to deliver superior performance in a variety of applications and environments.

DPA Microphones d:screet CORE 4063 Features

  • High-quality d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector
  • Innovative Double Vent Protection System for enhanced resistance to humidity and sweat
  • Kevlar-reinforced cable relief designed for durability in harsh environments
  • Acoustically identical to the d:screet 4060, but with an internal preamplifier for working with lower supply voltage
  • Includes two detachable and cleanable anodized stainless steel grids for versatile audio capture
  • Compatible with a wide range of professional wireless systems thanks to DPA's flexible adapter system

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture crystal-clear audio with this omnidirectional lavalier microphone, perfect for interviews.
  • Experience exceptional sound quality with the d:screet CORE 4063, ideal for film and broadcast.
  • Achieve high-SPL handling with a peak of 138dB, ensuring clear recording in loud environments.
  • Enjoy versatile connectivity with the MicroDot connector, compatible with wireless systems.
  • Benefit from a wide frequency range (20 Hz - 20 kHz) for natural, full-spectrum audio capture.
  • Minimize noise with a low equivalent noise level, ensuring clean and professional recordings.

What's in the box:

  • DPA Microphones d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
