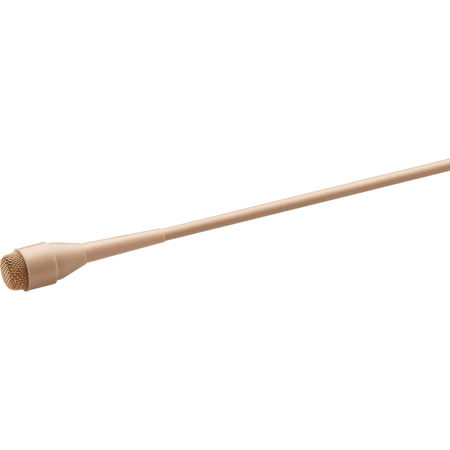

DPA Microphones d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector, Loud SPL and Low DC, Beige

SKU: DPA63OCCF00 MFR: 4063-OC-C-F00
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for film and broadcast.
  • Experience exceptional clarity; the omnidirectional mic ensures consistent sound pickup.
  • Enjoy low noise in recordings; ideal for critical applications needing high fidelity audio.
  • The beige, miniature mic discreetly captures speech for theater, interviews, and presentations.
  • Achieve optimal performance with wireless systems using the MicroDot lavalier microphone.
  • This durable lavalier microphone withstands demanding use, ensuring lasting reliability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet CORE 4063 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB:
    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
    High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))
    ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 135 dB SPL peak

  • Dynamic range

    Typ. 109 dB

  • Max. SPL

    Peak before clipping: 138 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300m (984.24')

  • Power supply (for full performance)

    For wireless systems: Min. 3 V - max. 50 V through DPA adapter
    With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    MicroDot

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Microphone length

    12.7mm (0.50")

  • Cable length

    1.8m (5.91')

  • Weight

    7.5g (0.26 oz) including Cable and MicroDot connector

  • UPC Code

    5713055015886

Models
DPA Microphones d:screet CORE 4063 Omni Mic, MicroDot, Loud SPL & Low DC, Beige
$510.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet CORE 4062 Omni Mic with MicroDot, Extreme SPL, Black
$520.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet Core 4061 Mini Omni Mic with MicroDot, Loud SPL, White
$520.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorMicrodotMicrodotMicrodot

About DPA Microphones d:screet CORE 4063

Bring professional-grade audio recording to your fingertips with the d:screet CORE 4063 Miniature Omnidirectional Microphone. This innovative device, developed by the reputable DPA Microphones, is designed to deliver high-quality, reliable, and versatile audio capture in a variety of settings.

The d:screet CORE 4063 is part of a series that includes the 4060, 4061, 4062, and 4071 Omni Miniature Mics. Each model in this series is tailored to meet specific application needs based on sensitivity, voltage, and placement requirements. They all stem from the original d:screet 4060, the first miniature microphone developed by DPA, utilizing top-tier technology previously exclusive to hearing aids and measurement microphones.

This durable microphone is designed to withstand harsh conditions, thanks to its 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. The unique Double Vent Protection System makes the microphone highly resistant to humidity and sweat, making it ideal for use in challenging environments.

The d:screet CORE 4063 is equipped with a Kevlar-reinforced cable relief, built to endure the constant twists, bends, and pulls that come with everyday use. It also features an acoustic response that can be modified by selecting the correct grid for the job. The microphone comes with two grids, the Soft Boost Grid and the High Boost Grid, both made of anodized stainless steel for a tough and scratch-resistant surface.

The d:screet 4063 is acoustically identical to the d:screet 4060 but is designed to work with transmitters providing only 3V bias voltage. It can handle sound pressure levels up to 138 dB before clipping occurs, ensuring clear and distortion-free audio even in noisy environments.

This omnidirectional microphone is designed to pick up sound equally from all directions, providing a natural and realistic sound. It's an excellent choice for capturing ambient sounds or miking large sound sources like choirs.

The d:screet CORE 4063 comes with a unique MicroDot termination and a changeable adapter for easy and effortless configuration with a wireless system. This flexible adapter system ensures secure and consistent connection to your system, making it a cost-effective and versatile addition to your audio toolbox.

Available in three colors: black, beige, and white, the d:screet CORE 4063 Miniature Omnidirectional Microphone is a testament to DPA Microphones' commitment to delivering innovative, high-quality, and durable audio equipment.

DPA Microphones d:screet CORE 4063 Features

  • High-quality miniature omnidirectional microphone by DPA Microphones, ideal for live performances, broadcasting, and sound reinforcement systems
  • Features a unique Double Vent Protection System for high resistance to humidity and sweat, perfect for challenging environments
  • Equipped with a Kevlar-reinforced cable relief, designed to withstand everyday use
  • Comes with two anodized stainless steel grids, the Soft Boost Grid and the High Boost Grid, for versatile audio capture
  • Designed to work with transmitters providing only 3V bias voltage, capable of handling sound pressure levels up to 138 dB before clipping occurs
  • Includes a unique MicroDot termination and a changeable adapter, ensuring easy and secure configuration with a wireless system

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for film and broadcast.
  • Experience exceptional clarity; the omnidirectional mic ensures consistent sound pickup.
  • Enjoy low noise in recordings; ideal for critical applications needing high fidelity audio.
  • The beige, miniature mic discreetly captures speech for theater, interviews, and presentations.
  • Achieve optimal performance with wireless systems using the MicroDot lavalier microphone.
  • This durable lavalier microphone withstands demanding use, ensuring lasting reliability.

What's in the box:

  • DPA Microphones d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
