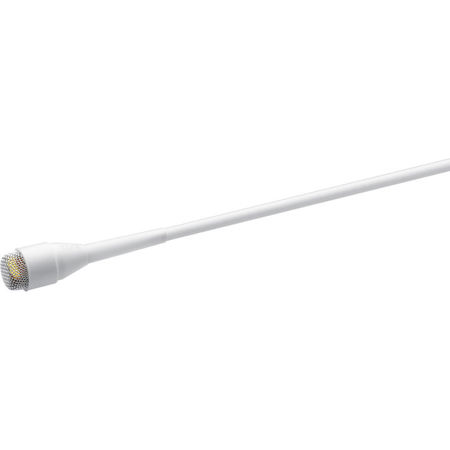

DPA Microphones d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector, Loud SPL and Low DC, White

SKU: DPA63OCCW00 MFR: 4063-OC-C-W00
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this omnidirectional lavalier microphone for clear recordings.
  • Achieve exceptional sound quality using the d:screet CORE 4063, ideal for interviews.
  • Enjoy a wide frequency range (20 Hz - 20 kHz) for natural, full-bodied sound reproduction.
  • Low noise levels ensure clean audio; perfect for film, broadcast, and stage applications.
  • The durable build of this DPA microphone ensures reliability for demanding environments.
  • Easy setup with MicroDot connector makes this lavalier mic great for on-the-go recording.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:screet CORE 4063 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB:
    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz
    High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))
    ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 135 dB SPL peak

  • Dynamic range

    Typ. 109 dB

  • Max. SPL

    Peak before clipping: 138 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300m (984.24')

  • Power supply (for full performance)

    For wireless systems: Min. 3 V - max. 50 V through DPA adapter
    With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    MicroDot

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Microphone length

    12.7mm (0.50")

  • Cable length

    1.8m (5.91')

  • Weight

    7.5g (0.26 oz) including Cable and MicroDot connector

Models
DPA Microphones d:screet CORE 4063 Omni Mic, MicroDot, Loud SPL & Low DC, White
$510.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet CORE 4062 Omni Mic with MicroDot, Extreme SPL, Black
$520.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

DPA Microphones d:screet Core 4061 Mini Omni Mic with MicroDot, Loud SPL, White
$520.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Polar PatternOmnidirectionalOmnidirectionalOmnidirectional
ConnectorMicrodotMicrodotMicrodot

About DPA Microphones d:screet CORE 4063

Just when you thought high-quality audio capture in challenging environments was unattainable, the d:screet CORE 4063 Miniature Omnidirectional Microphone emerges as a robust solution. This professional-grade microphone is part of the distinguished d:screet series, which includes the 4060, 4061, 4062, 4063, and 4071 Omni Miniature Mics, each precision-engineered for specific audio recording scenarios based on sensitivity, voltage requirements, and optimal placement.

The d:screet CORE 4063 is a testament to DPA's pioneering legacy, building upon the original d:screet 4060 - the first miniature microphone that incorporated advanced technology from hearing aids and measurement microphones. This model stands out for its ability to operate with transmitters that provide a lower bias voltage of only 3V, distinguishing it from its counterparts that typically require the more common 5V. This makes the d:screet 4063 the ideal choice for compatible transmitters, ensuring flawless performance even with reduced power supply.

Equipped with a high-performance pre-polarized condenser element measuring 5.4 mm in diameter and featuring a vertical diaphragm, the microphone is designed to capture sound with exceptional clarity. Its Double Vent Protection System offers outstanding resistance to humidity and sweat, making it a reliable option for live performances and outdoor recordings. The Kevlar-reinforced cable relief is another testament to its durability, engineered to endure the rigors of daily use in demanding environments.

The d:screet CORE 4063 is capable of handling extreme sound pressure levels up to 138 dB before clipping, ensuring that even the loudest audio sources are captured with precision. Available in three discreet colors - black, beige, and white - it seamlessly blends with various settings, and a heavy-duty version is also available for the most challenging conditions.

Understanding the importance of versatility, DPA has designed the microphone with a flexible adapter system. The unique MicroDot termination, paired with a range of changeable adapters, guarantees compatibility with numerous wireless systems from leading brands such as AKG, Audio-Technica, Sennheiser, Shure, and more. This adaptability means you can switch between wireless systems without compromising sound quality or incurring the cost of a new microphone.

The d:screet CORE 4063 also comes with two interchangeable grids that alter the acoustic response to suit different recording situations. The pre-fitted Soft Boost Grid provides a subtle 3 dB boost in the 8-20 kHz range, ideal for head-mounted applications and scenarios requiring a natural microphone sound. For chest placements, the High Boost Grid offers a 10 dB increase around 12 kHz, enhancing clarity and presence. Both grids are crafted from anodized stainless steel for durability and can be easily detached and cleaned.

As an omnidirectional microphone, the d:screet CORE 4063 captures sound with equal sensitivity from all directions, delivering a sound that is true to life and free from the proximity effect. It is less susceptible to wind, pop, and handling noise, making it a versatile addition to any audio professional's toolkit, whether for ambient sound recording or miking a large ensemble.

In summary, the d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector is a powerhouse of durability, flexibility, and high-fidelity audio capture, making it an indispensable tool for professionals in the field of sound recording and reinforcement.

DPA Microphones d:screet CORE 4063 Features

  • High-performance miniature omnidirectional microphone with MicroDot connector
  • Optimized for use with 3V bias voltage transmitters, handling SPL up to 138 dB
  • Features Double Vent Protection System for outstanding resistance to humidity and sweat
  • Includes two interchangeable grids for tailored acoustic response in various applications
  • Kevlar-reinforced cable relief built for durability in harsh environments
  • Compatible with a wide range of wireless systems through adaptable MicroDot termination

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Capture pristine audio with this omnidirectional lavalier microphone for clear recordings.
  • Achieve exceptional sound quality using the d:screet CORE 4063, ideal for interviews.
  • Enjoy a wide frequency range (20 Hz - 20 kHz) for natural, full-bodied sound reproduction.
  • Low noise levels ensure clean audio; perfect for film, broadcast, and stage applications.
  • The durable build of this DPA microphone ensures reliability for demanding environments.
  • Easy setup with MicroDot connector makes this lavalier mic great for on-the-go recording.

What's in the box:

  • DPA Microphones d:screet CORE 4063 Miniature Omnidirectional Microphone with MicroDot Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
  • DPA Microphones 2 Year Limited Warranty
