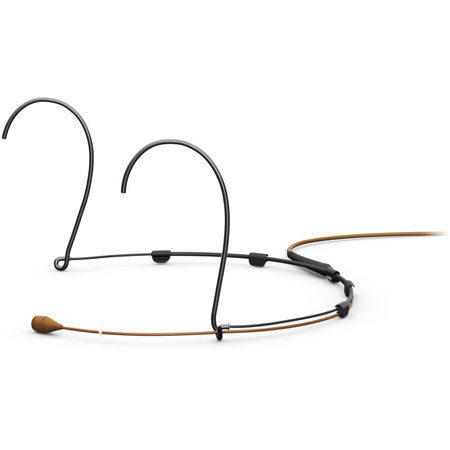

DPA Microphones d:fine Legacy 4066 Omnidirectional Headset Microphone with 3-Pin LEMO Connector, Small, Brown

SKU: DPA66LAC03LS MFR: 4066-OL-A-C03-LH-S
Earn VIP Reward Points

Key Features

  • Experience exceptional vocal clarity with this omnidirectional headset microphone.
  • Achieve pristine sound quality with the pre-polarized condenser microphone element.
  • Enjoy a comfortable, secure fit for stage performances or broadcast applications.
  • Capture every nuance with a wide frequency range of 20 Hz to 20 kHz for rich audio.
  • Minimize noise with a low equivalent noise level, ensuring clear recordings every time.
  • Rely on the durable design, perfect for demanding professional audio environments.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:fine Legacy 4066 Omni Headset Mic, 3-Pin LEMO, Small, Brown Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB (A) re. 20 MuPa (max. 28 dB (A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio (A-weighted), re. 1kHz at 1Pa

    Typ. 68 dB (A) (94 dB SPL)

  • Total harmonic distortion (THD)

    <1% THD up to 123 dB SPL peak, < 1% THD up to 120 dB SPL RMS sine

  • Dynamic range

    Typ. 97 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40Ohms

  • Cable drive capability

    Up to 300m (984')

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    3-Pin LEMO

  • Microphone diameter

    5.4mm (0.21")

  • Cable length

    1.2m (3.94')

  • Cable diameter

    1.6mm (0.06")

  • Polarity

    Positively increasing sound pressure produces positive going voltage on 3-Pin LEMO pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Weight

    14g (0.49 oz) including Cable and connector

About DPA Microphones d:fine Legacy 4066 Omni Headset Mic, 3-Pin LEMO, Small, Brown

Are you in search of a high-quality, professional-grade headset microphone that delivers pristine, transparent sound with ample headroom Look no further than the d:fine Legacy 4066 Omnidirectional Headset Microphone with 3-Pin LEMO Connector. This small, brown microphone has been the top choice for broadcasters, Broadway theaters, auditoriums, and lecture halls for years, thanks to its exceptional sound quality and robust durability.

The d:fine Legacy 4066 is renowned for its ability to work across a wide dynamic range while exhibiting low distortion across all sound pressure levels (SPLs). Its sensitivity of 6 mV/Pa perfectly matches the level of the human voice to the general input sensitivity of most wireless transmitters. When powered correctly, this microphone can handle high SPLs up to 144 dB before clipping occurs, ensuring your audio remains clear and distortion-free even in loud environments.

One of the standout features of this microphone is its omnidirectional polar pattern. This means it has sensitivity at all angles, picking up sound equally from all directions for a natural and realistic sound capture. This makes it an ideal choice for recording ambient sounds or miking large sound sources like choirs. While omnidirectional microphones can produce feedback in live situations, the d:fine Legacy 4066's close proximity to the sound source and equal frequency response make it a versatile addition to your audio toolbox.

Humidity, a common issue in theatrical applications, is no problem for this microphone. It's constructed with a double-vent protection system and a drop stopper on the microphone boom, and the materials inside the mic are water-resistant. These design elements make it highly resistant to failure due to humidity.

The d:fine Legacy 4066 also features a unique headset construction. You can detach the mic boom from the headset mount to switch it to either the left or right side and then reattach it. This flexibility extends to the microphone's modular adapter system, which fits most professional wireless systems. This means you're not tied to one wireless system and can switch your adapter as circumstances change, without incurring the cost of a new microphone or experiencing any loss or change in sound quality.

In conclusion, the d:fine Legacy 4066 Omnidirectional Headset Microphone with 3-Pin LEMO Connector is a reliable, versatile, and durable audio solution that delivers consistently clear and robust sound. Whether you're a broadcaster, a theater professional, or simply someone who values high-quality sound, this microphone is a worthy investment.

DPA Microphones d:fine Legacy 4066 Omni Headset Mic, 3-Pin LEMO, Small, Brown Features

  • Left- or Right-Ear Mounting
  • Humidity-Resistant Design
  • Silicone Hose-Covered Earhooks
  • 14 dB Increase in THD and Dynamic Range
  • Core Amplifier Increases Performance
  • High- and Soft-Boost Grids
  • Foam Windscreens

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience exceptional vocal clarity with this omnidirectional headset microphone.
  • Achieve pristine sound quality with the pre-polarized condenser microphone element.
  • Enjoy a comfortable, secure fit for stage performances or broadcast applications.
  • Capture every nuance with a wide frequency range of 20 Hz to 20 kHz for rich audio.
  • Minimize noise with a low equivalent noise level, ensuring clear recordings every time.
  • Rely on the durable design, perfect for demanding professional audio environments.

What's in the box:

  • DPA Microphones d:fine Legacy 4066 Omnidirectional Headset Microphone with 3-Pin LEMO
  • High-Boost Grid
  • Soft-Boost Grid
  • 5x Foam Windscreens
  • DPA Microphones 2 Year Limited Warranty
