The omnidirectional polar pattern in the d:fine CORE 4066 microphone allows for sound pickup from all directions. This feature provides extremely natural and realistic sound, making it suitable for live performances and studio recordings.
The d:fine CORE 4066 microphone features a double-vent protection system and a drop stopper on the microphone boom, making it resistant to humidity. Additionally, the internal components of the microphone are water-resistant.
The TA4F mini-XLR connector in the d:fine CORE 4066 microphone ensures a stable, low-impedance signal. It also allows for easy connection to a wide range of professional audio equipment.
The CORE by DPA technology in the d:fine CORE 4066 microphone offers a 14 dB increase in dynamic range. This technology reduces distortion from whisper-quiet to loud, intense sound levels.
The IP58 certification of the d:fine CORE 4066 microphone indicates its durability. The microphone features a water-repellant nano-coating, hermetic sealing of the sensitive amplifier, and dual gold plating of the diaphragm, making it resistant to harsh conditions.
Review Summary
Omnidirectional
Pressure
Pre-polarized condenser
20 Hz - 20 kHz
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Typ. 26 dB (A) re. 20 MuPa (max. 28 dB (A))
Typ. 38 dB (max. 40 dB)
Typ. 68 dB (A) (94 dB SPL)
<1% THD up to 137 dB SPL peak
Typ. 111 dB
144 dB
30 - 40Ohms
Up to 300m (984')
For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance
TA4F Mini-XLR
5.4mm (0.21")
1.2m (3.94')
1.6mm (0.06")
Positively increasing sound pressure produces positive going voltage on TA4F Mini-XLR pin
-40 to 45 deg. C (-40 to 113 deg. F)
Up to 90%
14g (0.49 oz) including Cable and connector

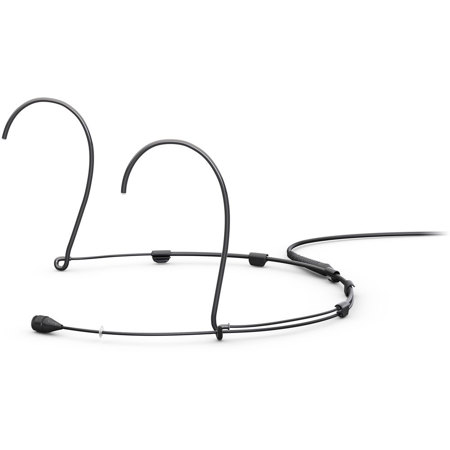

Bring professional-grade audio to your performances or recordings with the d:fine CORE 4066 Omnidirectional Headset Microphone. This high-quality, durable microphone is a trusted choice among broadcasters, theater professionals, and lecturers for its exceptional sound clarity and robust construction.
Engineered for vocal precision, the d:fine CORE 4066 captures clean, transparent sound with ample headroom. Its condenser microphone capsule ensures natural sound reproduction, making it an ideal choice for both live performances and studio recordings. The omnidirectional polar pattern offers sound pickup from all directions, providing a realistic and immersive audio experience.
The microphone's unique design features a detachable mic boom, allowing you to switch it between the left and right side as per your convenience. It also boasts a double-vent protection system and a drop stopper on the microphone boom, making it resistant to humidity - a common issue in theatrical applications. The internal components are water-resistant, further enhancing its durability.
The d:fine CORE 4066 is equipped with a TA4F mini-XLR connector, offering reliable, low-impedance signal and compatibility with a wide range of professional audio equipment. This versatile microphone can handle high sound pressure levels up to 144 dB SPL before clipping occurs, matching the level of the human voice to the general input sensitivity of most wireless transmitters.
Featuring CORE by DPA technology, this microphone offers a 14 dB increase in dynamic range, reducing distortion from whisper-quiet to loud, intense sound levels. It is also IP58 certified, thanks to its water-repellant nano-coating, hermetic sealing of the sensitive amplifier, and dual gold plating of the diaphragm.
The d:fine CORE 4066 comes with a modular adapter system, providing flexibility and compatibility with all leading wireless mic solutions like Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom, and more. This ingenious adapter system ensures your investment in superior sound quality is protected for years to come.
Experience the natural, realistic sound of an omnidirectional microphone with the d:fine CORE 4066. Despite the potential for feedback in live situations, its close proximity to the sound source, ability to handle extremely high sound pressure levels, and resistance to wind, pop, or handling noise make it a versatile addition to your audio toolbox.
