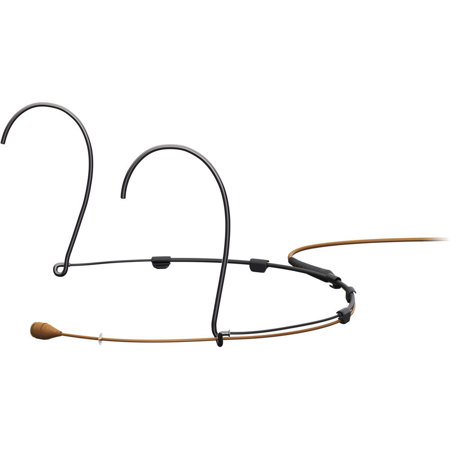

DPA Microphones d:fine CORE 4066 Omnidirectional Headset Microphone with TA4F Mini-XLR Connector, Small, Brown

SKU: DPA66OAC10LS MFR: 4066-OC-A-C10-LH-S
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this DPA omnidirectional headset microphone.
  • Achieve optimal sound for presenters with this TA4F Mini-XLR headset mic.
  • Enjoy exceptional comfort and secure fit for broadcast use with this headset.
  • Ensure speech clarity in schools using this high-quality DPA microphone.
  • Benefit from outstanding noise cancellation, ideal for live performances.
  • Capture pristine sound with a wide 20 Hz - 20 kHz frequency response range.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:fine CORE 4066 Omni Headset Mic, TA4F Mini-XLR, Small, Brown Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB (A) re. 20 MuPa (max. 28 dB (A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio (A-weighted), re. 1kHz at 1Pa

    Typ. 68 dB (A) (94 dB SPL)

  • Total harmonic distortion (THD)

    <1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40Ohms

  • Cable drive capability

    Up to 300m (984')

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    TA4F Mini-XLR

  • Microphone diameter

    5.4mm (0.21")

  • Cable length

    1.2m (3.94')

  • Cable diameter

    1.6mm (0.06")

  • Polarity

    Positively increasing sound pressure produces positive going voltage on TA4F Mini-XLR pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Weight

    14g (0.49 oz) including Cable and connector

About DPA Microphones d:fine CORE 4066 Omni Headset Mic, TA4F Mini-XLR, Small, Brown

This microphone offers clean and transparent sound quality with lots of headroom. For years, this has been the chosen headset mic for broadcasters as well as theaters on Broadway, as well as in many auditorium and lecture halls. This is due to its pristine sound and durability.

• Pristine sound and durability
• Resistant to humidity
• Double-vent protection system
• Available in three colors and two sizes
• Modular adapter system fits most professional wireless systems

The headset construction is unique. You can detach the mic boom from the headset mount to switch it to either the left or right side and then reattach it. Humidity, often an issue in theatrical applications, is not a problem. This microphone is constructed with a double-vent protection system and a drop stopper on the microphone boom. Also, the materials inside the mic are water resistant. These design elements make it very difficult for the microphone to fail due to humidity.

The microphone's sensitivity is 6 mV/Pa. This matches the level of the human voice to the general input sensitivity of most wireless transmitters. If powered correctly, the microphone will be able to handle very high sound pressure levels up to 144 dB SPL before clipping occurs.

CORE by DPA
If you need to squeeze a little more performance out of your mics, choose CORE. The d:fine CORE 4066 gets a 14 dB increase in dynamic range and from a whisper to a scream reduces the general distortion.

IP58 certified
All CORE by DPA technology microphones are IP58 certified. This durability is achieved through a number of defense mechanisms:

• Water-repellant nano-coating of the cover and housing
• Hermetic sealing of the sensitive amplifier at the core of the mic
• Dual gold plating of the diaphragm

Adapter system gives you flexibility
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

The d:fine, d:screet and d:vote series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

A bit about omnis
An omnidirectional microphone has sensitivity at all angles - in principle picking up sound equally from all directions. This gives you extremely natural and realistic sound compared to a cardioid mic. Omni mics are often used for picking up ambient sounds, as well as miking a large sound source such as a choir in a recording situation. Unfortunately, due to their pickup pattern, omnis can also produce a lot of feedback in live situations.

Nonetheless, we recommend that you try a DPA omni first because, when used close to the sound source, the equal frequency response makes these mics a flexible addition in your audio toolbox. It will often give a more natural sound, it can handle extremely high sound pressure levels, it does not suffer from proximity effect and is not as sensitive to wind, pop or handling noise.

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this DPA omnidirectional headset microphone.
  • Achieve optimal sound for presenters with this TA4F Mini-XLR headset mic.
  • Enjoy exceptional comfort and secure fit for broadcast use with this headset.
  • Ensure speech clarity in schools using this high-quality DPA microphone.
  • Benefit from outstanding noise cancellation, ideal for live performances.
  • Capture pristine sound with a wide 20 Hz - 20 kHz frequency response range.

What's in the box:

  • DPA Microphones d:fine CORE 4066 Omnidirectional Headset Microphone with TA4F Mini-XLR
  • High-Boost Grid
  • Soft-Boost Grid
  • 5x Foam Windscreens
  • DPA Microphones 2 Year Limited Warranty
