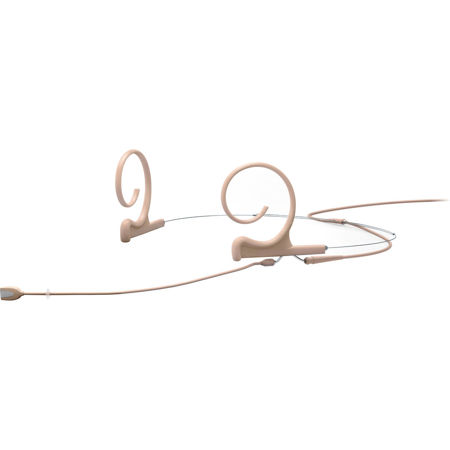

DPA Microphones d:fine CORE 4166 Slim Flex Omnidirectional Headset Microphone with MicroDot Connector, 90mm Boom, Beige

SKU: DPA66OFF00M MFR: 4166-OC-F-F00-MH
Earn VIP Reward Points

Key Features

  • Experience exceptional sound quality with this DPA headset microphone for clear audio.
  • The omnidirectional mic ensures consistent audio pickup, perfect for dynamic presentations.
  • Enjoy comfortable, all-day wear with the slim, flexible design of this beige headset mic.
  • Achieve superior vocal clarity with the d:fine CORE technology in this DPA microphone.
  • Ideal for presenters, this microdot headset offers discreet, hands-free operation.
  • Benefit from excellent noise rejection, ensuring your voice is the focus, always professional.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DPA Microphones d:fine CORE 4166 Omni Headset Mic, MicroDot, 90mm Boom, Beige Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    20 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    From MicroDot: 30 - 40Ohms
    From DAD6001-BC: 100Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR Adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR Adapter

  • Common mode rejection ratio

    > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

  • Power supply (for full performance)

    Min. 5 V to max. 50 V through DPA adapter for wireless systems

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Connector

    MicroDot Connector

  • Polarity

    +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Electromagnetic compatibility

    Fully compatible

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Microphone length

    Boom length: 90mm (3.54")

  • Cable length

    1.3m (4.27')

  • Cable diameter

    1.6mm (0.06")

  • Weight

    Microphone boom: 0.8g (0.03 oz)
    Earhook: 1.1g (0.04 oz)
    Cable: 6.6g (0.23 oz)
    Total: 8.5g (0.30 oz)

About DPA Microphones d:fine CORE 4166 Omni Headset Mic, MicroDot, 90mm Boom, Beige

Under the umbrella of professional audio equipment, the d:fine CORE 4166 Slim Flex Omnidirectional Headset Microphone stands out with its MicroDot Connector and 90mm Boom in a sleek beige color. This condenser microphone merges the iconic sound quality of the d:fine 4066 Omnidirectional Capsule with a feather-light and adaptable headset system.

Designed for effortless and quick adjustments, the d:fine 4166 microphone delivers a pristine, transparent sound quality with ample headroom. The capsule mirrors the type found in the d:fine 4066, but is uniquely attached to a replaceable boom arm. Like all microphones in the d:fine range, it offers precise, natural voice clarity and high SPL capabilities. It allows users to speak or sing into the microphone without any hint of distortion.

Available in earset (d:fine 4166) or headset (d:fine 4266) variants, this microphone caters to diverse needs. The earset version is perfect for quick and easy miking, such as in conferences, while the headset version provides a secure fit for active performance situations. Both versions are ergonomically designed for comfort and ease of use.

The d:fine 4166 microphone adjusts to fit any ear size and head shape, mounts securely, and remains virtually invisible. By rotating the boom and the ear hook, the microphone can be easily used on either the left or the right ear. The MicroDot connector splits the cable from the microphone boom, allowing for quick replacement of broken cables or wireless connectors.

The microphone is powered by CORE by DPA technology, which minimizes distortion and enhances clarity and openness. From whispers to screams, the d:fine CORE 4166 microphone ensures a 14 dB increase in dynamic range.

All CORE by DPA microphones, including this one, are IP58 certified, ensuring durability through water-repellant nano-coating, hermetic sealing of the sensitive amplifier, and dual gold plating of the diaphragm.

The omnidirectional feature of this microphone ensures sensitivity at all angles, capturing sound equally from all directions for a natural and realistic audio experience. Despite the potential for feedback in live situations, the equal frequency response of this microphone when used close to the sound source makes it a versatile tool in your audio arsenal.

The d:fine CORE 4166 microphone's adapter system offers flexibility and affordability. It works with all leading wireless mic solutions, including Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom, and more. This unique adapter system by DPA Microphones safeguards your investment in superior sound for years to come.

DPA Microphones d:fine CORE 4166 Omni Headset Mic, MicroDot, 90mm Boom, Beige Features

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to the left or right
  • Minimal visual impact
  • Resistant to humidity
  • Flexible adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience exceptional sound quality with this DPA headset microphone for clear audio.
  • The omnidirectional mic ensures consistent audio pickup, perfect for dynamic presentations.
  • Enjoy comfortable, all-day wear with the slim, flexible design of this beige headset mic.
  • Achieve superior vocal clarity with the d:fine CORE technology in this DPA microphone.
  • Ideal for presenters, this microdot headset offers discreet, hands-free operation.
  • Benefit from excellent noise rejection, ensuring your voice is the focus, always professional.

What's in the box:

  • DPA Microphones d:fine CORE 4166 Slim Flex Omnidirectional Headset Microphone with MicroDot Connector
  • 3x Foam Windscreens
  • ID Rings and Cover
  • Clothing Clip
  • DPA Microphones 2 Year Limited Warranty
