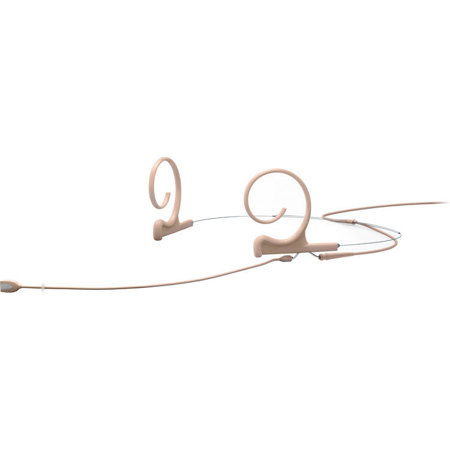

DPA Microphones d:fine CORE 4166 Slim Flex Omnidirectional Headset Microphone with Hardwired 3-Pin LEMO Connector, 110mm Boom, Beige

SKU: DPA66OFF03L MFR: 4166-OC-F-F03-LH
Earn VIP Reward Points

Key Features

  • Experience exceptional sound quality with this DPA omnidirectional headset microphone.
  • Achieve crystal-clear vocal capture with the d:fine CORE 4166 headset microphone.
  • Enjoy comfortable, hands-free use, ideal for presentations and stage performances.
  • The slim flex design and beige color ensure a discreet, professional appearance.
  • Benefit from superior noise cancellation for clear audio in any environment.
  • Rely on the durable construction for consistent performance, gig after gig.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DPA Microphones d:fine CORE 4166 Omni Headset Mic, 3-Pin LEMO, 110mm Boom, Beige Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    20 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    From MicroDot: 30 - 40Ohms
    From DAD6001-BC: 100Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR Adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR Adapter

  • Common mode rejection ratio

    > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

  • Power supply (for full performance)

    Min. 5 V to max. 50 V through DPA adapter for wireless systems

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Connector

    Hardwired 3-Pin LEMO Connector

  • Polarity

    +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Electromagnetic compatibility

    Fully compatible

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Microphone length

    Boom length: 110mm (4.33")

  • Cable length

    1.3m (4.27')

  • Cable diameter

    1.6mm (0.06")

  • Weight

    Microphone boom: 0.8g (0.03 oz)
    Earhook: 1.1g (0.04 oz)
    Cable: 6.6g (0.23 oz)
    Total: 8.5g (0.30 oz)

About DPA Microphones d:fine CORE 4166 Omni Headset Mic, 3-Pin LEMO, 110mm Boom, Beige

Make your performances and presentations stand out with the exceptional audio clarity of the d:fine CORE 4166 Slim Flex Omnidirectional Headset Microphone. This premium condenser microphone features the renowned d:fine 4066 Omnidirectional Capsule, delivering a sound that is both clean and transparent, with ample headroom to handle the loudest of speakers or singers without distortion.

Crafted for versatility and comfort, the d:fine CORE 4166 is equipped with a slim, lightweight headset that is both quick to adjust and secure for active use. The microphone's design ensures a discreet, barely-there feel, while providing natural voice intelligibility and the ability to handle high sound pressure levels (SPL) with ease.

The interchangeable boom arm of the d:fine CORE 4166 allows for precise positioning, ensuring that the microphone captures your voice accurately. The 110mm boom length is the standard choice, catering to a wide range of applications and head sizes. The microphone's flexibility extends to its use on either the left or right ear, thanks to the rotatable boom and ear hook.

At the core of this microphone is the innovative CORE by DPA technology, which significantly reduces distortion across all sound levels, from a soft whisper to a powerful scream. This results in an increase of 14 dB in dynamic range and an even more open and clear sound that cannot be fully appreciated through specifications alone.

The d:fine CORE 4166 is not only sonically superior but also boasts an IP58 certification, ensuring durability against the elements. This is achieved through a water-repellent nano-coating, hermetic sealing of the amplifier, and dual gold plating of the diaphragm, making it resilient in any environment.

Omnidirectional microphones like the d:fine CORE 4166 capture sound with equal sensitivity from all directions, offering a realistic and natural sound quality. While omni mics can be prone to feedback in live situations, the close proximity use of the d:fine CORE 4166 minimizes this risk, making it a versatile tool for both ambient sound capture and focused audio recording.

The d:fine CORE 4166's adaptability is further enhanced by its compatibility with a wide range of wireless systems. The microphone's adapter system allows for easy and cost-effective switching between different systems, ensuring that your investment in high-quality sound is protected for years to come. Compatible with industry leaders like Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom, and more, the d:fine CORE 4166 offers unparalleled flexibility for professionals seeking the best in audio performance.

DPA Microphones d:fine CORE 4166 Omni Headset Mic, 3-Pin LEMO, 110mm Boom, Beige Features

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to the left or right
  • Minimal visual impact
  • Resistant to humidity
  • Flexible adapter system fits most professional wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience exceptional sound quality with this DPA omnidirectional headset microphone.
  • Achieve crystal-clear vocal capture with the d:fine CORE 4166 headset microphone.
  • Enjoy comfortable, hands-free use, ideal for presentations and stage performances.
  • The slim flex design and beige color ensure a discreet, professional appearance.
  • Benefit from superior noise cancellation for clear audio in any environment.
  • Rely on the durable construction for consistent performance, gig after gig.

What's in the box:

  • DPA Microphones d:fine CORE 4166 Slim Flex Omnidirectional Headset Microphone with Hardwired 3-Pin LEMO Connector
  • 3x Foam Windscreens
  • ID Rings and Cover
  • Clothing Clip
  • DPA Microphones 2 Year Limited Warranty
