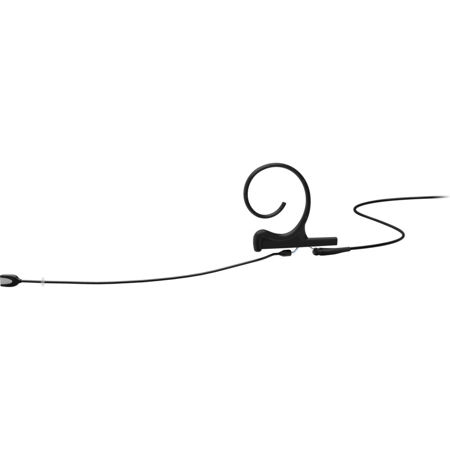

DPA Microphones d:fine CORE 4188 Slim Directional Flex One-Ear Earset Microphone with TA4F Mini-XLR Connector, 120mm Boom, Black

SKU: DPA88DCFB1LE MFR: 4188-DC-F-B10-LE
Earn VIP Reward Points

Key Features

  • Experience exceptional sound quality with this DPA earset microphone, perfect for clear vocal capture.
  • Achieve superior noise cancellation; ideal for presenters in noisy environments needing crystal-clear audio.
  • Enjoy all-day comfort with the slim, lightweight design of this DPA microphone; great for extended use.
  • This durable earset microphone features a robust build, ensuring reliable performance for every presentation.
  • Benefit from seamless connectivity with the TA4F Mini-XLR connector, offering easy setup with wireless systems.
  • Capture every nuance with the cardioid polar pattern, providing focused audio and minimizing background noise.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DPA Microphones d:fine CORE 4188 Earset Mic, TA4F Mini-XLR, 120mm, Black Specifications

  • Directional pattern

    Cardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB, Near field 2-3 cm (0.8 - 1.2"): 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))
    ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL

    Peak before clipping: 144 dB

  • Impedance

    40Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR Adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR Adapter

  • Common mode rejection ratio (CMRR)

    > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

  • Power supply (for full performance)

    Min. 5 V to max. 50 V through DPA adapter for wireless systems

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Connector

    TA4F Mini-XLR

  • Polarity

    +V at TA4F Mini-XLR pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Electromagnetic compatibility (EMC)

    Fully compatible

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Cable length

    1.3m (4.27')

  • Cable diameter

    1.6mm (0.06")

  • Boom Length

    120mm (4.72")

  • Weight

    Single Ear:
    Microphone boom: 1g (0.04 oz)
    Earhook: 1g (0.04 oz)
    Cable: 8g (0.28 oz)
    Total: 10g (0.35 oz)

About DPA Microphones d:fine CORE 4188 Earset Mic, TA4F Mini-XLR, 120mm, Black

Where superior audio quality meets sleek design, the d:fine CORE 4188 Slim Directional Flex One-Ear Earset Microphone stands out. This high-performance microphone, equipped with a TA4F Mini-XLR Connector and a 120mm Boom, is a perfect blend of the renowned 4088 Directional Capsule and the lightweight, flexible d:fine Earset system.

Ideal for both spoken word and vocal performance applications, this microphone delivers accurate and natural voice intelligibility. Its high-SPL capabilities ensure that users can speak or sing into the mic without any hint of distortion. The d:fine 4188 Directional Earset Microphone excels in high-SPL situations, offering excellent off-axis rejection. It efficiently suppresses distant sound sources, making it a top choice for demanding live performance environments where background noise and feedback are concerns.

This microphone is not only lightweight and flexible but also easy to mount on either the left or right side. Its minimal visual impact and resistance to humidity make it a reliable choice for various environments. The flexible adapter system is compatible with most professional wireless systems, adding to its versatility.

The 4088 Directional Capsule is designed to tackle high-SPL events and feedback issues with ease. Its bass response is optimized for linearity at 2-3 cm from the sound source, ensuring a prominent bass roll-off at greater distances. This feature is crucial for the rejection of background noise and avoiding feedback. The microphone capsule is also optimized for low distortion and humidity resistance.

The d:fine 4188 is available as an earset or headset, both designed for comfort and ease of use. The earset variants are quick to put on, making them ideal for conferences, while the headset variants provide a secure fit for active performance situations. The microphone adjusts to fit any ear size and head shape, mounts securely, and is barely visible.

The microphone's connector splits the cable from the microphone boom, allowing for quick swapping of broken cables or wireless connectors. The boom length is available in two sizes, 120mm and 100mm, to accommodate different applications and head sizes. The 120mm boom is the standard length that fits most people.

The d:fine CORE 4188 Directional Earset boasts a 14 dB increase in dynamic range, delivering an even more open and clear sound. All CORE by DPA technology microphones are IP58 certified, ensuring durability through water-repellant nano-coating, hermetic sealing of the sensitive amplifier, and dual gold plating of the diaphragm.

The microphone's cardioid or directional pattern offers the most sensitivity at the front and least sensitivity from the sides and back. This feature, along with the unique DPA capsule technique, offers perfect sound stages by reducing sensitivity to side or rear angles without colorizing the sound.

The adapter system of this microphone offers flexibility and affordability. It allows you to switch your adapter as circumstances change, protecting your investment in sound quality for years to come. The d:fine CORE 4188 Slim Directional Flex One-Ear Earset Microphone is compatible with all leading wireless mic solutions, including Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom, and many more. This ingenious adapter system by DPA Microphones is truly one of a kind in the industry.

DPA Microphones d:fine CORE 4188 Earset Mic, TA4F Mini-XLR, 120mm, Black Features

  • High-performance directional earset microphone with TA4F Mini-XLR Connector and 120mm Boom
  • Offers accurate and natural voice intelligibility with high-SPL capabilities for distortion-free sound
  • Excellent off-axis rejection efficiently suppresses distant sound sources, ideal for live performance environments
  • Lightweight, flexible, and resistant to humidity with easy mounting on either left or right side
  • Features a cardioid pattern for maximum sensitivity at the front and minimal sensitivity from the sides and back
  • Compatible with all leading wireless mic solutions, including Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom, and more

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience exceptional sound quality with this DPA earset microphone, perfect for clear vocal capture.
  • Achieve superior noise cancellation; ideal for presenters in noisy environments needing crystal-clear audio.
  • Enjoy all-day comfort with the slim, lightweight design of this DPA microphone; great for extended use.
  • This durable earset microphone features a robust build, ensuring reliable performance for every presentation.
  • Benefit from seamless connectivity with the TA4F Mini-XLR connector, offering easy setup with wireless systems.
  • Capture every nuance with the cardioid polar pattern, providing focused audio and minimizing background noise.

What's in the box:

  • DPA Microphones d:fine CORE 4188 Slim Directional Flex One-Ear Earset Microphone with TA4F Mini-XLR Connector
  • 4x Foam Windscreens
  • 5x ID Rings
  • Makeup-Cover
  • Clothing Clip
  • Makeup Filter
  • DPA Microphones 2 Year Limited Warranty
