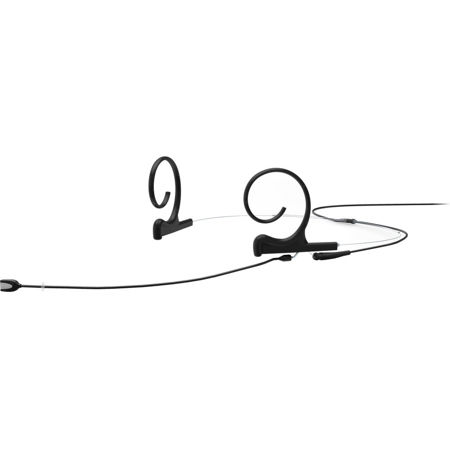

DPA Microphones d:fine CORE 4188 Slim Directional Flex Two-Ear Headset Microphone with 1/8" Mini-Jack Connector, 120mm Boom, Black

SKU: DPA88DCFB34L MFR: 4188-DC-F-B34-LH
Earn VIP Reward Points

Key Features

  • Experience exceptional sound quality with this DPA headset microphone for clear audio.
  • Achieve superior noise cancellation, ideal for presenters in noisy environments.
  • Enjoy comfortable, all-day wear with the slim, flexible two-ear headset design.
  • Ensure durability with high-quality materials, perfect for rigorous daily use.
  • Benefit from seamless connectivity with the 1/8" mini-jack connector for versatility.
  • Capture crystal-clear vocals with the cardioid polar pattern, minimizing background noise.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:fine CORE 4188 Directional Headset Mic, Mini-Jack, 120mm,Black Specifications

  • Directional pattern

    Cardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB, Near field 2-3 cm (0.8 - 1.2"): 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))
    ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL

    Peak before clipping: 144 dB

  • Impedance

    40Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR Adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR Adapter

  • Common mode rejection ratio (CMRR)

    > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

  • Power supply (for full performance)

    Min. 5 V to max. 50 V through DPA adapter for wireless systems

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Connector

    1/8" Mini-Jack

  • Polarity

    +V at Mini-Jack pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Electromagnetic compatibility (EMC)

    Fully compatible

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4mm (0.21")

  • Cable length

    1.3m (4.27')

  • Cable diameter

    1.6mm (0.06")

  • Boom Length

    120mm (4.72")

  • Weight

    Dual Ear:
    Microphone boom: 1g (0.04 oz)
    Earhook: 3g (0.11 oz)
    Cable: 8g (0.28 oz)
    Total: 12g (0.42 oz)

About DPA Microphones d:fine CORE 4188 Directional Headset Mic, Mini-Jack, 120mm,Black

With the integration of the renowned 4088 Directional Capsule, the d:fine CORE 4188 Slim Directional Flex Two-Ear Headset Microphone stands out as a premium audio solution for both spoken word and vocal performance applications. Engineered for clarity and precision, this headset microphone delivers accurate voice intelligibility and is capable of handling very high sound pressure levels (SPL) without distortion. Whether speaking or singing, the d:fine 4188 maintains a clear and natural sound.

The microphone's exceptional off-axis rejection is particularly beneficial in high-SPL environments, effectively minimizing background noise and reducing the risk of feedback, making it an ideal choice for live performances and presentations. Its directional design ensures focused audio capture, with a bass response that is most linear at a 2-3 cm (approximately 1") distance from the sound source, thereby enhancing noise rejection capabilities.

Crafted for comfort and minimal visibility, the d:fine CORE 4188 headset is both lightweight and flexible. It can be easily mounted on either the left or right side, adapting seamlessly to the wearer's preference. The headset's discreet profile allows for an unobtrusive presence, ensuring that the focus remains on the performance or presentation.

Durability is a key feature of this microphone, with resistance to humidity being a cornerstone of its design. The d:fine CORE 4188 benefits from DPA's CORE technology, which extends the dynamic range by 14 dB and improves sound openness and clarity. Furthermore, the microphone is IP58 certified, ensuring robust protection against dust and moisture through a water-repellent nano-coating, hermetic sealing of the amplifier, and dual gold plating of the diaphragm.

The cardioid polar pattern of the microphone is heart-shaped, offering maximum sensitivity at the front while significantly reducing pickup from the sides and rear. DPA's unique capsule technique ensures that off-axis sounds are not colored but simply less sensitive, allowing for a more authentic sound stage.

The d:fine CORE 4188 comes with a flexible adapter system, compatible with most professional wireless systems, providing versatility and ease of use across various setups. This system allows for quick and easy cable or connector replacements, safeguarding your investment and ensuring consistent sound quality.

In summary, the d:fine CORE 4188 Slim Directional Flex Two-Ear Headset Microphone with a 120mm boom is a robust, professional-grade microphone that offers pristine audio quality, adaptability, and resilience, making it a top choice for performers and speakers seeking reliability and excellence in their audio equipment.

DPA Microphones d:fine CORE 4188 Directional Headset Mic, Mini-Jack, 120mm,Black Features

  • The microphone combines the renowned 4088 Directional Capsule with the d:fine Headset system, delivering exceptional sound quality that captures accurate and natural voice intelligibility.
  • The microphone can handle very high sound pressure levels (SPL) without distortion, allowing users to speak and sing into the microphone without compromising audio quality
  • The microphone provides excellent off-axis rejection, effectively suppressing distant sound sources. This is particularly useful in high-SPL situations and helps reduce background noise and feedback concerns

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience exceptional sound quality with this DPA headset microphone for clear audio.
  • Achieve superior noise cancellation, ideal for presenters in noisy environments.
  • Enjoy comfortable, all-day wear with the slim, flexible two-ear headset design.
  • Ensure durability with high-quality materials, perfect for rigorous daily use.
  • Benefit from seamless connectivity with the 1/8" mini-jack connector for versatility.
  • Capture crystal-clear vocals with the cardioid polar pattern, minimizing background noise.

What's in the box:

  • DPA Microphones d:fine CORE 4188 Slim Directional Flex Two-Ear Headset Microphone with 1/8 " Mini-Jack Connector
  • 4x Foam Windscreens
  • 5x ID Rings
  • Makeup-Cover
  • Clothing Clip
  • Makeup Filter
  • DPA Microphones 2 Year Limited Warranty
