DPA Microphones ANT202A Active Wideband UHF Directional Antenna w/BNC Connector
See all DPA Microphones items
New Arrival

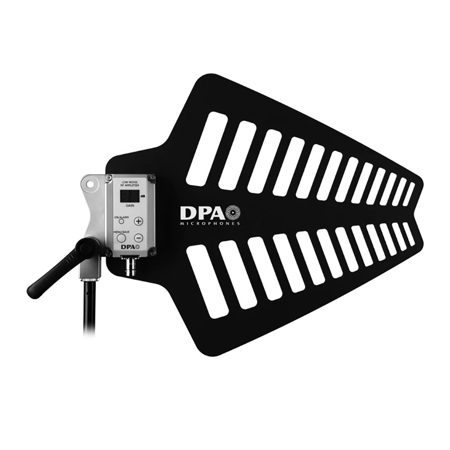

DPA Microphones ANT202A Active Wideband UHF Directional Antenna with BNC Connector

SKU: DPAANT202A MFR: ANT202A
Be the first to review this itemAsk a Question
$640.00
OR
$107/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Boost your microphone's signal strength with this active wideband UHF directional antenna.
  • Experience reliable audio transmission with a broad RF frequency range of 470-870MHz.
  • Enjoy versatile compatibility thanks to the included BNC connector for seamless integration.
  • Benefit from easy installation with a 5/8" mounting option, perfect for any setup.
  • Ensure consistent performance with durable epoxy fiberglass construction and a sleek matte finish.
  • Optimize your sound with selectable booster gain (0/15 dB), providing superior signal control.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$119.99
3-Year Adorama Protect$154.99
5-Year Adorama Protect$269.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DPA Microphones ANT202A Specifications

  • Material

    Epoxy fiberglass (copper - clad)

  • Finishing

    Black matte

  • Rated output impedance

    50 Ohm

  • RF Frequency Range

    470-870MHz (420-1300MHz bypassed)

  • SWR

    < 1:1.5; typ. = 1:1.4

  • Polarization

    Vertical

  • Radiation

    Directional

  • Connector

    BNC

  • Booster Gain

    0/15 dB (typical), selectable in step of 1 dB (+/- button)

  • Booster Gain Flatness

    +/- 1 dB, in the whole working window

  • OIP3

    +43 dBm (Output 3 Degree order Intercept Point) typical

  • Mounting

    5/8" with worth or 3/8" with adapter

  • Power Supply

    +12 V, 100mA

  • Dimensions (H x W x D)

    10.87 x 13.23 x 2.40" (276 x 336 x 61mm)

  • Weight

    18.8 oz (535g)

  • UPC Code

    5713055033583

About DPA Microphones ANT202A

A wideband UHF antenna LPDA (log periodic dipole Array) that enhances reception providing approximately 6dB of gain with a typical beamwidth of 90 Degree . Adjustable booster gain in 1 dB steps from 0 to +15 dB.

DPA Microphones ANT202A Features

  • Working bandwidth of 470-870MHz
  • LED display & function buttons
  • Sturdy metal body construction and epoxy protection on cable joints
  • Optimized 6dB gain with a typical beam-width of 90 degrees
  • Very high linear booster (OIP3 40 dBm) with 15 dB gain settable in one step dB step

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Boost your microphone's signal strength with this active wideband UHF directional antenna.
  • Experience reliable audio transmission with a broad RF frequency range of 470-870MHz.
  • Enjoy versatile compatibility thanks to the included BNC connector for seamless integration.
  • Benefit from easy installation with a 5/8" mounting option, perfect for any setup.
  • Ensure consistent performance with durable epoxy fiberglass construction and a sleek matte finish.
  • Optimize your sound with selectable booster gain (0/15 dB), providing superior signal control.

What's in the box:

  • DPA Microphones ANT202A Active Wideband UHF Directional Antenna with BNC Connector
  • DPA Microphones 2 Year Limited Warranty
