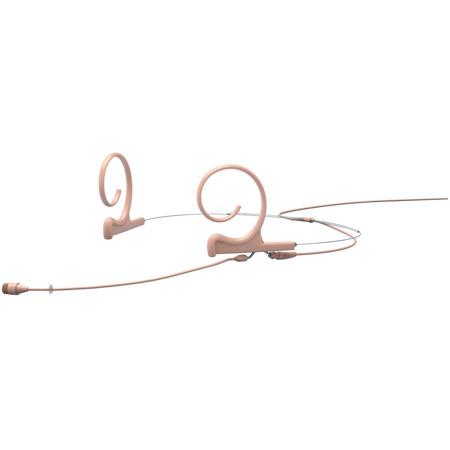

DPA Microphones d:fine FIO66F00-M2 Dual-Ear Omnidirectional Headset Mic, Beige
See all DPA Microphones items

DPA Microphones d:fine 66 Dual-Ear Omnidirectional Headset Microphone with Microdot Termination Connector and 90mm Medium Boom, Adaptor Required, 20Hz-20kHz, Beige

SKU: DPAFI66F00M2
(2)

This item is no longer available.

Recommended Alternatives

DPA Microphones : Picture 1 regular
DPA Microphones 4060 CORE+ Miniature Omni Lav Mic with 3-Pin LEMO,
$690.00
DPA Microphones 4060 CORE+ Microphone: Picture 1 regular
DPA Microphones 4060 CORE+ Omnidirectional Boundary Layer Mic, Silver and Black
$945.00
DPA Microphones : Picture 1 regular
DPA Microphones d:screet CORE 6060 Omni Mic with 3-Pin LEMO, Normal SPL, Beige
$795.00
DPA Microphones : Picture 1 regular
DPA Microphones d:screet CORE 6060 Omni Mic, TA4F Mini-XLR, Normal SPL, Beige
$795.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DPA Microphones d:fine FIO66F00-M2 Dual-Ear Omnidirectional Headset Mic, Beige Specifications

  • Directional characteristics

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    Soft boost grid (+/-2dB): 20Hz-20kHz, 3dB soft boost at 8-20kHz
    Optional High boost grid (+/-2dB): 20Hz-20kHz, 10dB boost at 12kHz

  • Sensitivity

    Nominal +/- 3dB at 1kHz: 6mV/Pa
    -44dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 26dB (A) re. 20½Pa
    Maximum: 28dB (A)

    ITU-R BS.468-4:
    Typical: 38dB
    Maximum: 40dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 68dB(A)

  • Total Harmonic Distortion (THD)

    <1 % up to 123dB SPL peak
    <1 % up to 120dB SPL RMS sine

  • Dynamic range

    Typical: 97dB

  • Max. SPL

    Peak before clipping: 144dB

  • Output impedance

    From MicroDot: 30-40Ohms
    From DAD6001-BC: 100Ohms

  • Cable drive capability

    Up to 984' / 299.93m with DAD6001-BC XLR adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR adapter

  • Common Mode Rejection Ratio (CMRR)

    > 60dB from 50Hz to 15kHz with DAD6001-BC XLR adapter

  • Power supply

    For wireless systems: Min. 5V through DPA adapter

  • Current consumption

    Typ. 1.5mA (microphone)
    3.5mA with DAD6001-BC XLR adapter

  • Connector

    Microdot termination

  • Polarity

    +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Capsule diameter

    0.2" / 5.08mm

  • Mic boom length

    100mm / 3.94"

  • Cable length

    4.1' / 1.25m

  • Cable diameter

    0.06" / 1.52mm

  • Dimensions (L x Dia.)

    Microphone: 10 x 5mm / 0.39 x 0.20"

  • Weight

    Microphone boom: 1g / 0.04oz
    Earhook: 1g / 0.04oz
    Cable: 8g / 0.28oz
    Total: 10g / 0.35oz

About DPA Microphones d:fine FIO66F00-M2 Dual-Ear Omnidirectional Headset Mic, Beige

Perfect for performers in motion, the d:fine omni headset mic, d:fine 66, uses a sturdy, comfortable dual-ear headset that is available in black, brown or beige. The 4066 capsule is optimized for high speech intelligibility, low distortion and humidity resistance and can be mounted on booms of 90 or 110 mm lengths. Designed for professional use, the connector splits the cable from the microphone boom allowing for quick swapping of broken cables and/or wireless connectors. An optional high boost grid is available.

DPA Microphones d:fine FIO66F00-M2 Dual-Ear Omnidirectional Headset Mic, Beige Features

  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Pristine audio quality
  • Rejects background noise
  • Adapts to all pro wireless systems

What's in the box:

  • DPA Microphones d:fine 66 Dual-Ear Omnidirectional Headset Microphone with Microdot Termination
  • Cable Clip
  • 5x Color-Coded Identification Rings
  • 3x DUA0531 Windscreens
  • Carry Box
  • Soft-Boost Grid
  • DPA Microphones 2 Year Limited Warranty
