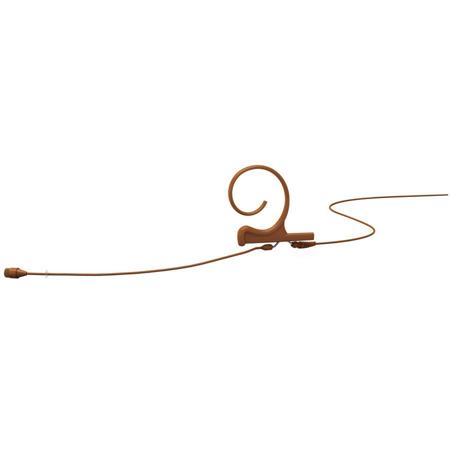

DPA Microphones d:fine 66 Single-Ear Omnidirectional Headset Microphone with Hardwired 3-Pin LEMO Connector and 110mm Long Boom, 20Hz-20kHz, Brown

SKU: DPAFIO66C03 MFR: 4266-OL-F-C03-LE
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with this DPA headset microphone, perfect for presenters.
  • Enjoy hands-free convenience with the single-ear design, ideal for active speakers.
  • Capture every nuance with the omnidirectional mic, ensuring consistent sound pickup.
  • Achieve exceptional vocal clarity with a wide 20Hz-20kHz frequency response.
  • Rely on robust Sennheiser wireless systems compatibility for seamless integration.
  • Ensure long-lasting performance with a durable, lightweight headset microphone design.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:fine FIO66C03 Single-Ear Omnidirectional Headset Mic, Brown Specifications

  • Compatibility

    Senneheiser Wireless Systems

  • Directional characteristics

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    Soft boost grid (+/-2dB): 20Hz-20kHz, 3dB soft boost at 8-20kHz
    Optional High boost grid (+/-2dB): 20Hz-20kHz, 10dB boost at 12kHz

  • Sensitivity

    Nominal +/- 3dB at 1kHz: 6mV/Pa
    -44dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 26dB (A) re. 20½Pa
    Maximum: 28dB (A)

    ITU-R BS.468-4:
    Typical: 38dB
    Maximum: 40dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 68dB(A)

  • Total Harmonic Distortion (THD)

    <1 % up to 123dB SPL peak
    <1 % up to 120dB SPL RMS sine

  • Dynamic range

    Typical: 97dB

  • Max. SPL

    Peak before clipping: 144dB

  • Output impedance

    From MicroDot: 30-40Ohms
    From DAD6001-BC: 100Ohms

  • Cable drive capability

    Up to 984' / 299.93m with DAD6001-BC XLR adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR adapter

  • Common Mode Rejection Ratio (CMRR)

    > 60dB from 50Hz to 15kHz with DAD6001-BC XLR adapter

  • Power supply

    For wireless systems: Min. 5V through DPA adapter

  • Current consumption

    Typ. 1.5mA (microphone)
    3.5mA with DAD6001-BC XLR adapter

  • Connector

    Hardwired 3-pin LEMO

  • Polarity

    +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Capsule diameter

    0.2" / 5.08mm

  • Mic boom length

    120mm / 4.72"

  • Cable length

    4.1' / 1.25m

  • Cable diameter

    0.06" / 1.52mm

  • Dimensions (L x Dia.)

    Microphone: 10 x 5mm / 0.39 x 0.20"

  • Weight

    Microphone boom: 1g / 0.04oz
    Earhook: 1g / 0.04oz
    Cable: 8g / 0.28oz
    Total: 10g / 0.35oz

About DPA Microphones d:fine FIO66C03 Single-Ear Omnidirectional Headset Mic, Brown

The d:fine 66 Headset Microphone combines the legendary 4066 omnidirectional capsule with the lightweight and flexible d:fine Headset system.

The d:fine Headsets features:
• Pristine audio quality
• Easy single-ear or dual-ear mounting
• Minimal visual impact
• Adapts to all pro wireless systems

Available in black, beige and brown, d:fine has been ergonomically designed to fit easily and seamlessly. It will adjust to fit any ear size and head shape while mounting securely and hardly visible. Just by rotating the boom and the earhook, the microphone can be moved from left to right ear or into the optimum position. Staying true to the DPA legacy, d:fine offers accurate, natural voice intelligibility and very high SPL capabilities - users can both speak and sing into the mic with no hint of distortion. d:fine 66 is available with single- or dual-ear mounts. The dual-ear mount is dedicated for more active situations and will be safe in even the most rigorous and energetic performance applications.

Boom lengths
Three omnidirectional boom lengths are available to accommodate different applications and head sizes: 110 mm (4.3 in), 90 mm (3.5 in), 40 mm (1.6 in).

Cables
A service connector splits the cable from the microphone boom and allows for quick exchange of cable lengths/colors/connectors and is valuable for servicing broken cables.

Accessories
The d:fine mic with boom, earhook and cable is delivered in a neat, roadworthy box with room for accessories like transmitters and batteries. The DPA accessory line includes power supplies and adapters or cables with fixed connectors (MicroDot, 3-pin Lemo, TA4F Mini-XLR, Mini-Jack).

DPA Microphones d:fine FIO66C03 Single-Ear Omnidirectional Headset Mic, Brown Features

  • The d:fine Headsets are engineered to deliver pristine audio quality, ensuring that your voice is accurately captured and reproduced.
  • These headsets provide the convenience of single-ear or dual-ear mounting configurations, catering to various preferences and applications
  • With an emphasis on minimal visual impact, these headsets seamlessly integrate into the wearer's appearance
  • The d:fine Headsets are meticulously designed to adapt seamlessly to a wide range of professional wireless system

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this DPA headset microphone, perfect for presenters.
  • Enjoy hands-free convenience with the single-ear design, ideal for active speakers.
  • Capture every nuance with the omnidirectional mic, ensuring consistent sound pickup.
  • Achieve exceptional vocal clarity with a wide 20Hz-20kHz frequency response.
  • Rely on robust Sennheiser wireless systems compatibility for seamless integration.
  • Ensure long-lasting performance with a durable, lightweight headset microphone design.

What's in the box:

  • DPA Microphones d:fine 66 Single-Ear Omnidirectional Headset Microphone with Hardwired 3-Pin LEMO Connector
  • Cable Clip
  • 5x Color-Coded Identification Rings
  • 3x DUA0531 Windscreens
  • Carry Box
  • Soft-Boost Grid
  • DPA Microphones 2 Year Limited Warranty
