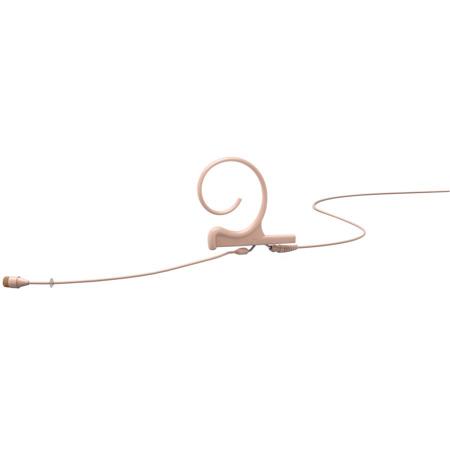

DPA Microphones d:fine 66 Single-Ear Omnidirectional Headset Microphone with Microdot Termination Connector and 90mm Medium Boom, Adaptor Required, 20Hz-20kHz, Beige

SKU: DPAFIO66F00M MFR: 4266-OL-F-F00-ME
Earn VIP Reward Points

Key Features

  • Experience pristine audio with this DPA d:fine 66 omnidirectional headset microphone.
  • Achieve exceptional vocal clarity with this headset microphone's wide 20Hz-20kHz range.
  • Enjoy hands-free convenience; ideal for presentations, theater, and broadcast applications.
  • The beige, single-ear design offers a discreet, comfortable fit for extended use.
  • Capture every nuance; the omnidirectional polar pattern ensures consistent sound pickup.
  • Microdot termination offers flexible connectivity with various wireless microphone systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

DPA Microphones d:fine FIO66F00-M Single-Ear Omnidirectional Headset Mic, Brown Specifications

  • Directional characteristics

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    Soft boost grid (+/-2dB): 20Hz-20kHz, 3dB soft boost at 8-20kHz
    Optional High boost grid (+/-2dB): 20Hz-20kHz, 10dB boost at 12kHz

  • Sensitivity

    Nominal +/- 3dB at 1kHz: 6mV/Pa
    -44dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 26dB (A) re. 20½Pa
    Maximum: 28dB (A)

    ITU-R BS.468-4:
    Typical: 38dB
    Maximum: 40dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 68dB(A)

  • Total Harmonic Distortion (THD)

    <1 % up to 123dB SPL peak
    <1 % up to 120dB SPL RMS sine

  • Dynamic range

    Typical: 97dB

  • Max. SPL

    Peak before clipping: 144dB

  • Output impedance

    From MicroDot: 30-40Ohms
    From DAD6001-BC: 100Ohms

  • Cable drive capability

    Up to 984' / 299.93m with DAD6001-BC XLR adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR adapter

  • Common Mode Rejection Ratio (CMRR)

    > 60dB from 50Hz to 15kHz with DAD6001-BC XLR adapter

  • Power supply

    For wireless systems: Min. 5V through DPA adapter

  • Current consumption

    Typ. 1.5mA (microphone)
    3.5mA with DAD6001-BC XLR adapter

  • Connector

    Microdot termination

  • Polarity

    +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Capsule diameter

    0.2" / 5.08mm

  • Mic boom length

    100mm / 3.94"

  • Cable length

    4.1' / 1.25m

  • Cable diameter

    0.06" / 1.52mm

  • Dimensions (L x Dia.)

    Microphone: 10 x 5mm / 0.39 x 0.20"

  • Weight

    Microphone boom: 1g / 0.04oz
    Earhook: 1g / 0.04oz
    Cable: 8g / 0.28oz
    Total: 10g / 0.35oz

About DPA Microphones d:fine FIO66F00-M Single-Ear Omnidirectional Headset Mic, Brown

Just imagine the perfect blend of comfort, durability, and high-quality audio performance. The d:fine 66 Single-Ear Omnidirectional Headset Microphone is exactly that. This professional-grade headset microphone, available in versatile shades of black, brown, or beige, is designed with a unique single-ear mount that can be conveniently oriented on either the left or right side, according to the user's preference.

The d:fine 66 headset microphone is equipped with a 90mm medium boom, offering optimal positioning for superior sound capture. The heart of this microphone is DPA's legacy 4066 capsule, renowned for its transparent operation. It provides high headroom and output, specifically optimized for the input sensitivity of most wireless transmitters, ensuring seamless integration with your existing audio equipment.

One of the standout features of the d:fine 66 omnidirectional headset microphone is its resistance to humidity. This makes it a reliable choice for outdoor events or environments where moisture might be a concern. The microphone comes with a soft boost grid and five windscreens for enhanced audio clarity, even in windy conditions. For those seeking an even higher level of sound enhancement, an optional high boost grid is available.

In summary, the d:fine 66 Single-Ear Omnidirectional Headset Microphone with Microdot Termination Connector is a robust, versatile, and high-performing audio solution, designed to meet the demands of professional audio applications.

DPA Microphones d:fine FIO66F00-M Single-Ear Omnidirectional Headset Mic, Brown Features

  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience pristine audio with this DPA d:fine 66 omnidirectional headset microphone.
  • Achieve exceptional vocal clarity with this headset microphone's wide 20Hz-20kHz range.
  • Enjoy hands-free convenience; ideal for presentations, theater, and broadcast applications.
  • The beige, single-ear design offers a discreet, comfortable fit for extended use.
  • Capture every nuance; the omnidirectional polar pattern ensures consistent sound pickup.
  • Microdot termination offers flexible connectivity with various wireless microphone systems.

What's in the box:

  • DPA Microphones d:fine 88 Single-Ear Directional Headset Microphone with Microdot Termination
  • Cable Clip
  • 5x Color-Coded Identification Rings
  • 3x DUA0531 Windscreens
  • Carry Box
  • Soft-Boost Grid
  • DPA Microphones 2 Year Limited Warranty
