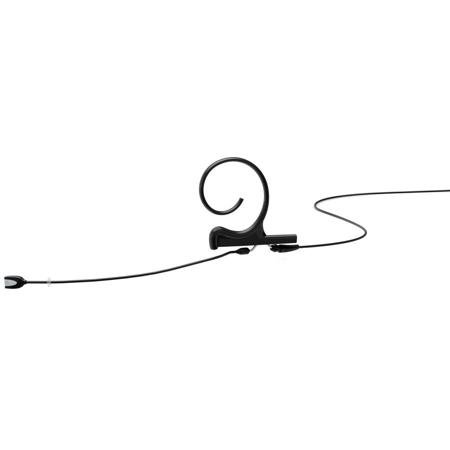

DPA Microphones d:fine FIOB00-M Single-Ear Omnidirectional Headset Mic, Black
See all DPA Microphones items

DPA Microphones d:fine Single-Ear Omnidirectional Headset Microphone with Microdot Termination and 90mm Medium Boom, Adaptor Required, 20Hz-20kHz, Black

SKU: DPAFIOB00M
(2)

This item is no longer available.

Recommended Alternatives

DPA Microphones 4060 CORE+ Microphone: Picture 1 regular
DPA Microphones 4060 CORE+ Omnidirectional Boundary Layer Mic, Silver and Black
$945.00
DPA Microphones : Picture 1 regular
DPA Microphones d:screet CORE 6060 Omni Mic with 3-Pin LEMO, Normal SPL, Black
$795.00
DPA Microphones : Picture 1 regular
DPA Microphones d:screet CORE 6060 Omni Mic, TA4F Mini-XLR, Normal SPL, Black
$795.00
DPA Microphones : Picture 1 regular
DPA Microphones d:screet CORE 6060 Omni Mic, 3.5mm Locking, Normal SPL, Black
$795.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2018-07-02T11:27:19

Rated 5 out of 5

Best Mic in the Industry!

DPA is the best sound mic. Love them!

Rodney S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DPA Microphones d:fine FIOB00-M Single-Ear Omnidirectional Headset Mic, Black Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure or pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20Hz-20kHz
    20Hz-20kHz with 3dB soft boost at 8-15kHz

  • Sensitivity

    Nominal +/- 3dB at 1kHz: 6mV/Pa
    -44dB re. 1V/Pa

  • Equivalent noise level

    A-Weighted:
    Typical: 26dB (A) re. 20½Pa
    Maximum: 28dB (A)

    ITU-R BS.468-4:
    Typical: 38dB
    Maximum: 40dB

  • S/N ratio

    (A-weighted) re. 1kHz at 1Pa (94dB SPL): Typ. 68dB(A)

  • Total Harmonic Distortion (THD)

    <1 % up to 123dB SPL peak
    <1 % up to 120dB SPL RMS sine

  • Dynamic range

    Typical: 97dB

  • Max. SPL

    Peak before clipping: 144dB

  • Output impedance

    From MicroDot: 30-40Ohms
    From DAD6001-BC: 100Ohms

  • Cable drive capability

    Up to 984' / 299.93m with DAD6001-BC XLR adapter

  • Output balance principle

    Signal balanced with DAD6001-BC XLR adapter

  • Common Mode Rejection Ratio (CMRR)

    > 60dB from 50Hz to 15kHz with DAD6001-BC XLR adapter

  • Power supply

    Min. 5V to max. 50V through DPA adapter for wireless systems
    48V phantom power +/-4V with DAD6001-BC XLR adapter

  • Current consumption

    Typ. 1.5mA (microphone)
    3.5mA with DAD6001-BC XLR adapter

  • Connector

    Microdot termination

  • Polarity

    +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter)

  • Temperature range

    -40 to 45 deg. C / -40 to 113 deg. F

  • Relative Humidity (RH)

    Up to 90%

  • Electro Magnetic Compatibility (EMC)

    Fully compatible

  • Capsule diameter

    0.2" / 5.08mm

  • Mic boom length

    90mm / 3.54"

  • Cable length

    4.3' / 1.31m

  • Cable diameter

    0.06" / 1.52mm

  • Dimensions (H x W x D)

    Microphone head: 0.37 x 0.21 x 0.11" / 9.40 x 5.33 x 2.79mm

  • Weight

    Microphone boom: 0.8g / 0.03oz
    Earhook: 1.1g / 0.04oz
    Cable: 6.6g / 0.23oz
    Total: 8.5g / 0.30oz

About DPA Microphones d:fine FIOB00-M Single-Ear Omnidirectional Headset Mic, Black

FEATURED REVIEWS

Best Mic in the Industry!

By Rodney S.

DPA is the best sound mic. Love them!

The d:fine omnidirectional single-ear headset microphone offers accurate, natural voice intelligibility and very high SPL handling making it the perfect choice for use in broadcast, live and conference applications. Users can adjust the d:fine for left or right ear placement by simply rotating the boom on the single-ear hook. The d:fine mic comes with boom, cable and accessories like foam windscreens and make-up cover.

DPA Microphones d:fine FIOB00-M Single-Ear Omnidirectional Headset Mic, Black Features

  • Pristine audio quality
  • Easy single-ear or dual-ear mounting
  • Minimal visual impact
  • Adapts to all pro wireless systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Pristine audio quality
  • Rejects background noise
  • Adapts to all pro wireless systems

What's in the box:

  • DPA Microphones d:fine Single-Ear Omnidirectional Headset Microphone with Microdot Termination
  • Cable Clip
  • Make-up Cover/Capsule Protection Cap
  • 5x DUA0585 Identification Rings
  • 4x DUA0531 Windscreens
  • Carry Box
  • DPA Microphones 2 Year Limited Warranty
