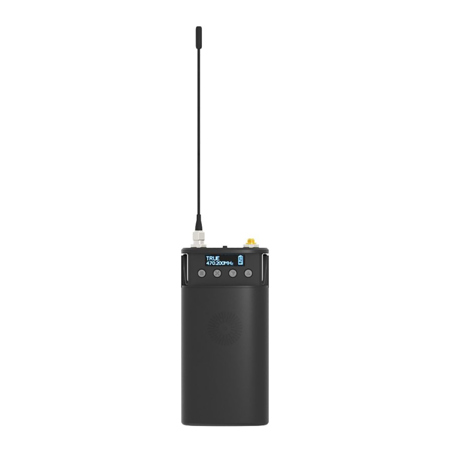

DPA Microphones N-BP1 N-Series Digital Bodypack Transmitter with MicroLock Connector

SKU: DPANBP190B MFR: N-BP1-90-B
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with a 126 dB dynamic range for pristine audio capture.
  • Enjoy reliable wireless performance with an impressive 330' working range for various venues.
  • Benefit from over 8 hours of battery life, ensuring extended use for long events or shoots.
  • The robust zinc alloy construction provides exceptional durability for professional applications.
  • Achieve seamless integration using the MicroLock connector for secure microphone attachment.
  • Quickly set up your audio with user-friendly controls for efficient operation in any setting.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DPA Microphones N-BP1 Specifications

  • Color

    Black

  • Material

    Zinc alloy

  • Frequency response

    20 - 20 kHz ( +/-1 dB)

  • RF Frequency Range

    470 - 870MHz

  • RF Tuning Steps

    25 kHz

  • Battery Runtime at 10 mW

    >8 hours

  • Audio Input Impedance

    MicroLock, N-BP1-90 - 5 kOhm

  • RF Sensitivity

    -96 dBm at 10-5 BER

  • Audio Polarity

    Positively increasing sound pressure produces positive going voltage on relevant audio outputs

  • Radio Frequency Power

    1 mW, 5 mW, 10 mW, 20 mW, 50 mW

  • Working Range

    330' (100m) Range depends on the RF environment, i.e. absorption, reflection and interference

  • Audio Dynamic Range (system) analog

    126 dB

  • Audio Dynamic Range (system) Digital

    126 dB

  • Audio Frequency Response

    20 - 20 kHz ( +/-1 dB)

  • Audio Bias Voltage

    5 Volts DC

  • Latency

    <2.9 ms

  • Radio Frequency Bandwidth

    470 - 870MHz

  • Max Input Level < 1% THD @ 1 kHz

    1.8 Vrms

  • Operating Temperature

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Storage Temperature

    4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C) Without batteries installed

  • Digital Audio Trim

    -20 dB to +40 dB on the receiver side, selectable in increments of 1 dB

  • Audio Input Connector

    MicroLock, N-BP1-90 - 2-wire input

  • Antenna Connector Type

    SMA

  • Antenna Type

    1/4 wave

  • Occupied Bandwidth

    < 200 kHz

  • Battery

    LR6 AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Dimensions (H x W x D)

    3.4 x 2.1 x 0.9" (87 x 53 x 24mm)

  • Weight

    5.4 oz (153g)

  • UPC Code

    5713055032999

About DPA Microphones N-BP1

N-Series uniquely designed bodypack transmitters are lightweight and formed to match the contours of the human body for comfortable long-term use.

High dynamic range
To get the highest possible dynamic range the N-Series uses stacked converter technology and optimized circuitry around the input stage and A/D conversion. This is how the system offers the best audio performance.

Having a higher dynamic range means that you do not have to dial in a gain or amplification on the transmitter. Therefore, there is no need to set the gain on the transmitter. In addition, as the system is digital, optimum RF signal is obtained without having to secure maximum modulation. The original signal is preserved throughout the system.

It is possible to adjust the level coming out of the receiver per channel, but this is done in the digital domain, i.e., it is an offset of the incoming signal and thus referred to as digital TRIM.

Audio levels and headroom
The bodypack transmitters have plenty of headroom, so there is no need to adjust input gain or the like. For this reason, you cannot adjust the audio levels on the transmitters.

It is, however, possible to change the level via an offset of the signal to balance sources with each other, but this is all done in the digital domain and thus referred to as digital TRIM via a knob on the receiver.

The analog outputs (if installed) allow users to adjust the analog reference to suit the system that the signal is being fed into. This is all done via the Receiver Menu.

Transmission power
Bodypacks can broadcast with a range of effects: 1 mW, 5 mW, 10 mW, 20 mW, 50 mW.

DPA Microphones N-BP1 Features

  • Wide frequency range: from 470MHz to 870MHz
  • Contoured shape that fits the body comfortably
  • 8+ hours of operation with standard AA batteries
  • DPA Rechargeable Battery Pack (optional)
  • Easy battery loading

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience superior sound quality with a 126 dB dynamic range for pristine audio capture.
  • Enjoy reliable wireless performance with an impressive 330' working range for various venues.
  • Benefit from over 8 hours of battery life, ensuring extended use for long events or shoots.
  • The robust zinc alloy construction provides exceptional durability for professional applications.
  • Achieve seamless integration using the MicroLock connector for secure microphone attachment.
  • Quickly set up your audio with user-friendly controls for efficient operation in any setting.

What's in the box:

  • DPA Microphones N-BP1 N-Series Digital Bodypack Transmitter with MicroLock Connector
  • 2x AA Batteries
  • Antenna
  • Storage Pouch
  • User Manual
  • DPA Microphones 2 Year Limited Warranty
