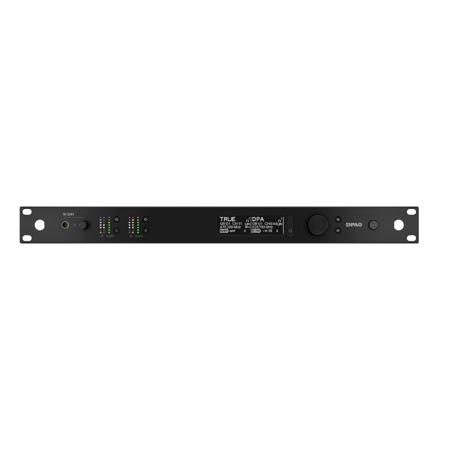

DPA Microphones N-DR1-AO Digital Dual-Channel Wireless Receiver with Dante and Analog Output

SKU: DPANDR1AO MFR: N-DR1-AO
Earn VIP Reward Points

Key Features

  • Experience crystal-clear audio with our digital wireless receiver, ensuring superior sound quality for all performances.
  • Benefit from a reliable 330-foot working range, providing consistent wireless microphone connectivity for dynamic events.
  • Enjoy seamless integration with Dante and analog outputs, offering versatile connectivity for professional audio setups.
  • Achieve precise audio control with a wide 470-870MHz RF frequency range, minimizing interference for flawless sound.
  • Simplify your setup with this user-friendly dual-channel receiver, designed for intuitive operation and quick deployment.
  • Trust in robust steel and aluminum construction, providing exceptional durability for demanding live sound environments.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DPA Microphones N-DR1-AO Specifications

  • Color

    Black, Matte Black

  • Material

    Steel and Aluminum

  • RF Frequency Range

    470 - 870MHz

  • RF Input Impedance

    50 Ohm

  • RF Tuning Steps

    25 kHz

  • RF Sensitivity

    -96 dBm at 10-5 BER

  • Audio Polarity

    Positively increasing sound pressure produces positive going voltage on relevant audio outputs

  • Working Range

    330' (100m) Range depends on the RF environment, i.e. absorption, reflection and interference

  • Audio Dynamic Range (system) analog

    126 dB

  • Audio Dynamic Range (system) Digital

    126 dB

  • Audio Frequency Response

    20 - 20 kHz ( +/-1 dB)

  • Latency

    <2.9 ms

  • Dante Interface

    Primary / Secondary on separate connectors from Control Network

  • Operating Temperature

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Storage Temperature

    4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C) Without batteries installed

  • Digital Audio Trim

    -20 dB to +40 dB on the receiver side, selectable in increments of 1 dB

  • RF Input Bias Voltage

    12 volts, max 250 mA per antenna

  • RF Input Connector type

    BNC

  • Dante Sample Rates

    44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

  • Network Interface

    Switched (dual port) Ethernet, max 100 Mbps

  • Network Addressing

    DHCP or Manual IP

  • Analog Output Impedance

    66 Ohm

  • Analog Output Signal Level

    Switchable Line or Mic (-30 dB pad)

  • Analog Audio Reference

    0 dBu to 20 dBu for full scale output, selectable in increments of 1 dB

  • Supply Voltage, Autosensing

    100VAC - 240VAC

  • Power

    Max. 28 W

  • Dimensions (H x W x D)

    1.7 x 19 x 9.7" (44 x 482 x 246mm)

  • Weight

    7.9 lbs (3.6kg)

  • UPC Code

    5713055033286

About DPA Microphones N-DR1-AO

N-Series offers the N-DR1 Digital Dual-Channel Receiver, designed with ease-of-use in mind and packed with high-end functionality.

True Radio Diversity
The N-DR1 Digital Dual-Channel Receiver is based on a true diversity set-up, also known as radio diversity, where the two antennas are internally hooked up to two radio circuitries. Each antenna input has its own radio. This differs from systems that offer antenna-diversity where there is only one built-in radio which must shift between the two antennas.

Dante Digital standard
The N-DR1 Digital Dual-Channel Receiver is equipped as standard with a Dante output. This output features the ability to run both a single connection and in true redundancy, i.e. Primary/Secondary set-ups for highest security.

We encourage users of the system to stay in the digital domain, using the Dante output, to avoid signal degradation. Every time the signal is converted from digital to analog and back again, there is signal loss as well as added latency.

Protection and privacy
The N-Series takes security of data seriously, offering AES256 encryption for privacy, which is paramount when using a wireless system in a corporate or governmental environment.

Amazing channel packing
The number of channels that any system can pack depends on the availability of availability of spectrum, but in an ideal world with no governmental restrictions and disturbing TV channels or radio frequency transmitting systems, the DPA wireless system can reach a stunning 800 possible channels.

In practical terms a user is limited to the allowed slots given in the specific area where the equipment is being used. Due to this you can rest assured that you can always find a free spot for your DPA wireless mics to operate in.

The system has an equal distance ability meaning that each channel needs 500 kHz spacing to the next channel. This is without Inter Modulation Distortion (IMD) components between the transmitters.

Minimal latency
The small delay that is always present with digital wireless systems is just below 3 milliseconds (2.9 ms) for the N-Series.

DPA Microphones N-DR1-AO Features

  • Wideband - 470 - 870MHz bandwidth in each unit
  • Sleek front panel design offers an easy overview of features
  • LAN control with built-in switch for loop through
  • Dante Switched and Redundancy modes
  • Antenna inputs with power for active antennas and active loop through
  • Analog output
  • 126 dB true dynamic range

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with our digital wireless receiver, ensuring superior sound quality for all performances.
  • Benefit from a reliable 330-foot working range, providing consistent wireless microphone connectivity for dynamic events.
  • Enjoy seamless integration with Dante and analog outputs, offering versatile connectivity for professional audio setups.
  • Achieve precise audio control with a wide 470-870MHz RF frequency range, minimizing interference for flawless sound.
  • Simplify your setup with this user-friendly dual-channel receiver, designed for intuitive operation and quick deployment.
  • Trust in robust steel and aluminum construction, providing exceptional durability for demanding live sound environments.

What's in the box:

  • DPA Microphones N-DR1-AO Digital Dual-Channel Wireless Receiver with Dante and Analog Output
  • 6.5' Mains Power Cord
  • 2x Antenna Cables
  • 2x Antennas
  • 2x BNC to BNC Adapters
  • 2x Hole Covers
  • User Manual
  • DPA Microphones 2 Year Limited Warranty
