New Arrival

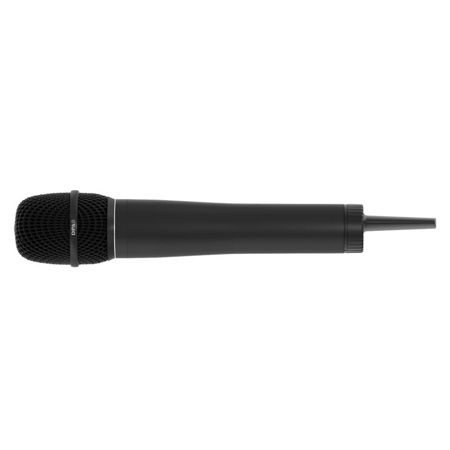

DPA Microphones N-Series 2024 Digital Wireless Supercardioid Condenser Handheld Microphone, Matte Black

SKU: DPANHH1B2024 MFR: N-HH1-SL1-B-2024
Earn VIP Reward Points

Key Features

  • Experience crystal-clear sound quality with the supercardioid condenser, perfect for vocals.
  • Enjoy over 7 hours of reliable battery life, ensuring your performance never misses a beat.
  • Benefit from an impressive 330' wireless range, offering freedom of movement on any stage.
  • Its durable zinc alloy construction provides robust protection for consistent, professional use.
  • The intuitive design ensures ease of use, making setup and operation simple for everyone.
  • Minimize unwanted noise with superior feedback rejection, focusing purely on your audio.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

DPA Microphones N-Series 2024 Microphone Specifications

  • Color

    Matte Black

  • Material

    Zinc alloy

  • Directional pattern

    Supercardioid

  • Principle of operation

    Pressure gradient

  • Cartridge type

    Pre-polarized condenser

  • Frequency response

    20Hz - 20 kHz

  • Effective frequency range +/-2 dB

    At 4.7" (12cm) 100Hz - 16 kHz. Permanent 1st order low-cut filter at 40 Hz, Selectable 2. order low-cut at 80Hz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    5 mV/Pa; -46 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 23 dB(A) re. 20 microPa (max. 25 dB(A))

  • Distortion, THD < 1%

    143 dB SPL RMS, 146 dB SPL peak

  • Dynamic range

    Typ. 123 dB

  • Max. SPL, THD 10%

    149 dB SPL peak

  • RF Frequency Range

    470 - 870MHz

  • RF Tuning Steps

    25 kHz

  • Battery Runtime at 10 mW

    >7 hours

  • Audio Input Impedance

    10 kOhm

  • RF Sensitivity

    -96 dBm at 10-5 BER

  • Audio Polarity

    Positively increasing sound pressure produces positive going voltage on relevant audio outputs

  • Radio Frequency Power

    1 mW, 5 mW, 10 mW, 20 mW, 50 mW

  • Working Range

    330' (100m) Range depends on the RF environment, i.e. absorption, reflection and interference

  • Audio Dynamic Range (system) analog

    126 dB

  • Audio Dynamic Range (system) Digital

    126 dB

  • Audio Frequency Response

    20 - 20 kHz ( +/-1 dB)

  • Latency

    <2.9 ms

  • Audio Input Interface Type

    SL1

  • Radio Frequency Bandwidth

    470 - 870MHz

  • Operating Temperature

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Storage Temperature

    4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C) Without batteries installed

  • Digital Audio Trim

    -20 dB to +40 dB on the receiver side, selectable in increments of 1 dB

  • Occupied Bandwidth

    < 200 kHz

  • Battery

    LR6 AA batteries

  • Battery Info

    Required, included

  • Battery Material

    Alkaline

  • Battery Type

    AA

  • Battery Quantity

    2

  • Polarity

    +V at output for positive sound pressure

  • Diameter

    Microphone: 1.9" (48mm)
    Capsule: 0.67" (17mm)

  • Length

    Microphone: 10.5" (266mm)

  • Weight

    13 oz (367g)

  • UPC Code

    5713055033057

About DPA Microphones N-Series 2024 Microphone

N-Series is best used with DPA's high-end vocal microphone capsules. There is a range of capsules available depending on the needs of your vocalists.

High dynamic range
To get the highest possible dynamic range the N-Series uses stacked converter technology and optimized circuitry around the input stage and A/D conversion. This is how the system offers the best audio performance.

Having a higher dynamic range means that you do not have to dial in a gain or amplification on the transmitter. Therefore, there is no need to set the gain on the transmitter. In addition, as the system is digital, optimum RF signal is obtained without having to secure maximum modulation. The original signal is preserved throughout the system.

It is possible to adjust the level coming out of the receiver per channel, but this is done in the digital domain, i.e., it is an offset of the incoming signal and thus referred to as digital TRIM.

Audio levels and headroom
The handheld transmitters have plenty of headroom, so there is no need to adjust input gain or the like. For this reason, you cannot adjust the audio levels on the transmitters.

It is, however, possible to change the level via an offset of the signal to balance sources with each other, but this is all done in the digital domain and thus referred to as digital TRIM via a knob on the receiver.

The analog outputs (if installed) allow users to adjust the analog reference to suit the system that the signal is being fed into. This is all done via the Receiver Menu.

Transmission power
Handheld can broadcast with a range of effects: 1 mW, 5 mW, 10 mW, 20 mW, 50 mW.

DPA Microphones N-Series 2024 Microphone Features

  • Wide frequency range: from 470MHz to 870MHz
  • Slim, light design sits balanced in the hand
  • No loose parts
  • 8+ hours of operation with standard AA batteries
  • DPA Rechargeable Battery Pack (optional)
  • Easy battery loading
  • Industry standard SL1 thread supports

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear sound quality with the supercardioid condenser, perfect for vocals.
  • Enjoy over 7 hours of reliable battery life, ensuring your performance never misses a beat.
  • Benefit from an impressive 330' wireless range, offering freedom of movement on any stage.
  • Its durable zinc alloy construction provides robust protection for consistent, professional use.
  • The intuitive design ensures ease of use, making setup and operation simple for everyone.
  • Minimize unwanted noise with superior feedback rejection, focusing purely on your audio.

What's in the box:

  • DPA Microphones N-Series 2024 Digital Wireless Supercardioid Condenser Handheld Microphone (Matte Black)
  • 2x AA Batteries
  • Clip for Microphone Stand Mounting
  • Storage Pouch
  • User Manual
  • DPA Microphones 2 Year Limited Warranty
