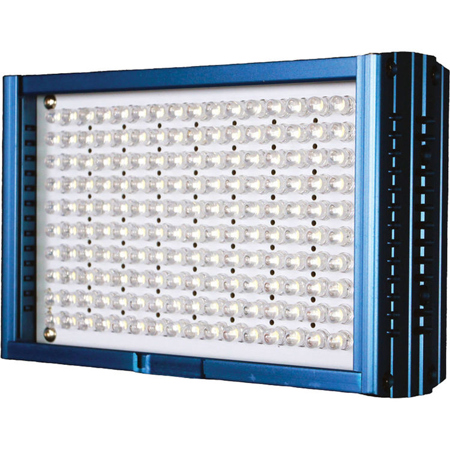

Dracast On-Camera LED160A 3200-5600K Variable Color Light with Battery and Charger

SKU: DR160ABBC

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Dracast LED160A Specifications

  • Light Source

    160 LEDs

  • Color Temperature

    3200-5600K

  • Brightness

    Approximate Figures:
    3200K: 300 lux at 3 ft (0.9 m), 88 lux at 6 ft (1.8 m), 38 lux at 9 ft (2.7 m), 25 lux at 12 ft (3.6 m)
    4400K: 538 lux at 3 ft (0.9 m), 142 lux at 6 ft (1.8 m), 63 lux at 9 ft (2.7 m), 38 lux at 12 ft (3.6 m)
    5600K: 775 lux at 3 ft (0.9 m), 195 lux at 6 ft (1.8 m), 88 lux at 9 ft (2.7 m), 50 lux at 12 ft (3.6 m)

  • Effective Distance

    Approximately 20' / 6.10m

  • Battery Plate

    Integrated single battery plate supporting all Sony and third-party L-series batteries

  • Mount Type

    1/4"-20 threaded hole

  • Optical System

    160, 5mm LED bulbs in 16 x 10 arrangement

  • Light Aperture

    4.4 x 2.8" / 11.18 x 7.11cm

  • Beam Angle

    45 deg.

  • Handling

    Top and Bottom 1/4-20 Threaded Adapter

  • Mounting

    Included Hot Shoe Adapter

  • Tilt Angle

    Omni Directional with Hot Shoe Adapter / 360 degree rotation on 1/4-20 thread

  • Voltage Input

    12V DC

  • Power Consumption

    9.6 W

  • Power Connection

    Barrel Type Connector, 110 - 240 VAC, 50 - 60 Hz, 2.0 A

  • Battery Connection

    Sony / Panasonic Battery Plate

  • Battery DC Voltage

    7.2 - 8.4 V DC

  • Battery Light Output

    75% of Total Output

  • Color Rendition

    CRI > 95

  • Dimming

    0 - 100% Continuous

  • Controls

    Local On-Board Manual Controls

  • Housing Build

    Aluminum

  • Estimated LED Lifetime

    50,000 hours

  • Dimensions

    6 x 4 x 2" / 15.24 x 10.16 x 5.08cm

  • Weight

    Approximately 0.5lbs / 0.23kg

  • UPC Code

    753807556736

4 Accessories for Dracast On-Camera LED160A 3200-5600K Variable Color Light with Battery and Charger

  • All Accessories (4)
  • Adapters & Mounts (1)
  • Batteries & Power Supply (2)
  • Flash Accessories (1)

About Dracast LED160A

The ON CAMERA Series from Dracast was originally designed with photographers in mind. With the current generation of feature-rich DSLR cameras that also shoot beautiful HD video, they set out to design a professional-grade alternative to traditional strobe lighting for the photography world. What started as a single, plastic fixture has since grown into two robust, aluminum, high-output, cam-era-mountable lights that are used by amateur photographers and professional DPs alike.

ON CAMERA Series LEDs are available in two sizes: the LED160A and the LED200. The LED160A is an aluminum build of their original 5.7" x 3.6" light. It's ultra-compact and portable form-factor make it suitable for just about any size camera. The LED200 is a 7.5" x 4" rectangular camera light designed for applications when high output is an absolute must.

Like the larger PANEL Series lights from Dracast, the ON CAMERA Series is available in three color temperature models: 3200K (Tungsten), 5600K (Daylight) and 3200K - 5600K (Variable CCT). All three versions deliver continuous 0 - 100% dimming and excellent color rendition across the color spectrum. Additionally, ON CAMERA Series lights can be battery powered by either a Sony or a Panasonic type battery, making the ON CAMERA series extremely versatile. ON CAMERA Series light are also some of the most durable LED lights available, being built entirely on an anodized aluminum frame and chassis

Dracast LED160A Features

  • 95 CRI
  • Lightweight Aluminum Construction
  • Single Color or Bi-Color
  • Sony or Panasonic Battery Options
  • Hot Shoe Mount Included
  • Nylon Soft Carry Case Included
  • Power Supply Included
  • D-Tap Cable Included

Product Documents

User Manual

Key Features

  • 95 CRI
  • D-Tap Cable Included

What's in the box:

  • Dracast On-Camera LED160A 3200-5600K Bicolor Light with Battery and Charger
  • Nylon Soft Case
  • Shoulder Strap
  • Hot-Shoe Mount
  • P-Tap to DC Connector Cable
  • Power Supply 2-Prong U.S.
  • D-Tap Cable
  • Dracast 1 Year Limited Warranty
