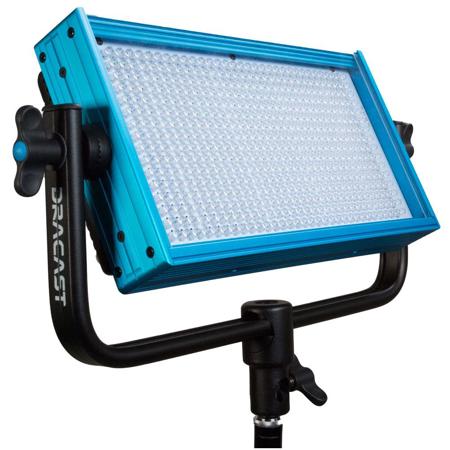

Dracast Pro Series LED500 30W Bi-Color LED Light Panel, Gold Mount

SKU: DR500BG MFR: DRLED500BG
Earn VIP Reward Points

Key Features

  • Achieve professional lighting with this Dracast LED panel's adjustable brightness.
  • Enjoy accurate colors with a CRI of >=95, perfect for video or photography shoots.
  • The bi-color LED light panel lets you easily adjust color temperature (3200-5600K).
  • Use the Gold Mount battery plate for on-location shoots; enhanced portability.
  • This durable LED panel offers even light, ideal for interviews and studio work.
  • Control your lighting setup with ease using the built-in dimmer from 0 to 100%.
See More Product Details
Special Order Item?Estimated to Ship: 09/24/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Dracast LED500 Pro Specifications

Light Fixture

Light Fixture

Jump to...
  • Number of Heads/Lights

    1

  • Fixture Type

    Light Panel

  • Photometrics

    (3200K):
    203 fc / 2187 Lux at 3.3' (1m)
    251 fc / 2700 Lux at 3' (0.9m)
    70 fc / 750 Lux at 5.9' (1.8m)
    33 fc / 350 Lux at 8.9' (2.7m)
    19 fc / 200 Lux at 11.8' (3.6m)

    (4400K):
    409 fc / 4400 Lux at 3' (0.9m)
    116 fc / 1250 Lux at 5.9' (1.8m)
    56 fc / 600 Lux at 8.9' (2.7m)
    33 fc / 350 Lux at 11.8' (3.6m)

    (5600K):
    146 fc / 1580 Lux at 3.3' (1m)
    181 fc / 1950 Lux at 3' (0.9m)
    49 fc / 530 Lux at 5.9' (1.8m)
    25 fc / 265 Lux at 8.9' (2.7m)
    14 fc /

  • Color Accuracy Standard

    >=95

  • Color Temperature

    Bi-Color

  • Color Temperature Range

    3200-5600K

  • Display

    No

  • Beam Angle

    45°

  • Built-In Flash

    No

  • Cooling System

    No

  • Dimming

    Built-In Dimmer: 0 to 100%

  • Water Resistance/IP Rating

    Dust-Resistant (IP20)

Connectivity

Jump to...
  • Mobile App Compatible

    No

Battery

Jump to...
  • Battery Connection

    Gold Mount

  • Battery

    1x Rechargeable

  • Power Source

    AC/DC

  • Power Consumption

    30W

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • DC Input Power

    12 VDC

Mounting

Jump to...
  • Fixture Mount

    5/8" Receiver (Via Yoke Mount)

  • Umbrella Mount

    No

Physical Details

Jump to...
  • Panel Size

    6" x 12"

  • Dimensions

    Fixture: 12 x 6 x 2" (30.5 x 15.2 x 5.1cm)

  • Weight

    4.5 lbs (2kg)

  • UPC Code

    720189882937

13 Accessories for Dracast Pro Series LED500 30W Bi-Color LED Light Panel, Gold Mount

  • All Accessories (13)
  • Power Supply & Accessories (1)
  • Light Stands & Accessories (9)
  • Batteries & Power Supply (2)
  • Production Accessories (1)

About Dracast LED500 Pro

With the Dracast Pro Series LED500 30W Bi-Color LED Light Panel, Gold Mount, you can experience the perfect blend of uncompromising build quality, high light output, and compact design. This product has been a staple in the Dracast catalog for years, making it a preferred choice for professionals in the broadcast and film industries.

This kit features a Pro Series 500 LED panel with a bi-color 3200K - 5600K variable color temperature, allowing you to easily match the prevailing ambient or artificial light balance. The simple turn of a knob on the back of the panel adjusts the color temperature, while a large manual control knob provides convenient dimming from 0-100%, with minimal color shift.

Weighing just 4.0 lbs, the LED500 Pro Series Bi-Color light panel is an excellent choice for location work, interviews, and small sets where color accuracy, control, and high-CRI light output are crucial. The panel boasts a durable anodized aluminum frame, supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" (baby pin) receiver.

The Dracast Pro Series LED500 Bi-Color LED Video Light Panel with Gold Mount Battery Plate includes a mounting yoke and AC power adapter. It also comes with a gold mount battery plate and a nylon padded soft carry case for easy storage and transport.

The LED500 Pro Series lights offer smooth dimming from full output to total blackout with zero dimmer stepping, thanks to the onboard controls. Power the Pro Series panel using the included AC/DC power adapter or take your light on location with battery power. The lights include a gold mount battery plate compatible with gold mount style batteries (sold separately), allowing the light to operate for several hours on a full battery charge.

In summary, the Dracast Pro Series LED500 30W Bi-Color LED Light Panel, Gold Mount, offers superior build quality, adjustable color temperature, and excellent color rendition across the entire CCT range, making it an essential tool for professional lighting needs.

Dracast LED500 Pro Features

  • Easily match ambient lighting with 3200K - 5600K adjustable CCT
  • >=95 CRI and TLCI for excellent color rendition across the entire CCT range
  • Excellent for interview lighting, portrait lighting, and on-location lighting where matching existing light sources is essential
  • Built with an anodized aluminum metal housing and frame for excellent durability
  • Quick and easy manual control with large adjustment knobs for 0%-100% dimming and color temperature adjustment
  • Plug the Pro Series panel into the wall using the included AC / DC power adapter or take your light on location with battery power
  • Lights include a gold mount battery plate compatible with gold mount style batteries (sold separately)
  • Light can operate for several hours on a full battery charge

Key Features

  • Achieve professional lighting with this Dracast LED panel's adjustable brightness.
  • Enjoy accurate colors with a CRI of >=95, perfect for video or photography shoots.
  • The bi-color LED light panel lets you easily adjust color temperature (3200-5600K).
  • Use the Gold Mount battery plate for on-location shoots; enhanced portability.
  • This durable LED panel offers even light, ideal for interviews and studio work.
  • Control your lighting setup with ease using the built-in dimmer from 0 to 100%.
