Draper Truss-Style Cinefold Manual 11'3" x 20' Projection Screen, 16:9 Aspect Ratio, Cineflex Finish

SKU: DRCT11320

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

doug p : Are there any acoustically transparent screen options?ANDREW R : All of the Draper brand screens that we offer may be found here: <a href="http://www.adorama.com/l/Computers/Monitors-and-Projectors/Projectors-and-Screens/Draper~Screens" target="_blank">http://www.adorama.com/l/Computers/Monitors-and-Projectors/Projectors-and-Screens/Draper~Screens</a>

Reviews about this item

Review Summary

Draper Truss-Style Cinefold Manual 11'3" x 20' Projection Screen Specifications

  • Style

    Cinefold

  • Front/Rear Projection

    Rear

  • Mount

    Free Standing

  • Finish

    Cineflex

  • Tension Control

    Tensioned

  • Format

    HDTV

  • Aspect Ratio

    16:9

  • Material

    Aluminum tubing; steel parts are cadmium plated

  • Masking Options

    Optional Dress Kit

  • Overall Size

    12'3"x21' (3.8x6.4m)

  • Image Size

    11'3"x20' (3.5x6.1m)

  • Diagonal

    22'11" (7.0m)

About Draper Truss-Style Cinefold Manual 11'3" x 20' Projection Screen

The Draper Truss-Style Cinefold Manual 11'3" x 20' Projection Screen makes Point-of-Purchase displays a breeze. This is an easy-to-use system that sets up and breaks down in no time - and with a minimum of effort. Complete with a wheeled case, this screen is a perfect choice for anyone who travels and needs a durable, rugged and simple screen for all kinds of presentations.

This modular screen features an extremely rigid frame that contains 1" square hard-alloy aluminum tubing. The tubing is arc welded and forms a very sturdy 6" wide truss. The piano hinges used to secure the system are all 6" wide and reinforced by two hinge latches as well as Draper's exclusive Handy Cranks. The coating is scratch-resistant and will provide years of clean, reliable service.

The Cinefold comes with anti-sway bars to reinforce its already stable frame. The screen is also supplied with stiffeners that keep the screen firm on its horizontal axis. The tubular aluminum frame provides strength as well as being easy to work with.

The optional Dress Kit gives you even more flexibility by providing a way to finish the professional appearance of your presentation. It is also a good way to hid your case, cables and anything else you do not wish your audience to view. Dress Kits also help your audience focus on the screen and not be distracted by any ambient light.

Draper Truss-Style Cinefold Manual 11'3" x 20' Projection Screen Features

  • Extra rigid truss-style frame
  • Frames and legs constructed of parallel sections of 1" square anodized aluminum tubing, arc welded to form a 6" wide truss

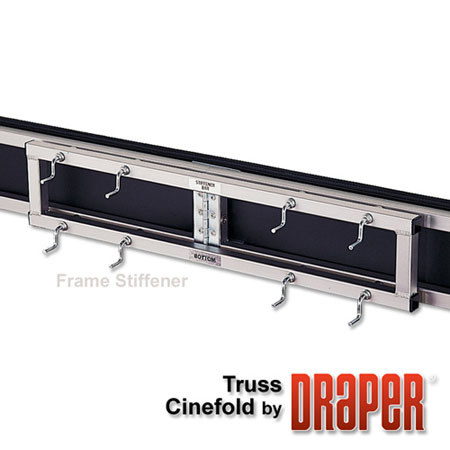

  • Special frame stiffener is attached at every horizontal hinge
  • Furnished with 6" wide black borders to completely conceal truss frame
  • Assembly is quick and easy with handy cranks
  • Includes truss frame and legs, snap-on-surface with protective soft case, heavy-duty leg stabilizers and frame stiffeners
  • Formats available for NTSC or HDTV video or general Square (Audio-Visual) use
  • Includes rugged, molded polyethylene carrying cases with wheels

Key Features

  • Extra rigid truss-style frame
  • Special frame stiffener is attached at every horizontal hinge
  • Assembly is quick and easy with handy cranks
  • Includes rugged, molded polyethylene carrying cases

What's in the box:

  • Draper Truss-Style Cinefold Manual 11'3 " x 20' Projection Screen
  • Frame
  • Screen Surface
  • Anti-Sway Stabilizers
  • Frame Stiffeners
  • Wheeled Carrying Case
  • Draper 1 Year Warranty
