Dracast Wedding Plus 3-Light Kit Specifications

  • LED200: Optical System

    192, 5mm LED bulbs in 24 x 8 arrangement

  • LED200: Light Aperture

    6.1 x 2.8" (154.94 x 71.12mm)

  • LED200: Beam Angle

    45 deg.

  • LED200: Handling

    Top and Bottom 1/4-20 Threaded Adapter

  • LED200: Mounting

    Hot Shoe Adapter

  • LED200: Tilt Angle

    Omni Directional with Hot Shoe Adapter / 360 degree rotation on 1/4-20 thread

  • LED200: Voltage Input

    12VDC

  • LED200: Power Consumption

    9.6W

  • LED200: Power Connection

    Barrel Type Connector, 110 - 240VAC, 50 - 60Hz, 2.0A

  • LED200: Battery Connection

    Sony / Panasonic Battery Plate

  • LED200: Battery DC Voltage

    7.2 - 8.4V DC

  • LED200: Battery Light Output

    75% of Total Output

  • LED200: Color Temperature

    3200-5600K

  • LED200: Color Rendition

    CRI > 95

  • LED200: Dimming

    0 - 100% Continuous

  • LED200: Controls

    Local On-Board Manual Controls

  • LED200: Housing Color

    Anodized Blue / Black

  • LED200: Housing Build

    Aluminum

  • LED200: Est. LED Lifetime

    50000 hours

  • LED200: Photometric (fc)

    At 3'
    35 fc at 3200K
    63 fc at 4400K
    90 fc at 5600K

    At 6'
    10 fc at 3200K
    16 fc at 4400K
    23 fc at 5600K

    At 9'
    5 fc at 3200K
    8 fc at 4400K
    10 fc at 5600K

    At 12'
    3 fc at 3200K
    5 fc at 4400K
    6 fc at 5600K

  • LED200: Photometric (lux)

    At 3'
    375 lux at 3200K
    673 lux at 4400K
    969 lux at 5600K

    At 6'
    110 lux at 3200K
    178 lux at 4400K
    244 lux at 5600K

    At 9'
    48 lux at 3200K
    79 lux at 4400K
    110 lux at 5600K

    At 12'
    31 lux at 3200K
    48 lux at 4400K
    63 lux at 5600K

  • LED500: Optical System

    512, 5mm LED bulbs in 32 x 16 arrangement

  • LED500: Light Aperture

    4.75 x 10" (120.65 x 254.00mm)

  • LED500: Beam Angle

    45 deg.

  • LED500: Handling

    Aluminum Yoke, Dual Locking Tilt Control

  • LED500: Mounting

    Baby 5/8" Pin

  • LED500: Tilt Angle

    +/- 90 degrees

  • LED500: Voltage Input

    12VDC

  • LED500: Power Consumption

    30W

  • LED500: Power Connection

    4-Pin XLR, 110 - 240VAC, 50 - 60Hz, 2.0A

  • LED500: Battery Connection

    V-Mount or Gold Mount Battery Plate

  • LED500: Battery DC Voltage

    14.8VDC

  • LED500: Battery Light Output

    100% of Total Output

  • LED500: Color Temperature

    3200-5600K

  • LED500: Color Rendition

    CRI > 95

  • LED500: Dimming

    0 - 100% Continuous

  • LED500: Controls

    Local On-Board Manual Controls, RJ45 DMX In / Out Ports

  • LED500: Housing Color

    Anodized Blue / Black

  • LED500: Housing Build

    Aluminum

  • LED500: Est. LED Lifetime

    50000 hours

  • LED500: DMX

    Cat5 input
    Cat5 output

  • LED500: Photometric (fc)

    At 3'
    251 fc at 3200K
    409 fc at 4400K
    181 fc at 5600K

    At 6'
    70 fc at 3200K
    116 fc at 4400K
    49 fc at 5600K

    At 9'
    33 fc at 3200K
    56 fc at 4400K
    25 fc at 5600K

    At 12'
    19 fc at 3200K
    33 fc at 4400K
    14 fc at 5600K

  • LED500: Photometric (lux)

    At 3'
    2700 lux at 3200K
    4400 lux at 4400K
    1950 lux at 5600K

    At 6'
    750 lux at 3200K
    1250 lux at 4400K
    530 lux at 5600K

    At 9'
    350 lux at 3200K
    600 lux at 4400K
    265 lux at 5600K

    At 12'
    200 lux at 3200K
    350 lux at 4400K
    150 lux at 5600K

  • Dimensions

    LED500: 12 x 6 x 2" (30.48 x 15.24 x 5.08cm)
    LED200: 7.4 x 4.1 x 1.57" (187.96 x 104.14 x 39.88mm)

  • Weight

    LED500: 4 lbs (1.81kg) with Mounting Yoke
    LED200: 0.5 lbs (0.23kg)

About Dracast Wedding Plus 3-Light Kit

LED500 Plus Light
The Plus Series LED 500 from Dracast is uniquely designed to pack a tremendous amount of punch into the smallest possible professional-grade package. A full-featured and powerful fixture, the LED 500 is the equivalent of a 325 watt traditional hot light, yet uses just 30 watts in operation. The CRI of the LED 500 is rated at 95 or above and Dracast LED bulbs have a life expectancy of 30000 - 50000 hours, so you can be confident that the LED500 is designed to withstand even the most taxing usage.

• Anodized aluminum frame and all-metal chassis
• Digital LCD display with light output, color temperature and DMX address
• Local and remote DMX control
• 95 CRI (Color Rendering Index) for ultra-pure light
• High output. Up to 5500 Lux or 511 Foot-candles
• V-Mount and Gold Mount battery plates included
• Included mounting yoke for use with 5/8" (baby pin) studs
• Locking yoke knobs

The Plus Series LED 500 can be battery powered for field work but also includes Cat 5 DMX inputs for work in the studio. Another new feature to our Plus Series lights is a digital display that records a readout of the color temperature and level of intensity from 0-100%. Our 2015 Plus Series lights essentially combines the Pro Series with the Studio Series for an all inclusive unit with the addition of a digital readout. The LED 500 is available in 3200K (tungsten), 5600K (daylight) or 3200K - 5600K (bicolor adjustable) color temperatures, meaning that there is an LED500 for every setting.

Each Dracast LED 500 includes an aluminum mounting yoke, a nylon soft carry case and an A/C adapter. A full line of accessories is also available including barn doors, batteries, diffusion panels, soft boxes and hard travel cases.

LED200 Plus On-Camera Light
The Dracast LED200 Plus is a go-to lighting solution for DV and DSLR shooters in need of a lightweight, ultra portable continuous lighting source with tremendous output. Along with the growing trend of hybrid photography in the DSLR world, the rugged build versatility makes the LED200 Plus the perfect choice. With up to 2400 lux of light output, plus its multiple camera mount type versatility, quick controls and display screen its no wonder the LED200 Plus is becoming a staple in on camera lighting.

• Anodized aluminum frame and all-metal chassis
• Digital LCD display with light output and color temperature
• 95 CRI (Color Rendering Index) for ultra-pure light
• High output. Up to 1397 Lux or 180 Foot-candles
• On-board Integrated L-series battery plate
• Included Hot shoe adapter

Product Documents

User Manual

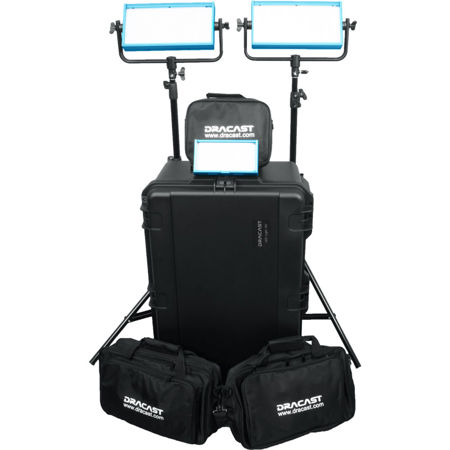

What's in the box:

  • Dracast 2x LED500 Plus Bi-Color LED Light
  • 1x LED200 Plus On-Camera Bi-Color LED Light
  • 2x Light Stands
  • Power Supplies
  • Gold & V Mount Battery Plates
  • Aluminum Mounting Yokes
  • Hard Carrying Case
  • User Manual
  • Dracast 1 Year Warranty
