Dracast LED500 Pro Specifications

Pro Series LED500 Light: Light Fixture

Pro Series LED500 Light: Light Fixture

Jump to...
  • Item Type

    1x LED Light Panel

  • Photometrics

    413 fc / 4455 Lux at 3.3' (1m)
    511 fc / 5500 Lux at 3' (0.9m)
    144 fc / 1550 Lux at 5.9' (1.8m)
    53 fc / 725 Lux at 8.9' (2.7m)
    40 fc / 430 Lux at 11.8' (3.6m)

  • Color Temperature

    5600K

  • Color Accuracy Standard

    CRI >= 95

  • Cooling System

    None

  • Dimming

    Yes, Built-In Dimmer
    0 to 100%

  • Beam Angle

    45 Degree

  • Front Accessory Mount

    Proprietary

Pro Series LED500 Light: Power & I/O

Jump to...
  • Power Source

    AC to DC Adapter (Included)
    Battery (Not Included)

  • Inputs/Outputs

    1x XLR 4-Pin Power Input

  • Battery Plate Type

    1x V-Mount (Built-In)

  • Battery

    1x Rechargeable (Not Included)

  • AC Input Power

    100 to 240 VAC, 50/60Hz

  • DC Input Power

    12 VDC

  • Included Adapter / Cable

    1x Edison Plug to XLR 4-Pin AC to DC Adapter

  • Inline Switch

    No

  • Power Pass-Thru

    No

  • Power Consumption

    30W

Pro Series LED500 Light: Mounting

Jump to...
  • Yoke Type

    Manually-Operated Yoke

  • Fixture Mounting

    1x 5/8" Receiver (Via Yoke Mount)

Pro Series LED500 Light: Environmental

Jump to...
  • Environmental Protection

    Advertised as Dust Resistant

  • IP Rating

    IP20

Pro Series LED500 Light: Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    3

Pro Series LED500 Light: General

Jump to...
  • Display

    None

  • Material

    Aluminum (Housing)

  • Dimensions

    Fixture: 12 x 6 x 2" (30.5 x 15.2 x 5.1cm)

  • Weight

    4 lbs (1.8kg)

AC Power Adapter: Electrical

Jump to...
  • AC Input Power

    100 to 240 VAC, 50/60Hz

DLS-805 Light Stand: Mounting

Jump to...
  • Stand/Column Top Mount

    5/8" Stud

DLS-805 Light Stand: Features

Jump to...
  • Accepts Second Riser

    No

  • Air Cushioned

    No

  • Detachable Base

    No

  • Leveling Leg

    No

  • Reverse Legs

    No

DLS-805 Light Stand: General

Jump to...
  • Finish

    Black

  • Stand Type

    1x General Purpose Stand

  • Material

    Aluminum

  • Load Capacity

    13 lbs (6kg)

  • Leg Shape

    Round

  • Maximum Working Height

    72" (182.9cm)

  • Minimum Working Height

    28.5" (72.4cm)

  • Closed Length

    28.5" (72.4cm)

  • Weight

    3.4 lbs (1.5kg)

5 Accessories for Dracast Pro Series LED500 30W Daylight LED 3-Light Kit, V-Mount

  • All Accessories (5)
  • Batteries & Power Supply (5)

About Dracast LED500 Pro

The Dracast Pro Series has been a cornerstone of the Dracast catalog for many years. Uncompromising build quality, high light output, and compact design has made the Dracast Pro Series an instrument of choice for professionals in the broadcast and film industries.

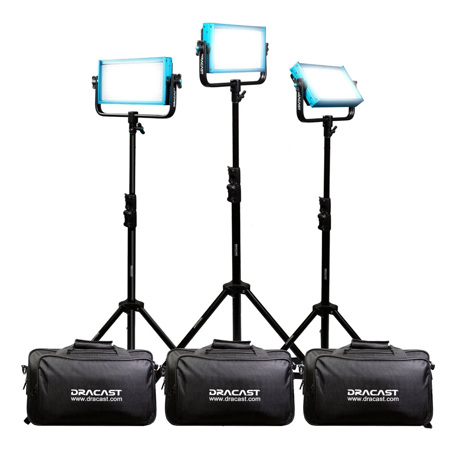

This kit includes three (3) Pro Series 500 LED panels in 5600K daylight color temperature. Also included with each panel is A/C power adapter, nylon padded travel case, and a Dracast DRDLS805 light stand.

At just 4.0 lb, the LED500 Pro Series Daylight light panel is an ideal choice for location work, interviews, and small sets where color accuracy, control, and high-CRI light output are of major importance. Daylight-balanced, 5600K color temperature makes this light well-suited for pairing with strobes or HMI fixtures, as well as balancing with ambient daylight conditions.

Dimming is equally convenient via the large manual control knob that adjusts the light intensity from 0-100%, with negligible color shift. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8" (baby pin) receiver.

High Output, Ultra Bright 5600K Color Temperature
High output lighting for interviews, studios, live streaming, video conferencing, and more! CRI >= 95 and TLCI means you get the highest quality light output with excellent white color rendition and no green or pink tint. Excellent for YouTube, Zoom, and on-location lighting where bright, high-output lighting is essential.

Dracast Build Quality
Built with an anodized aluminum metal housing and frame for excellent durability. Quick and easy manual control with large adjustment knobs for both dimmer and color temperature. Includes mounting yoke with 5/8" baby pin adapter. Individual soft carrying case is included for storage and transport.

LED 3 Light Kit Including Accessories
The Dracast DRLK3X500DGQ LED500 Pro Series Daylight LED 3 Light Kit with V-Mount Battery Plates includes x3 Dracast Pro Series LED500 - Daylight 5600K LED Video Lights, mounting yoke and AC power adapter. The lighting kit also includes x2 Dracast DRDLS805 light stands, and x2 nylon padded soft carry cases.

0% - 100% Dimming
Dracast Pro Series lights can be manually dimmed via the onboard controls for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping.

A/C or Battery Power Options
Plug the Pro Series panel into the wall using the included AC / DC power adapter or take your light on location with battery power. Dracast Pro Series lights include a v-mount battery plate compatible with v-mount style batteries (sold separately). Light can operate for several hours on a full battery charge.


- 6' DLS-805 Spring-Cushioned Light Stand -
The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5" to 72" and has a load capacity of 13 lb. It folds down to 28.5" for transport, and weighs 3.4 lb. There is a 5/8" stud on top of the stand.

The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments.

Dracast LED500 Pro Features

  • High Output, Ultra Bright 5600K Color Temperature
  • CRI >= 95 and TLCI for excellent color rendition across the entire CCT range
  • Excellent for YouTube, Zoom, and on-location lighting where bright, high-output lighting is essential
  • Built with an anodized aluminum metal housing and frame for excellent durability
  • Quick and easy manual control with large adjustment knobs for 0%-100% dimming and color temperature adjustment
  • Plug the Pro Series panel into the wall using the included AC / DC power adapter or take your light on location with battery power
  • Lights include a v-mount battery plate compatible with v-mount style batteries (sold separately)
  • Light can operate for several hours on a full battery charge

Key Features

  • High Output, Ultra Bright 5600K Color Temperature
  • CRI >= 95 and TLCI for excellent color rendition across the entire CCT range
  • Excellent for YouTube, Zoom, on-location lighting where bright, high-output lighting is essential
  • Built with an anodized aluminum metal housing and frame for excellent durability
  • Quick & easy manual control w/large adjustment knobs for 0%-100% dimming & color temp. adjustment
  • Plug the Pro Series panel into the wall using the included AC / DC power adapter

What's in the box:

  • 3x Dracast Pro Series LED500 Daylight LED Panel with V-Mount Battery Plate
  • 3x DRDLS805 Light Stands
  • 3x Yoke
  • 3x AC Power Adapter and Cable
  • 3x Nylon Padded Carry Case
  • (Battery Not Included)
  • Dracast 1 Year Limited Warranty
