Dracast Fresnel Series LED1400W Daylight 3-Light Kit
See all Dracast items

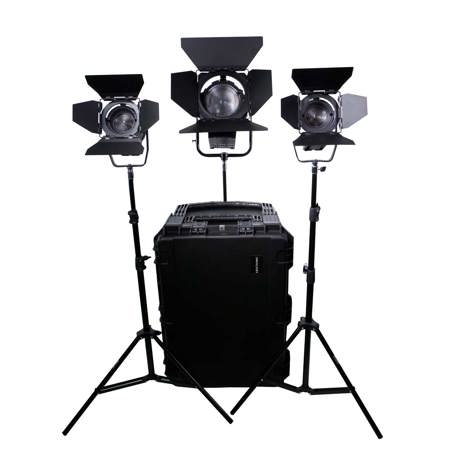

Dracast Fresnel Series LED1400W Daylight 3-Light Kit, Includes 2x DRPL-FL-200D Light, 1x DRPL-FL-1000D Light, 3x Barndoors, 3x Power Supply, 3x Light Stands and Hard Carrying Case

SKU: DRSFLK31400D
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Dracast DRPL-FL500-T: Picture 1 regular
Dracast LED Fresnel 500 Tungsten LED Light, 50W
$599.00$499.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Dracast LED1400W Kit Specifications

  • DRPL-FL200-D: Optical System

    Surface Mounted LED with Fresnel Lens

  • DRPL-FL200-D: Light Aperture

    3" (76.20mm)

  • DRPL-FL200-D: Beam Angle

    15 degrees - 60 Adjustable Beam Angle

  • DRPL-FL200-D: Handling

    Single-Side Clutch Plate Tilt Adjustment Handle

  • DRPL-FL200-D: Mounting

    5/8" Baby Pin Aluminum Mounting Yoke

  • DRPL-FL200-D: Tilt Angle

    90 degrees

  • DRPL-FL200-D: Voltage Input

    36 V DC

  • DRPL-FL200-D: Power Consumption

    20W

  • DRPL-FL200-D: Power Connection

    110-240 VAC, 50-60 Hz, 2.0A

  • DRPL-FL200-D: Heat Management

    Passive Heat Sink Cooling System

  • DRPL-FL200-D: On Board Fan

    No

  • DRPL-FL200-D: Battery Powered

    No

  • DRPL-FL200-D: Color Temperature

    5600K

  • DRPL-FL200-D: Color Rendition

    95

  • DRPL-FL200-D: Dimming

    0-100% Continuous

  • DRPL-FL200-D: Controls

    Local On-Board Manual Controls

  • DRPL-FL200-D: Housing Color

    Blue / Black

  • DRPL-FL200-D: Housing Build

    Aluminum Alloy

  • DRPL-FL200-D: Est LED Lifetime

    50,000 hours

  • DRPL-FL200-D: Photometric (fc)

    3':
    407 fc at 15 deg.
    237 fc at 60 deg.

    6':
    117 fc at 15 deg.
    68 fc at 60 deg.

    9':
    54 fc at 15 deg.
    33 fc at 60 deg.

    12':
    32 fc at 15 deg.
    20 fc at 60 deg.

  • DRPL-FL200-D: Photometric (lux)

    3':
    4386 lux at 15 deg.
    2556 lux at 60 deg.

    6':
    1258 lux at 15 deg.
    727 lux at 60 deg.

    9':
    585 lux at 15 deg.
    355 lux at 60 deg.

    12':
    340 lux at 15 deg.
    217 lux at 60 deg.

  • DRPL-FL1000-D: Optical System

    Surface Mounted CREE LEDs in 6 x 7 arrangement

  • DRPL-FL1000-D: Light Aperture

    6.8" (172.72mm)

  • DRPL-FL1000-D: Beam Angle

    15 degrees - 60 Adjustable Beam Angle

  • DRPL-FL1000-D: Handling

    Single-Side Clutch Plate Tilt Adjustment Handle

  • DRPL-FL1000-D: Mounting

    5/8" Baby Pin Aluminum Mounting Yoke

  • DRPL-FL1000-D: Tilt Angle

    90 degrees

  • DRPL-FL1000-D: Voltage Input

    24 V DC

  • DRPL-FL1000-D: Power Consumption

    100W

  • DRPL-FL1000-D: Power Connection

    110-240 VAC, 50-60 Hz, 2.0A

  • DRPL-FL1000-D: Heat Management

    Passive Heat Sink Cooling System

  • DRPL-FL1000-D: On Board Fan

    No

  • DRPL-FL1000-D: Battery Powered

    No

  • DRPL-FL1000-D: Color Temperature

    5600K

  • DRPL-FL1000-D: Color Rendition

    95

  • DRPL-FL1000-D: Dimming

    0-100% Continuous

  • DRPL-FL1000-D: Controls

    Local On-Board Manual Controls

  • DRPL-FL1000-D: Housing Color

    Blue / Black

  • DRPL-FL1000-D: Housing Build

    Aluminum Alloy

  • DRPL-FL1000-D: Est LED Lifetime

    50,000 hours

  • DRPL-FL1000-D: Photometric (fc)

    6':
    394 fc at 15 deg.
    149 fc at 60 deg.

    12':
    100 fc at 15 deg.
    37 fc at 60 deg.

    18':
    45 fc at 15 deg.
    17 fc at 60 deg.

  • DRPL-FL1000-D: Photometric (lux)

    6':
    4250 lux at 15 deg.
    1600 lux at 60 deg.

    12':
    1080 lux at 15 deg.
    400 lux at 60 deg.

    18':
    480 lux at 15 deg.
    180 lux at 60 deg.

  • Dimensions

    DRPL-FL200-D (L x W x H): 19 x 20 x 26cm (7.48 x 7.87 x 10.24")
    DRPL-FL1000-D (L x W x H): 46 x 40 x 30cm (18.11 x 15.75 x 11.81")
    Kit (L x W x D): 40 x 24 x 18" (101.60 x 60.96 x 45.72cm) (Interior)

  • Weight

    DRPL-FL200-D: 4.85lbs (2.20kg)
    DRPL-FL1000-D: 17lbs (7.71kg)
    Kit: 105lbs (47.63kg)

  • UPC Code

    722512449916

About Dracast LED1400W Kit

Introducing a powerful lighting solution, the Dracast LED Fresnels Series is now available as kits. Take advantage of the maximum light output that Dracast LED Fresnel kits can provide for your lighting needs. The Dracast LED Fresnel Kits come in different options all packed up in a hard case to protect your investment. LED technology continues to grow and shape the way you light, the LED Fresnel kits now give you the flexibility and versatility to have all the light you need for what ever the need.

Dracast LED1400W Kit Features

  • DRPL-FL200-D: Power Consumption 20W
  • DRPL-FL200-D: Power Connection 110-240 VAC, 50-60 Hz, 2.0A
  • DRPL-FL200-D: Color Temperature 5600K
  • DRPL-FL200-D: Est LED Lifetime 50,000 hours
  • DRPL-FL200-D: Photometric (fc) 3':
    407 fc at 15 deg.
    237 fc at 60 deg.

    6':
    117 fc at 15 deg.
    68 fc at 60 deg.

    9':
    54 fc at 15 deg.
    33 fc at 60 deg.

    12':
    32 fc at 15 deg.
    20 fc at 60 deg.
  • DRPL-FL200-D: Photometric (lux) 3':
    4386 lux at 15 deg.
    2556 lux at 60 deg.

    6':
    1258 lux at 15 deg.
    727 lux at 60 deg.

    9':
    585 lux at 15 deg.
    355 lux at 60 deg.

    12':
    340 lux at 15 deg.
    217 lux at 60 deg.
  • DRPL-FL1000-D: Power Consumption 100W
  • DRPL-FL1000-D: Power Connection 110-240 VAC, 50-60 Hz, 2.0A
  • DRPL-FL1000-D: Heat Management Passive Heat Sink Cooling System
  • DRPL-FL1000-D: Battery Powered No
  • DRPL-FL1000-D: Color Temperature 5600K
  • DRPL-FL1000-D: Color Rendition 95
  • DRPL-FL1000-D: Est LED Lifetime 50,000 hours
  • DRPL-FL1000-D: Photometric (fc) 6':
    394 fc at 15 deg.
    149 fc at 60 deg.

    12':
    100 fc at 15 deg.
    37 fc at 60 deg.

    18':
    45 fc at 15 deg.
    17 fc at 60 deg.
  • DRPL-FL1000-D: Photometric (lux) 6':
    4250 lux at 15 deg.
    1600 lux at 60 deg.

    12':
    1080 lux at 15 deg.
    400 lux at 60 deg.

    18':
    480 lux at 15 deg.
    180 lux at 60 deg.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Dracast 2x DRPL-FL-200D Light
  • 1x DRPL-FL-1000D Light
  • 3x Barndoors
  • 3x Power Supply
  • 3x Light Stands
  • Hard Carrying Case
  • Dracast 1 Year Warranty
