DSC Labs DX-1 MultiBurst Squarewave 16:9 / 4:3 Test Chart (White on Black)
SKU: DSCCDX129IW
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About DSC Labs DX-1

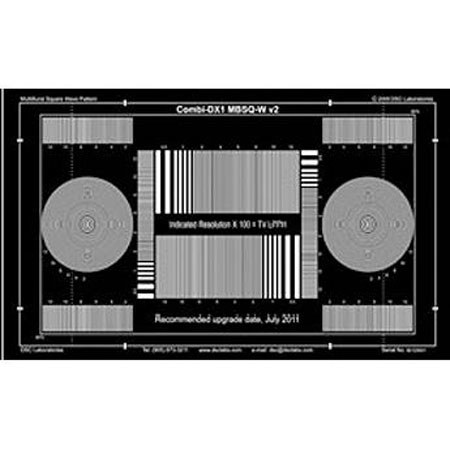

The DSC Labs DX-1 MultiBurst Squarewave 16:9 / 4:3 Test Chart (White on Black) is a rear-lit test chart designed for calibrating the color and resolution on your video camera. Instead of sectional blocks, the resolution bars located in the center appear in gradient. Using resolution gratings up to 1200 TV LPPH (15 MHz), the chart can be used for testing camera frequency response. In addition, the zone plates up to 1200 TV LPPH (15 MHz) allow for checking resolution characteristics and anti-aliasing.
You can use the DX-1 MultiBurst Squarewave Test Chart as a precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals. In addition, it can be used to align multiple cameras using the color patches. The chart can be used for aligning different types of lighting such as quartz, HMI and fluorescent. It also features a maximum tolerance level of 5 CIE LXUXV units and an RMS maximum of 2 units.
DSC Labs DX-1 Features
- Rear-lit test chart - designed for calibrating the color and resolution on your video camera
- Spectrophotometrically neutral grayscales
- Selected color pigments that match real life colors and modern camera colorimetry
- Color patterns match CamAlign front-lit chart colorimetry
- Resolution bars located in the center appear in gradient instead of sectional blocks
- Resolution gratings up to 1200 TV LPPH (15 MHz)
- Can be used for testing camera frequency response
- Zone plates up to 1200 TV LPPH (15 MHz) - allow for checking resolution characteristics and anti-aliasing
- Can be used as precision optical signal generator that produces waveform and vectorscope displays similar to standard electronic test signals
- Can be used to align multiple cameras using the color patches
- Aligns different types of lighting such as quartz, HMI and fluorescent
- Maximum tolerance level of 5 CIE LxUxV units
- RMS maximum of 2 units
- Supports 16:9 / 4:3 aspect ratios
- Mounted in shatter-proof clear glass plastic
- Designed to be used with the Ambi illuminator, however using CombiMattes (optional), can also be used with other manufacturers' light boxes or spherical illuminators
