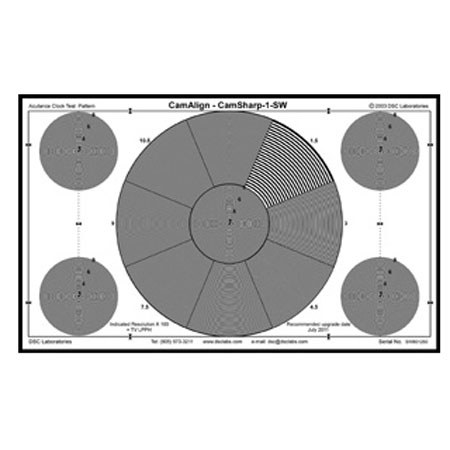

DSC Labs CamSharp Maxi Resolution Test Chart, 40x24"

Because precision and clarity are paramount in video production, the DSC Labs CamSharp Maxi Resolution Test Chart (40x24") is an essential tool for professionals seeking to calibrate and fine-tune the resolution of their video cameras. This high-quality chart is specifically designed to facilitate the optimization of camera performance, thereby enhancing the production value of the images captured.

Crafted with meticulous attention to detail, the CamSharp Maxi Resolution Test Chart is versatile and suitable for both engineering and production environments. Its utility is evident in the swift and precise testing it offers for cameras and lenses, ensuring compatibility with both High Definition (HD) and Standard Definition (SD) video across the popular aspect ratios of 16:9 and 4:3.

Central to its design are five ramped zone plates, ranging from 100 to 800 Television Lines Per Picture Height (TV LPH), strategically positioned at the center and each corner of the chart for comprehensive testing. Surrounding the central ramped zone plate, the chart features eight wedges of varying resolutions, cleverly distributed to mirror the layout of a clock. This innovative arrangement allows for easy reference, with resolutions such as 300 TV LPH at the 3:00 position and 600 TV LPH at the 6:00 position, facilitating a thorough assessment of camera and lens resolution capabilities.

The chart's high-contrast black-and-white zone plates are set against a mid-gray background, accurately representing the average picture level (APL) and ensuring that the chart can be used under a variety of lighting conditions to test contrast and resolution.

Durability is also a key feature of the CamSharp Maxi Resolution Test Chart. Constructed from a washable material, it can be easily cleaned and maintained. Additionally, the inclusion of an aluminum backing and protective edging significantly extends the lifespan of the chart, making it a long-lasting investment for any video professional's toolkit.

In summary, the DSC Labs CamSharp Maxi Resolution Test Chart is a sophisticated, reliable, and indispensable asset for achieving the highest standards in video resolution and image quality.
