DigiTech JamMan Express XT Specifications

Digital

Digital

Jump to...
  • A/D/A Conversion

    24-bit

  • Max. Individual Loop Time

    10 minutes (stereo)

  • Sample Rate

    44.1kHz

Left (Mono) / Right Inputs

Jump to...
  • Connector Type

    1/4" Unbalanced (Tip-Sleeve)

  • Input Impedance

    550KOhms Mono/1.1MOhms Stereo

  • Unity Gain Input to Output

    Loop Level knob set to 12 o'clock position

  • Max Input Level at Unity

    +4dBu DFS

  • Left and Right Audio Paths

    Each channel maintains analog dry path

Left (Mono) / Right Outputs

Jump to...
  • Connector Type

    1/4" Unbalanced (Tip-Sleeve)/Balanced (Tip-Ring-Sleeve)

  • Output Impedance

    100Ohms Unbalanced / 200Ohms Balanced

  • Playback Unity Gain

    Loop Level knob set to 12 o'clock position

  • Maximum Output Level

    +4dBu DFS

Performance

Jump to...
  • Frequency Response

    +0/-3dB 20-20kHz

  • Signal to Noise Ratio

    > -100dB

Power Requirements

Jump to...
  • Consumption

    <2W

  • Current Draw

    <150mA

  • Battery Life

    Approximately 2 hours of operation using 9V battery

  • Input

    100 -240 VAC, 50/60Hz

  • Output

    9 VDC, 1.3A

General

Jump to...
  • Dimensions (LxWxH)

    4.5 x 2.75 x 2" (11.43 x 6.99 x 5.08cm)

  • Weight

    0.6 lbs (0.27kg)

  • UPC Code

    691991202803

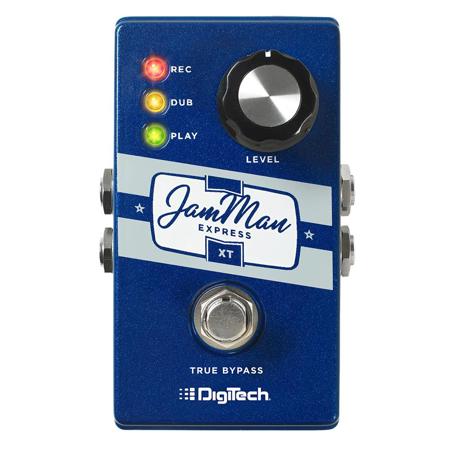

About DigiTech JamMan Express XT

The JamMan Express XT is the most full-featured compact looper in the world. With true-stereo, 10 minutes of looping time (2x as much time as you'll ever need) and JamSync the Express XT is a perfect looper for your already crowded pedalboard or addition to your JamMan looping set-up. The Express XT with JamSync will automatically synchronize with another Express XT or JamMan Solo XT to create independent yet perfectly synchronized loops. Using JamSync you can build a custom multi-track looper or build loops with your band.

It's incredibly simple and easy to use. It works just like every other looper with record, stop, play, unlimited overdubs and undo. We made it even easier with a dedicated LED per status. The Express XT can run on a 9V battery (included) and works right out of the box. You don't have to spend any more of your hard earned money to get a power supply just to use it when you get home. Not only is the Express XT the best, most full-featured compact looper in the world, it's also the most affordable.

DigiTech JamMan Express XT Features

  • Compact stereo looper with up to 10 minutes of looping time
  • JamSync-automatically synchronizes multiple JamSync enabled loopers
  • Simple, easy-to use looper
  • True-bypass
  • Battery powered
  • Stereo 1/4" Inputs & Outputs
  • Silent Clear Prevents Playback When Clearing Loops
  • Intuitive User Interface

What's in the box:

  • DigiTech JamMan Express XT Compact Stereo Looper Pedal with JamSync
  • 9V Battery
  • DigiTech 1 Year Parts and Labor Limited Warranty
