DigiTech Polara Specifications

Interface

Interface

Jump to...
  • Controls

    Level, Liveliness, Decay, Reverb Type, Tails On/Off, Effect On/Off

  • Jacks

    Input 1 (Mono), Input 2, Output 1 (Mono), Output 2

  • Input

    Separate Left and Right 1/4" Unbalanced (Tip-Sleeve)

  • Output

    Separate Left and Right 1/4" Unbalanced (Tip-Sleeve)

  • Input Impedance

    Effect on: >1MOhms (stereo), >500KOhms (mono)
    Effect off: >1MOhms (stereo), >500KOhms (mono) with Tails switch on
    Effect off: True hardwire bypass with Tails switch off

Outputs

Jump to...
  • Output Impedance

    Effect on: 1KOhms
    Effect off: 1KOhms with Tails switch on
    Effect off: True hardwire bypass with Tails switch off

Switches

Jump to...
  • Switches

    Soft Click, Vacuum Style Footswitch; Reverb Tails On/Off Toggle Switch

  • Power Requirements

    9 VDC external power supply

  • Power Consumption

    675mW (< 75mA at 9 VDC)

  • Current Draw

    75mA (typical at 9VDC

  • Power Supply Output

    9VDC 1.3A

General

Jump to...
  • Dimensions (LxWxH)

    4.40 x 2.65 x 2.0" (11.18 x 6.73 x 5.08cm)

  • Weight

    1 lbs (0.45kg)

  • UPC Code

    691991202940

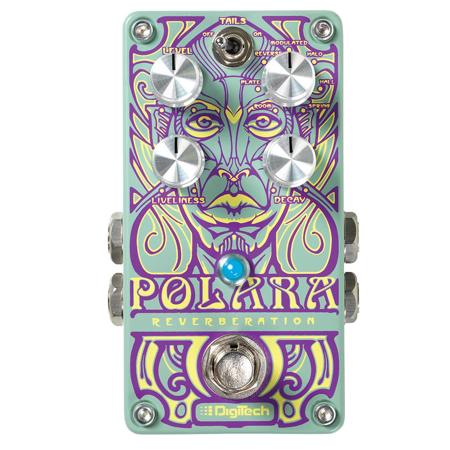

About DigiTech Polara

Featuring seven inspirational Lexicon reverbs, the DigiTech Polara will be the new architect of your soundscape, defining space and adding dimension to your playing. The Polara's flexible reverbs cover a full spectrum, from the intimate warmth of "Room", to the vast expansiveness of "Hall", through time with the cosmic power of "Reverse" and anchored by Lexicon's revered "Modulated", "Plate" and "Spring" reverbs. In addition to those classics, the Polara introduces the new "Halo" reverb. The "Halo" reverb with cascading octaves interspersed in the reverb decays will cast a heavenly glow over your tone.

With its new, compact size and vacuum-style footswitch, the Polara truly represents the latest evolution in DigiTech pedal design. We've put years of experience into every detail of its mechanical and sonic blueprint. The Polara offers independent Level, Liveliness, Decay and Type controls; Stereo Inputs and Outputs; a Soft Click Footswitch; and a Reverb Tails On/Off Toggle Switch. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.

DigiTech Polara Features

  • ROOM - Fast decaying reverb; great for a touch of ambience
  • PLATE - Renowned studio reverb found on classic recordings
  • REVERSE - Reverb in reverse; quietly crescendos to full volume
  • MODULATED - Lush modulating reverb ideal for chords
  • HALO - Shimmering reverb with cascading octave shifts
  • HALL - Large encompassing reverb with warm decay
  • SPRING - Classic "surf" reverb; great for Rockabilly too
  • Compact Size with Soft Click, Vacuum-Style Footswitch
  • Tails On/Off Switch - When this switch is set to the On position, reverb tails will decay naturally when the effect is switched to bypass. When set to the Off position, reverb decays will end abruptly when the effect is switched to bypass
  • True Stereo I/O
  • True Bypass circuitry preserves your tone in bypass
  • High-Voltage operation for uncompromised signal quality
  • StompLock knob guard locks your tone in place and prevent tampering or accidental knob adjustments onstage
  • Custom-cut Hook and Loop Pedalboard Pad to attach and lock your pedals to your pedalboard
  • Stereo 1/4" Inputs & Outputs with True Stereo Processing
  • Constant High Voltage Power Rails
  • Effect On/Off LED Indicator

What's in the box:

  • DigiTech Polara 7 Lexicon Stereo Reverb Pedal
  • StompLock
  • Die Cut Hook and Loop Pedalboard Pad
  • DigiTech 1 Year Parts and Labor Limited Warranty (Extendable to 6 Year with Online Registration)
