DigiTech RP360 XP Specifications

Analog Input Connections

Analog Input Connections

Jump to...
  • Guitar Input

    1/4" Unbalanced (TS)

  • Input Impedance

    1MOhms

  • Maximum Input

    +10dBu

  • Aux Input

    1/8" Stereo (TRS)

Analog Output Connections

Jump to...
  • Left/Right Outputs

    1/4" Impedance Unbalanced

  • Left/Right Output Impedance

    500Ohms per side

  • Maximum Output

    +8.5dBu

  • Headphone Output

    1/8" Stereo (TRS) - 118mW per channel at 50Ohms
    Optimized for use with headphones having an impedance of 60Ohms or less

Digital Connections

Jump to...
  • USB

    Type B, supports USB 1.1 Full Speed (12 Mbps Bandwidth USB 2.0 compatible)

USB Recording

Jump to...
  • Sample Rate

    44.1kHz

  • Bit Depth

    Supports 16-bit or 24-bit (depends on setup in recording software)

  • Power Requirements

    9VDC, 300mA, 2.7W, center pin GND, outer sleeve positive

Minimum System Requirements

Jump to...
  • Windows

    Nexus v1.0.2:
    2GHz dual core processor
    2GB of memory
    Windows XP Home/Professional (32-bit) with SP3
    Windows Vista/7/8/10 (32/64 bit)
    Available USB port
    Internet access for updates

  • Mac

    Nexus v1.0.1:
    Intel 2GHz dual core processor
    2GB of memory
    OS X 10.7 or later
    Available USB port
    Internet access for updates

General

Jump to...
  • A/D/A Converter

    24-bit high performance audio

  • Sampling Frequency

    4.1kHz

  • DSP Section

    AudioDNA2 DSP Processor

  • Simultaneous Effects

    10

  • Preset Memory

    99 User Presets/99 Factory Presets

  • Phrase Looper

    40 seconds of record time

  • Drum Machine

    60 Patterns

  • Dimensions (LxWxH)

    11.5 x 8.5 x 2" (29.21 x 21.59 x 5.08cm)

  • Weight

    4.12 lbs (1.87kg)

  • UPC Code

    691991202797

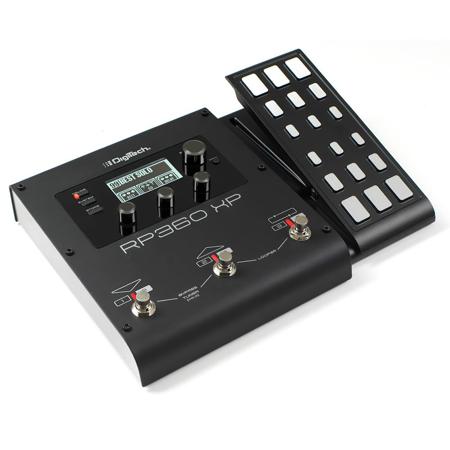

About DigiTech RP360 XP

The DigiTech RP360XP guitar multi-effect processor is a complete 360deg. guitar effects solution. It includes over 160 different effects (55 amps, 27 cabinets, 85 stompboxes) inspired by world's best-selling pedals and iconic amps. The LCD interface makes it easy to explore and discover the perfect tone to get that desired effect. Along with the incredible selection of effects, the RP360XP has an expression pedal, 40-second looper, nearly 200 presets, USB port, configurable footswitch modes, built-in tuner; dedicated headphone jack, Sound Check and 60 built in drum tracks.

You can add up to 8 effects to each preset. The RP360XP has a USB port for transferring and loading presets from your computer. With nearly 200 onboard presets and Nexus, DigiTech's free preset editor and librarian software, you can create, transfer and share an unlimited number of tones. The USB port also allows you to record your guitar tracks directly to your computer. The RP360XP works with GarageBand, Pro Tools, Cubase, Ableton and virtually every other recording software for Mac or PC.

The RP360XP is versatile with 3 different footswitch modes. Incorporate the RP360XP into your existing pedalboard using stompbox mode where you can assign any effect in your preset to each footswitch. If you choose to use the RP360XP by itself, easily navigate through your presets in preset mode or bank mode. Extend your control of the RP360XP with a 3-button footswitch. The 3-button footswitch can be set-up to extend the control of the onboard looper or navigate through your banks and presets.

The RP360XP includes a new feature exclusive to DigiTech called Sound Check. Sound Check allows you to quickly record a phrase with your guitar and set it to repeat while you dial in the perfect effects and settings. Sound Check saves you from having to continually bend over to make minor adjustments while dialing in your tone. With Sound Check you'll spend less time tweaking and more time playing with the perfect tones.

DigiTech RP360 XP Features

  • Over 160 Amps, Cabinets, and Effects
  • 55 Amp/Acoustic types
  • 27 cabinets
  • 85 effects
  • Run up to 10 Effects at a Time
  • 198 presets (99 factory, 99 user)
  • Expression pedal
  • Power supply included
  • 40-second looper
  • Flexible Amp & Effects Routing
  • 60 High quality drum patterns
  • Durable metal chassis and footswitches
  • 2 x 2 USB audio streaming
  • Built-in chromatic tuner
  • External control input for a 3-button footswitch
  • Configurable footswitch modes (Stompbox, Preset, Bank)
  • Up to 5 seconds of delay time
  • USB editing via DigiTech Nexus
  • Stereo 1/4" Output
  • Stereo 1/8" headphone output
  • Stereo 1/8" Aux Input
  • Amp / Mixer mode optimizes 1/4" outputs for amps and mixers
  • 24-bit 44.1kHz sample rate
  • Sound Check for Easy Auditioning & Editing of Effects

What's in the box:

  • DigiTech RP360 XP Guitar Multi-Effect Floor Processor with USB Streaming and Expression Pedal
  • PS0913DC-01 Power Adapter
  • DigiTech 1 Year Parts and Labor Limited Warranty
