Review Summary
1/2.3" type Exmor CMOS sensor
Approx. 8.93 Megapixels
4K (3840 x 2160, QFHD)
2160p / 29.97, 2160p/25
HD: 1080p59.94/50/29.97/25, 1080i59.94/50/29.97/25
50%, High Sensitivity Mode
Color: 0.75 lx (F1.8, AGC ON, 1/30 sec)
50%, Normal Mode: Color: 3 lx (F1.8, AGC ON, 1/30 sec)
100 lx - 100,000 lx
Auto / Manual (0 to 33 dB)
Max. Gain Limit (9 to 33 dB)
1/1 to 1/10,000 sec
Yes
Auto, Manual, Priority Mode (shutter priority & iris priority) Bright, EV compensation
Auto, Indoor, Outdoor, Sodium Vapor Lamp, One-push, Manual
Auto (Sensitivity: normal, low), OnePush AF, Manual, Zoom Trigger AF
12x Optical Zoom, f = 3.9mm (WIDE) to 46.8mm (TELE)
F1.8 to F2.0
12x (144x with optical zoom)
70.7 degrees (WIDE END) to 6.4 degrees (TELE END)
10mm (WIDE END) to 1500mm (TELE END) (Default: 300mm)
2x HDMI
VISCA / DVIP Protocol
RS-422 & DVIP by RJ-45 interface
USB 2.0
One IR controller
0 to 50 deg. C (32 to 122 deg. F)
-10 to 60 deg. C (14 to 140 deg. F)
10 % to 80 % (non-condensing)
DC 12V 1A
10W
Without Tripod Mount: 71.4 x 82.6 x 182.9mm (2.81 x 3.25 x 7.20")
With Tripod Mount: 71.4 x 95.2 x 182.9mm (2.81 x 3.75 x 7.20")

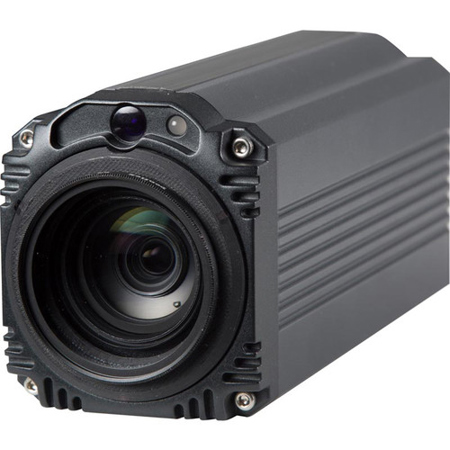

The BC-200 Block Camera is a 4K (3840 x 2160, QFHD) 30P camera with an infrared remote control. It's perfect for use in video and web studios, venues, conference rooms and theatres providing 12x optical zoom and two HDMI video output interfaces. The BC-200 supports SONY VISCA protocol enabling the camera to be controlled via RS-422 or DVIP interface and the built-in tally light indicates when it is active.
