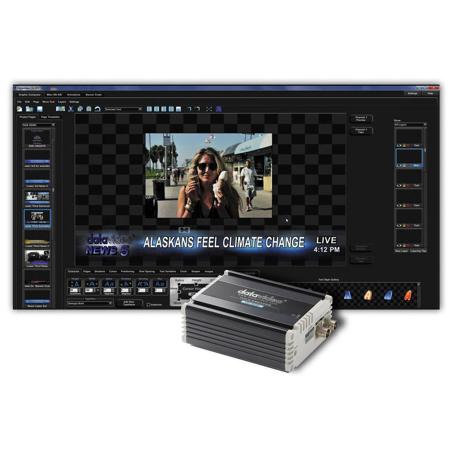

Datavideo CG-300 Character Generator Software Kit with TC-200 Character Generator Kit

CG-300 HD Character Generator Software
The CG-350 and CG-300 are Windows-based character generators designed for live production and post production. The character generators are available primarily as a software+hardware combo that includes the CG-350/300 software and a Blackmagic Decklink HD Extreme 4K Card or Decklink SDI 4K Card. The PCI Card is meant for installation into a Windows-based PC. However, one can also purchase the CG-300 or CG-350 software ONLY (without PCI Card hardware). If a complete already-assembled CG computer is needed, look no further than their PCR-350/300 Workstation or the 1RURack-Mountable PCRM-350. The CG-300 includes the same basic text CG functions as the CG-350 but does NOT include the independent banner crawl and Snyper tools.

DeckLink 4K
CG-300/350 is compatible with DeckLink HD Extreme 4K Card and Decklink SDI 4K Card

Banner Crawl & Snyper
The CG-350 features continuously-rolling text crawls, corner graphics and animations over your outgoing program.

Gradient Support
Create smooth gradients between any 2 colors in the characters, edges, shadows and shapes.

Custom Texture Support
Character attributes can be drawn with custom textures (marble, wood grain, etc). (Up to 16 textures per page)

1,000 Layers
Text, logos and shapes can be placed on multiple layers, each independent of the others. Layers can be named.

Many Formats Supported
Support for BMP, JPG, GIF, PCX, TIF and TGA images.

Text-Style Gallery
Text Style Gallery - One button access to your 64 user-defined text styles.

True Type
Typefaces - each page can use up to 25 Truetype different typefaces.

Independent Lettering
Character height, width, angle and rotation all customizable and independent from letter to letter.

Variable Blurring
Variable character and edge blurs, independent of each other.

SDK Buildable
The CG-300 and CG-350 have SDK's which allow you to create a direct interface to the software.

TC-200+CG-200 Character Generator Kit
Datavideo's CG-200 and TC-200: an innovative HD CG system for mobile broadcasting, live conferences and dynamic video presentations. Using a standard laptop, it enables users to create and deliver attractive on-screen graphics and titles in real-time. It is easy to operate, designed to be intuitive and responsive under the pressure of a live event. CG-200 and TC-200 works with standard Windows laptops with an HDMI interface and supports vision mixers with and without a DSK. Until now, real-time PC titling software has required an additional SDI adapter card to be fitted into a desktop PC. For live programming on location, a computer-based character generator can be problematic, in terms of the physical bulk of the PC, the need for an additional screen and the power requirement. CG-200 and TC-200 makes professional CG on the run a reality.

DSK mode
As software only, CG-200 and TC-200 can work with a vision mixer equipped with a DSK. In this mode, CG-200 and TC-200 can be set up as the key source or fill source. It can work with any vision mixer (such as the Datavideo SE-2800 and SE-3000) that has a downstream keyer (DSK).

Overlay mode
The Title Overlay mode overcomes the lack of a DSK in the vision mixer. Using the small external TC-200 hardware unit, The HDMI output from the laptop is embedded with the SDI output from a camcorder, VTR or vision mixer.

• Live Title Generator
• No additional PCI card required
• Supports DSK function (via HDMI) or SDI overlay function (with optional TC- 200)
• Support HD/SD SDI input and output in Overlay mode
• Supports HD video with 1080i 50/ 59.94/60; 720p 50/59.94/60
• Supports SD video: 576i/480i
• Title editing on laptop
• compatible with Windows 7/8
• Supports all Windows fonts
• Multi-language support
• Supports animation including JPG, TAG, GIF, BMP, PNG
• Supports scrolling
• Title editing patterns include Slide, Reveal,etc.
• Easy logo set up
• TC-200 working voltage is 7-15V. It can be used with 7.2V & 14.4V batteries
