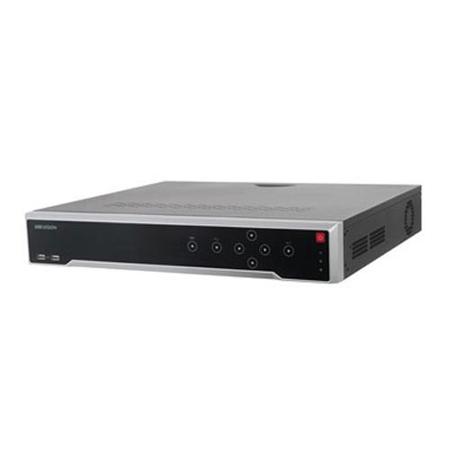

Hikvision DS-7732NI-I4/16P 32-Channel 12MP Embedded Plug and Play NVR, No HDD
See all Hikvision items

Hikvision DS-7732NI-I4/16P 32-Channel 12MP Embedded Plug and Play NVR, 4x SATA & 16x PoE Interfaces, No HDD

SKU: DVD32NII416P

This item is no longer available.

Recommended Alternatives

See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hikvision DS-7732NI-I4/16P Specifications

Video/Audio Input

Video/Audio Input

Jump to...

  • Channels

    32

  • Resolution

    Up to 12 MP resolution

  • Two-Way Audio

    1-ch, RCA (2.0 Vp-p, 1 KOhms)

Network

Jump to...

  • Video Compression

    H.265+, H.265, H.264+, H.264, MPEG4

  • Incoming Bandwidth

    256 Mbps

  • Outgoing Bandwidth

    256 Mbps

  • Remote Connections

    128

Video/Audio Output

Jump to...

  • Recording Resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • CVBS Output (Optional)

    1-ch, BNC (1.0 Vp-p, 75 Ohms), resolution: 704 x 480

  • HDMI Output Resolution

    4K (3840 x 2160), 1920 x 1080p, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768

  • VGA Output Resolution

    1920 x 1080p, 1280 x 1024, 1280 x 720, 1024 x 768

  • Audio Output

    1-ch, RCA (linear 1 KOhms)

Decoding

Jump to...

  • Decoding Format

    H.265+/H.265/H.264+/H.264/MPEG4

  • Live View/Playback Resolution

    12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Synchronous Playback

    16-ch

  • Capability

    2-ch at 12 MP (20 fps)/4-ch at 8 MP (25 fps)/8-ch at 4MP (30 fps)/16-ch at 1080p (30 fps)

Network Management

Jump to...

  • Network Protocols

    TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Hard Disk

Jump to...

  • SATA

    4 SATA interfaces for 4 HDDs

  • Capacity

    No HDD Included
    Maximum: Up to 8TB capacity for each HDD

External Interface

Jump to...

  • Network Interface

    1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

  • Serial Interface

    1 RS-485 (half-duplex), 1 RS-232

  • USB Interface

    Front panel: 2 x USB 2.0; rear panel: 1 x USB 3.0

  • Alarm In/Out

    16/4

PoE Interface

Jump to...

  • PoE Interface Quantity

    16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

  • Power

    <=200W

  • Supported Standards

    IEEE 802.3 af/at

General

Jump to...

  • Power Supply

    100 to 240 VAC

  • Power

    <=300W

  • Consumption

    Without Hard Disk: <=20 W (without enabling PoE)

  • Working Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Working Humidity

    10% to 90% (non-condensing)

  • Dimensions (WxDxH)

    445 x 400 x 71mm (17.52 x 15.75 x 2.80")

  • Weight

    Without Hard Disk: <=5kg (11.02 lbs)

Other

Jump to...

  • UPC Code

    813908024449

1 Accessories for Hikvision DS-7732NI-I4/16P 32-Channel 12MP Embedded Plug and Play NVR, 4x SATA & 16x PoE Interfaces, No HDD

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Hikvision DS-7732NI-I4/16P

The Hikvision DS-7732NI-I4/16P NVR provides high resolution, high video compression and HDMI video output up to 4K. The DS-7732NI-I4/16P's 16 independent PoE connections offer easy setup. The model includes smart search and smart playback to make locating specific incidents quick and accurate. The dual-OS design ensures high system reliability and Hikvision's proprietary ANR technology guarantees storage reliability when the network is disconnected.

The DS-7732NI-I4/16P supports live view, recording and storage of up to 32 cameras simultaneously, with resolutions up to 12 MP. Customers will benefit from the centralized management of cameras and features such as information import/export, real-time information display, two-way audio and VCA detection alarms.

Hikvision DS-7732NI-I4/16P Features

  • 32-channel
  • 12 MP Recording Resolution
  • 32 IP Camera Inputs
  • Maximum Incoming/Outgoing Bandwidth: 256 Mbps
  • H.265+/H.265/H.264+/H.264/MPEG4
  • 4K (3840 x 2160) HDMI Video Output
  • Independent HDMI and VGA Outputs
  • 4x SATA HDD Interfaces
  • Smart Search and Smart Playback
  • Alarm and Audio I/O
  • Long Distance (100 to 300m) Network Transmission via PoE
  • 19-inch rack-mounted 2U chassis

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision DS-7732NI-I4/16P 32-Channel 12MP Embedded Plug and Play NVR (No HDD)
  • Hikvision 3 Year Parts and Labor Limited Warranty
