Datavideo Analog To SDI Converter Specifications

  • Video inputs

    1 X CVBS, BNC connector 75 Ohm (O)
    1 X S-Video (Y/C) 4pin Mini Din connector
    1 X YUV (3 x BNC connectors, 75 O)

  • Audio inputs

    2 x balanced stereo audio, XLR connectors
    2 x unbalanced stereo audio, RCA / Phono sockets

  • Composite Video (CVBS):

    75O 1.0 V p-p

  • S-Video (Y/C)

    4 Pin Mini Din 75O Y: 1.0 V p-p, C: 0.627 mV p-p

  • Bandwidth

    > 5.0mHz

  • Bandwidth

    > 5.0mHz

  • S/N Ratio

    > 48 dB

  • S/N Ratio

    > 48 dB

  • Differential of Gain(DG)

    <3%

  • Differential of Phase(DP)

    <3°

  • THD.

    < 0.1%

  • Control

    RS-232 protocol for PC firmware update

  • Power

    DC 12V 500mA

  • Dimension (W x H x D)

    215mm x 115mm x 44mm

  • Weight

    1.3 Kg

About Datavideo Analog To SDI Converter

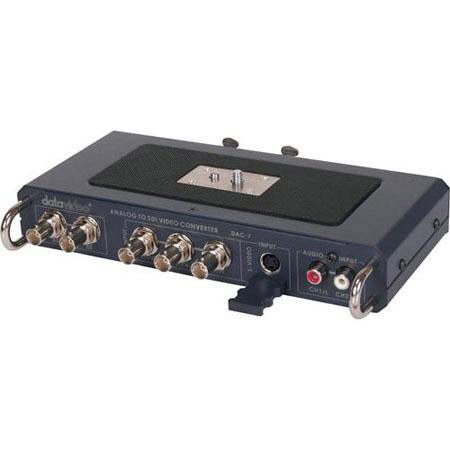

Datavideo DAC-7 is a small, extremely portable but powerful mini converter that enables users to convert the output from any camera, including prosumer level cameras, to professional SD-SDI for easy connection to existing professional or broadcast equipment; for example SDI switchers such as Datavideo's SE-900 or SE-1000. The DAC-7 can accommodate two channels of audio input via RCA or balanced XLR and embed them both in the SDI signal, requiring only one SDI cable for both video and audio transmission.

Datavideo Analog To SDI Converter Features

  • Video input connections include
  • 1x Composite (CVBS), 1x S-Video (Y/C) and 1x Component Y.U.V. (Y,Pb,Pr)
  • 2x SD-SDI (BNC) outputs both with embedded 2 channel audio
  • SD-SDI output signal that complies with the SMPTE259M-C standard at 270 Mbps
  • Connections for CH1/L and CH2/R on unbalanced RCA/Phono cabling
  • Connections for CH1/L and CH2/R on balanced XLR cabling
  • 12 and 16 bit audio auto recognition
  • Space saving - camera and tripod mountable
  • Rugged case design with easy access to Audio and Video connections
  • 12 Volt DC 1.5A input connector

Key Features

  • Video input connections include
  • 12 and 16 bit audio auto recognition
  • Space saving - camera and tripod mountable
  • 12 Volt DC 1.5A input connector

What's in the box:

  • Datavideo Analog to SDI Converter
  • 12V 1.5A DC Operation 110/220 Power Supply
  • Cord
  • Datavideo 1 Year Warranty
