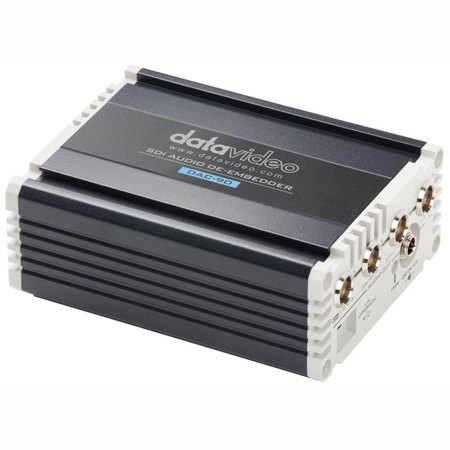

Datavideo DAC-90 SDI Audio De-Embedder

SKU: DVDAC90 MFR: DAC-90
Earn VIP Reward Points

Key Features

  • Easily de-embed audio from SDI signals with the Datavideo DAC-90 for pristine sound.
  • Get wide compatibility: This SDI audio de-embedder supports SD, HD, and 3G formats seamlessly.
  • Enjoy low latency audio extraction with balanced mini XLR outputs for professional use.
  • This affordable SDI de-embedder offers stable performance for broadcast and studio setups.
  • Use the DAC-90's simple DIP switch to control settings, making setup quick and easy.
  • Trust in high resolution audio sampling at 24-bit/48kHz for superior audio clarity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$31.99

3 Year

$51.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo DAC-90 Specifications

Interface

Interface

Jump to...
  • SDI Video Input

    1x 3G/HD/SD SDI

  • SDI Video Output

    1x 3G/HD/SD SDI (Re-clocked Loop through)

  • Analog Audio Output

    4x Mini XLR (Balanced)

  • Audio Level Indicators

    1x Power LED
    Audio Level LED: 4 rows

  • Updates and Configuration

    1x Mini-USB

Standards

Jump to...
  • SDI Format Support

    SD:
    NTSC 525/29.97 and PAL 625/25

    HD:
    1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60
    720p 23.98/24/25/29.97/30/50/59.94/60

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M-AB
    ITU-R BT.656, ITU-R BT.1120-6

  • SDI Video Rates

    SDI video connections are switchable between standard definition and high definition

  • SDI Video Sampling

    4:2:2 / 4:4:4

  • SDI Audio Sampling

    24-bit (SD 20-bit), 48kHz

  • SDI Color Precision

    4:2:2 / 4:4:4 (8/10/12-bit)

  • SDI Color Space

    YUV, RGB

  • SDI Auto Switching

    Automatically detects SD, HD, 3G

  • Audio Level

    SMPTE and EBU switchable

General

Jump to...
  • Settings Control

    DIP Switch

  • Power Supply

    12 VDC

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Operating Humidity

    10 to 90% (noncondensing)

  • Certification

    CE, FCC

  • Dimensions (WxHxL)

    3.3 x 0.2 x 4.4" (8.38 x 0.51 x 11.18cm)

  • Weight

    0.81 lbs (0.37kg)

  • UPC Code

    672255004197

About Datavideo DAC-90

Why settle for less when you can have the DAC-90 SDI Audio De-Embedder, a high-performance audio extraction tool designed for professional use This advanced device allows users to de-embed up to 16 analogue audio signals, four at a time, from an SDI video signal, ensuring high-quality audio extraction for your multimedia projects.

The DAC-90 SDI Audio De-Embedder is equipped with 3G/HD/SD-SDI support, capable of handling video formats up to 1080p/60. This feature-rich audio de-embedder box is designed to automatically detect and switch between different video formats, providing seamless operation and superior convenience for the user.

One of the standout features of the DAC-90 SDI Audio De-Embedder is its four mini XLR audio connectors. These connectors are specifically designed for outputting analogue audio to a variety of audio devices such as monitors, recorders, switchers, and audio mixers. This makes it an ideal choice for professionals in the broadcasting and audio-visual industry who require reliable and high-quality audio extraction.

Furthermore, the DAC-90 SDI Audio De-Embedder offers SMPTE and EBU switchable settings, providing flexibility and adaptability to different audio standards. The de-embedded audio signal can be easily assigned using the built-in DIP switches, providing users with a high level of control and customization.

In conclusion, the DAC-90 SDI Audio De-Embedder is more than just an audio de-embedder box. It's a versatile and powerful tool that delivers high-quality audio extraction, making it an essential piece of equipment for any professional audio-visual setup.

Datavideo DAC-90 Features

  • Audio De-Embedder
  • De-Embed Audio from SDI Signal
  • Automatically detects 3G, HD, SD signal
  • 4x Analogue Mini XLR Audio outputs
  • Assignable De-embedded audio signal
  • Audio level indicator display
  • SMPTE and EBU Audio level switchable
  • Control via DIP Switches

Key Features

  • Easily de-embed audio from SDI signals with the Datavideo DAC-90 for pristine sound.
  • Get wide compatibility: This SDI audio de-embedder supports SD, HD, and 3G formats seamlessly.
  • Enjoy low latency audio extraction with balanced mini XLR outputs for professional use.
  • This affordable SDI de-embedder offers stable performance for broadcast and studio setups.
  • Use the DAC-90's simple DIP switch to control settings, making setup quick and easy.
  • Trust in high resolution audio sampling at 24-bit/48kHz for superior audio clarity.

What's in the box:

  • Datavideo DAC-90 SDI Audio De-Embedder
  • AD Switch DC 12V
  • 2x Mini XLR to Male XLR Cable
  • Power Adapter
  • Quick Start Guide
  • Datavideo 3 Year Warranty (1 Year + 2 Year with Registration)
