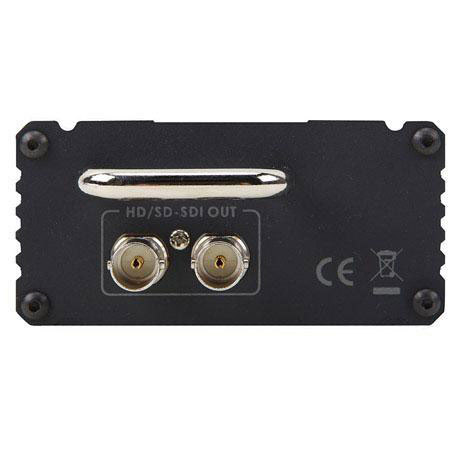

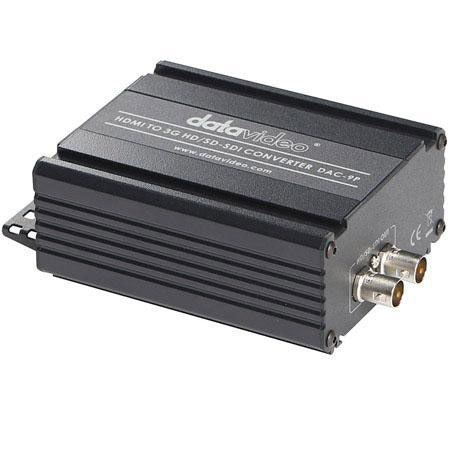

Datavideo DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter

SKU: DVDAC9P MFR: DAC9P
Earn VIP Reward Points

Key Features

  • Seamless HDMI to HD/SD-SDI conversion ensures high-quality video format converter output every time.
  • Enjoy real-time video conversion with this format converter, perfect for live broadcasting setups.
  • Achieve stable performance converting HDMI to SDI, maintaining signal integrity for professional use.
  • This video converter supports up to 1080p/60 resolution, ensuring compatibility with various devices.
  • With easy setup, the Datavideo DAC-9P converter is ready to use, saving time on complex configurations.
  • Affordable price point makes this reliable HDMI to SDI converter accessible for diverse production needs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Datavideo DAC-9P Specifications

  • Input

    1x HDMI 1.4

  • Output

    2x HD/SD-SDI

  • Supported HDMI Input Formats

    720x480 Interlaced
    720x576 Interlaced
    1280x720 / 50Hz Progressive
    1280x720 / 59.94Hz Progressive
    1280x720 / 60Hz Progressive
    1920x1080 / 50Hz Interlaced
    1920x1080 / 59.94Hz Interlaced
    1920x1080 / 60Hz Interlaced

  • HD SDI Signal

    SMPTE 292M standard complied with
    Output return loss: More than 15 dB (5MHz to750MHz)
    More than 10 dB (750MHz to 1.5 GHz)
    Output level: 0.8 Vpp +/- 10%
    Transition time: Min then 270 ps
    Difference between rise time and fall time within 100 ps
    Eye aperture ratio: More than 90%
    DC offset: 0 +/- 0.5V
    Equalizer use 5C-FB cable support 100 meters

  • SD SDI Signal

    SMPTE 292M standard complied with
    Output return loss: More than 15 dB (5MHz to750MHz)
    More than 10 dB (750MHz to 1.5 GHz)
    Output level: 0.8 Vpp +/- 10%
    Transition time: 0.4 - 1.5ns
    Difference between rise time and fall time within 100 ps
    Eye aperture ratio: More than 90%
    DC offset: 0 +/- 0.5V
    Equalizer use 5C-FB cable support 100 meters

  • Operating Temperature

    0deg.C to 40deg.C (32deg.F to 102deg.F)

  • Humidity

    10% to 90% (non condensing)

  • Power

    Output DC 12V / 1.0A

  • Dimensions (W x D x H)

    145 x 85 x 30mm / 5.70 x 3.35 x 1.18"

  • Weight

    0.33kg / 0.72lbs

  • UPC Code

    672255004166

About Datavideo DAC-9P

Where high-definition recording and broadcasting are concerned, the Datavideo DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter stands as a crucial tool for professionals. This converter is designed to bridge the gap between the latest High Definition camcorders and devices that only offer HDMI output options, and professional SDI equipment such as video switchers or recorders.

The DAC-9P converter is a solution to the limitations of HDMI, which is not suitable for long cable runs. With the Datavideo DAC-9P, users can seamlessly convert HDMI to both High Definition and Standard Definition SDI. This conversion allows users to leverage the superior quality and cost-effective connectivity that SDI cables offer, extending reach up to 200 meters away.

One of the standout features of the DAC-9P is its ability to embed the audio from HDMI into the SDI signal. This means that only one single, low-cost cable is needed for both video and audio transmission, simplifying setup and reducing clutter.

In a world where high-quality video production is paramount, the Datavideo DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter is an essential tool for professionals seeking to maximize their equipment's potential and streamline their workflow.

Datavideo DAC-9P Features

  • Converts video with embedded audio
  • Supports up to 1080p/60 NTSC or 1080p/50 PAL
  • Auto-sensing HDMI 1.4 input and two HD/SD-SDI outputs
  • Outputs as either HD-SDI or SD-SDI based on the image quality of the input

Key Features

  • Seamless HDMI to HD/SD-SDI conversion ensures high-quality video format converter output every time.
  • Enjoy real-time video conversion with this format converter, perfect for live broadcasting setups.
  • Achieve stable performance converting HDMI to SDI, maintaining signal integrity for professional use.
  • This video converter supports up to 1080p/60 resolution, ensuring compatibility with various devices.
  • With easy setup, the Datavideo DAC-9P converter is ready to use, saving time on complex configurations.
  • Affordable price point makes this reliable HDMI to SDI converter accessible for diverse production needs.

What's in the box:

  • Datavideo DAC-9P HDMI to HD/SD-SDI 1080p/60 Converter
  • Switching Adaptor DC 12V 1.5A
  • Instruction Manual
  • Datavideo 1 Year Warranty
