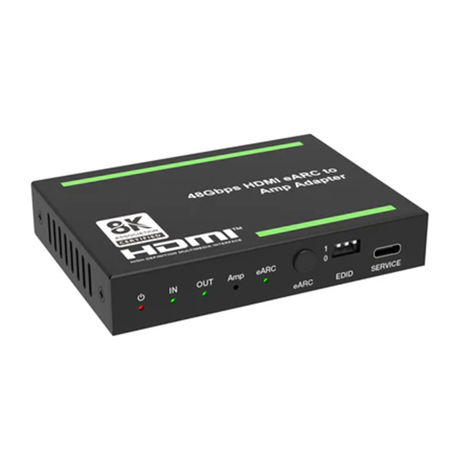

DVDO 8K HDMI 2.1 Audio Extractor with eARC for AV Receivers, Black
DVDO HDMI Audio Extractor: Picture 1 thumbnail
DVDO HDMI Audio Extractor: Picture 2 thumbnail
DVDO HDMI Audio Extractor: Picture 3 thumbnail
See all DVDO items
New Arrival

DVDO 8K HDMI 2.1 Audio Extractor with eARC for AV Receivers, Black

SKU: DVDAUDIOE2 MFR: DVDO-AUDIOE-2
Be the first to review this itemAsk a Question
$119.00
Earn VIP Reward Points

Key Features

  • Experience pristine 8K HDMI 2.1 video resolution at 60Hz and 4K at 120Hz for ultimate clarity.
  • Enjoy immersive audio with eARC support, delivering high-quality sound to your AV receiver.
  • Seamlessly extract audio from your HDMI source without any latency for perfect lip-sync.
  • Benefit from broad audio format compatibility, including Dolby Atmos and DTS:X, for cinematic sound.
  • Connect effortlessly with 1x HDMI input and 2x HDMI outputs, simplifying your home theater setup.
  • Ensure future-proof performance with HDCP 2.3 compliance and a robust 48Gbps video bandwidth.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$9.99
2-Year Adorama Protect$14.99
3-Year Adorama Protect$23.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DVDO HDMI Audio Extractor Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 2.1

  • HDCP Compliance

    HDCP 2.3

  • Video Bandwidth

    48Gbps FRL and 18Gbps TMDS

  • Video Resolution

    Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit

  • Audio Latency

    No Latency

  • Video Latency

    No Latency

  • Color Depth

    8/10/12bit

  • Color Space

    RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0

  • Audio Formats

    HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD,DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X

    HDMI AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X

  • HDR

    HDR, HDR10, HDR10+, Dolby Vision, HLG

  • ESD Protection

    IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connections

Jump to...

  • Input

    1x Source IN (HDMI Type A, 19-pin female)

  • Output

    1x TV(eARC) OUT (HDMI Type A, 19-pin female)
    1x Amp AUDIO OUT (HDMI Type A, 19-pin female)

  • Control

    1x Service (USB Type C, Update port)

Mechanical

Jump to...

  • Power Supply

    Input: AC 100-240V 50/60Hz, Output: DC 5V/2A(US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    4.5W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Humidity

    20% to 90%, non-condensing

Physical

Jump to...

  • Color

    Black

  • Material

    Metal enclosure

  • Dimensions (W x D x H)

    3.74 x 2.68 x 0.71" (95 x 68 x 18mm)

  • Weight

    6.28 oz (178g)

Other

Jump to...

  • UPC Code

    880802002033

About DVDO HDMI Audio Extractor

DVDO-AudioE-2 is an HDMI eARC audio to amplifier adapter designed to de-embed the audio signal from an HDMI source or TV with ARC/eARC and output the HDMI audio signal to an AV receiver or amplifier.

It supports data rates up to 48Gbps complying with HDMI 2.1 and HDCP 2.3 standards. It is compatible with UHDTV 8K@60Hz signals and provides EDID management, cable equalization as well as CEC control from the TV to the source and amplifier.

It is the ideal solution for HDMI installations that need to send audio signals from newer generation TVs to legacy amplifiers that don't support eARC.

Applications
• Residential Audio
• Home Theater
• Hospitality
• Restaurants
• Digital Signage
• Conference Rooms
• Education
• Houses of Worship

DVDO HDMI Audio Extractor Features

  • HDMI 2.1 and HDCP 2.3 compliant
  • Video resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
  • 48Gbps FRL and 18Gbps TMDS video bandwidth as specified in HDMI 2.1
  • VRR, ALLM, QMS, QFT, SBTM as specified in HDMI 2.1
  • HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
  • LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
  • HDMI input audio or TV ARC/eARC audio de-embedded to HDMI audio output
  • Supports CEC control from TV to the source and amplifier
  • Supports CEC volume control from TV to the amplifier sound system
  • Advanced EDID management
  • Compact design for easy and flexible installation

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience pristine 8K HDMI 2.1 video resolution at 60Hz and 4K at 120Hz for ultimate clarity.
  • Enjoy immersive audio with eARC support, delivering high-quality sound to your AV receiver.
  • Seamlessly extract audio from your HDMI source without any latency for perfect lip-sync.
  • Benefit from broad audio format compatibility, including Dolby Atmos and DTS:X, for cinematic sound.
  • Connect effortlessly with 1x HDMI input and 2x HDMI outputs, simplifying your home theater setup.
  • Ensure future-proof performance with HDCP 2.3 compliance and a robust 48Gbps video bandwidth.

What's in the box:

  • DVDO 8K HDMI 2.1 Audio Extractor (Black)
  • 5V/2A Multinational Power Supply
  • User Manual
  • DVDO 3 Year Limited Warranty
