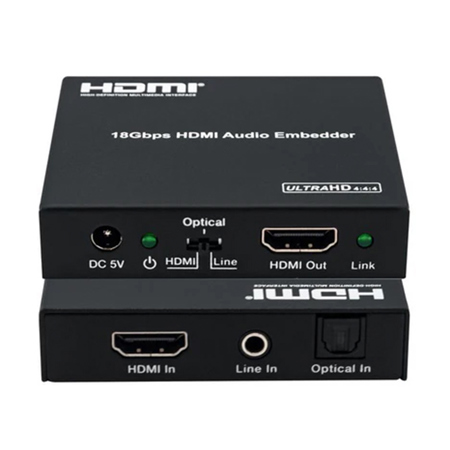

DVDO 4K HDMI 2.0 18Gbps Audio Embedder, Black
DVDO HDMI Audio Embedder: Picture 1 thumbnail
DVDO HDMI Audio Embedder: Picture 2 thumbnail
See all DVDO items

DVDO 4K HDMI 2.0 18Gbps Audio Embedder, Black

SKU: DVDAUDIOEMB1 MFR: DVDO-AUDIOEMB-1
Be the first to review this itemAsk a Question
$99.00
Earn VIP Reward Points

Key Features

  • Seamlessly embed external audio into your HDMI 2.0 signal for enhanced sound quality.
  • Enjoy stunning visuals with 4K2K@60Hz (YUV 4:4:4) resolution support and 18Gbps video bandwidth.
  • Achieve versatile audio integration with L/R stereo and optical inputs for diverse setups.
  • Benefit from robust HDCP 2.2 and 1.4 compliance, ensuring wide compatibility with your devices.
  • Experience reliable performance with a durable metal enclosure and a 3-year limited warranty.
  • Effortlessly integrate this compact audio embedder into any video switching and distribution system.
See More Product Details
Temporarily On Backorder?Expected Availability: 01/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$4.99
2-Year Adorama Protect$7.99
3-Year Adorama Protect$13.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DVDO HDMI Audio Embedder Specifications

Technical

Technical

Jump to...

  • HDMI Compliance

    HDMI 2.0b

  • HDCP Compliance

    HDCP 2.2 and HDCP 1.4

  • Video Bandwidth

    18Gbps

  • Video Resolution

    Up to 4K2K@50/60Hz(YUV4:4:4),4K2K@ 30Hz,1080P@120Hz and 1080P3D@60Hz

  • Color Space

    RGB, YCbCr 4:4:4, YCbCr 4:2:0

  • Color Depth

    10-bit, 12-bit

  • HDMI Audio Formats (Pass-through)

    LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

  • Optical Audio Formats

    LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH

  • L/R Audio Formats

    Analog Stereo 2CH

  • ESD Protection

    Human body model - +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)

Connections

Jump to...

  • Input ports

    1x HDMI Type A (19-pin female)
    1x Line In (3.5mm Stereo Mini-jack)
    1x Optical In (S/PDIF)

  • Outputs

    1x HDMI Type A (19-pin female)

Mechanical

Jump to...

  • Power Supply

    Input: AC100 - 240V 50/60Hz
    Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)

  • Power Consumption

    1.25W (Max)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Relative Humidity

    20 - 90% RH (no-condensing)

Physical

Jump to...

  • Color

    Black

  • Material

    Metal Enclosure

  • Dimensions (W x D x H)

    2.89 x 2.39 x 0.67" (73.5 x 60.7 x 17mm)

  • Weight

    4.30 oz (122g)

Other

Jump to...

  • UPC Code

    880802002408

About DVDO HDMI Audio Embedder

The HDMI 18Gbps Audio Embedder can embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444).

It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

DVDO HDMI Audio Embedder Features

  • Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
  • Optical audio supports LPCM 2CH, Dolby Digital 2/ 5.1CH, DTS 2/5.1CH
  • Analog audio supports PCM2.0
  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
  • Video resolutions up to 4K2K@50/60Hz (YUV444)
  • Supports HDMI High Bit Rate(HBR) audio pass through
  • 10bits HDR (High Dynamic Range) pass through
  • Supports CEC bypass

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly embed external audio into your HDMI 2.0 signal for enhanced sound quality.
  • Enjoy stunning visuals with 4K2K@60Hz (YUV 4:4:4) resolution support and 18Gbps video bandwidth.
  • Achieve versatile audio integration with L/R stereo and optical inputs for diverse setups.
  • Benefit from robust HDCP 2.2 and 1.4 compliance, ensuring wide compatibility with your devices.
  • Experience reliable performance with a durable metal enclosure and a 3-year limited warranty.
  • Effortlessly integrate this compact audio embedder into any video switching and distribution system.

What's in the box:

  • DVDO 4K HDMI 2.0 18Gbps Audio Embedder (Black)
  • 5V/1A Power Adapter
  • User Manual
  • DVDO 3 Year Limited Warranty
