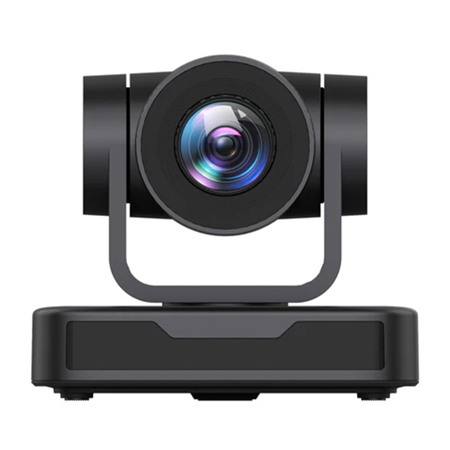

DVDO 2.07MP Full HD Video Conferencing USB 10x PTZ Camera, Black

SKU: DVDC81B MFR: DVDO-C8-1-B
Be the first to review this itemAsk a Question
$499.00
OR
$84/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience crystal-clear Full HD video conferencing with 2.07MP resolution for professional meetings.
  • Achieve perfect framing with 10x optical zoom, ensuring every detail is captured effortlessly.
  • Benefit from flexible control options, including RS232 and USB, for seamless integration into any setup.
  • Quickly recall up to 255 preset positions, making transitions smooth and efficient during presentations.
  • Enjoy superior low-light performance down to 0.5 Lux, maintaining clear visuals in diverse environments.
  • Utilize the responsive pan and tilt speed for dynamic camera adjustments, keeping the focus where it needs to be.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

DVDO PTZ Camera Specifications

Camera Parameters

Camera Parameters

Jump to...

  • Sensor

    1/2.9" high quality CMOS sensor

  • Effective Pixels

    2.07 megapixel, 16:9

  • Video Format

    H264/H265/MJPG:
    1920 x1080P@30/25/20/15/10/5fps
    1280x720P@30/25/20/15/10/5fps
    960x540@30/25/20/15/10/5fps
    800x600@30/25/20/15/10/5fps
    720x576@30/25/20/15/10/5fps
    720x480@30/25/20/15/10/5fps
    640x480@30/25/20/15/10/5fps
    640x360@30/25/20/15/10/5fps
    352x288@30/25/20/15/10/5fps
    320x240@30/25/20/15/10/5fps

  • Video Format (Contd.)

    YUY2:
    1280x720@15/10fps
    800x600@10/5fps
    640x480@25/20/15/10/5fps
    640x360@30/25/20/15/10/5fps

  • Viewing Angle

    8.8 Degree - 68.8 Degree

  • Focus Length

    f= 4.34 - 43.4mm

  • Aperture Value

    f/1.85 - f/2.63

  • Optical Zoom

    10x

  • Digital Zoom

    10x

  • Minimum Illumination

    0.5Lux (F1.8, AGC ON)

  • DNR

    2D & 3D DNR

  • White Balance

    Auto / Manual / One Push / 3000K /
    3500K / 4000K / 4500K / 5000K / 5500K /
    6000K / 6500K / 7000K

  • Focus Mode

    Auto / Manual / One Push

  • Exposure Mode

    Auto / Manual

  • BLC

    On/Off

  • Video Adjustments

    Brightness, Color, Saturation, Contrast, Sharpness, B&W Mode, Gamma Curve

  • SNR

    >=50dB

Interface

Jump to...

  • Video Output

    USB2.0 (A-Type)

  • Video Compression Format

    MJPG, H.264, H.265

  • Control Interface

    RS232 (IN/OUT), RS485

  • Control Protocol

    VISCA / Pelco-D / Pelco-P

  • Power interface

    HEC3800 Power socket (DC12V)

USB Feature

Jump to...

  • Operation Systems

    Windows 7, Windows 8, Windows 10, Mac osx, Linux, etc

  • Video Compression Format

    MJPG/H264/H265

  • USB Communication Protocol

    UVC

PTZ Parameters

Jump to...

  • Pan Rotation

    -170 Degree - +170 Degree

  • Tilt Rotation

    -30 Degree - +30 Degree

  • Pan Speed

    0.1 Degree /s - 60 Degree /s

  • Tilt Speed

    0.1 Degree /s - 40 Degree /s

  • Preset Speed

    Pan: 60 Degree /s, Tilt: 40 Degree /s

  • Preset Number

    255 presets (10 via remote control)

Other Parameters

Jump to...

  • Input Voltage

    12V

  • Input Current

    Maximum: 4.98A

  • Power Consumption

    Maximum: 2.5W

  • Storage Temperature

    -40 Degree F to 158 Degree F (-40 Degree C - +70 Degree C)

  • Storage Humidity

    20% - 90%

  • Working Temperature

    14 Degree F to 122 Degree F (-10 Degree C - +50 Degree C)

  • Working Humidity

    20% - 80%

  • Environment

    Indoor

  • Color

    Black

  • Dimensions

    6.17 x 4.43 x 5.49" (156.8 x 112.6 x 139.5mm)

  • Weight

    2.20 lbs (1kg)

Other

Jump to...

  • UPC Code

    880802002057

About DVDO PTZ Camera

DVDO-C8-1-B is a high quality USB video conferencing PTZ camera with a 10X optical zoom and a horizontal FOV of 68.8 Degree . It features advanced ISP processing algorithms, offering vivid and high resolution video with a strong sense of depth and fantastic color rendition.

Applications
• Video Conferencing
• Education
• Lecture Capture
• Webcasting
• Houses of Worship
• Healthcare
• Tele-medicine
• Courtrooms
• Broadcasting
• Command & Control Centers

DVDO PTZ Camera Features

  • High quality 1/2.9" CMOS sensor
  • Full HD 1920x1080 resolution with frame rate up to 30fps
  • Optical zoom: 10X
  • Digital zoom: 10X
  • Advanced auto focus technology: fast, accurate and stable
  • Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
  • Low noise CMOS produces high SNR image
  • Control interface: RS485, RS232 (cascade connection)
  • Multiple control protocols: VISCA, PELCO-D, PELCO-P with automatic protocol identification
  • Highly accurate step driving motor allows extremely quiet Pan & Tilt motion
  • Up to 255 presets (10 presets via remote control)

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience crystal-clear Full HD video conferencing with 2.07MP resolution for professional meetings.
  • Achieve perfect framing with 10x optical zoom, ensuring every detail is captured effortlessly.
  • Benefit from flexible control options, including RS232 and USB, for seamless integration into any setup.
  • Quickly recall up to 255 preset positions, making transitions smooth and efficient during presentations.
  • Enjoy superior low-light performance down to 0.5 Lux, maintaining clear visuals in diverse environments.
  • Utilize the responsive pan and tilt speed for dynamic camera adjustments, keeping the focus where it needs to be.

What's in the box:

  • DVDO 2.07MP Full HD Video Conferencing USB 10x PTZ Camera (Black)
  • Power Adapter
  • IR Remote Control
  • RS232 Cable
  • User Manual
  • USB 2.0 Cable
  • DVDO 3 Year Limited Warranty
