DVDO 4K60 HDMI Extender over Ethernet, 164' Range
See all DVDO items
New Arrival

DVDO 4K60 HDMI Extender over Ethernet, 164' Range

SKU: DVDCAT4K50 MFR: DVDO-CAT4K-50
Be the first to review this itemAsk a Question
$199.00
OR
$34/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your 4K60 HDMI signal up to 164 feet over Ethernet for seamless viewing.
  • Enjoy superior video performance with 18Gbps bandwidth and 4K@60Hz 4:4:4 resolution.
  • Ensure reliable data transfer and broad compatibility with HDMI 2.0 and HDCP 2.2 support.
  • Benefit from robust ESD protection, safeguarding your KVM cables and switches.
  • Experience versatile audio formats including Dolby TrueHD and DTS-X for immersive sound.
  • Easily set up your system with the included transmitter, receiver, and IR cables.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$14.99
2-Year Adorama Protect$24.99
3-Year Adorama Protect$34.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

DVDO 4K60 HDMI Extender Specifications

Technical

Technical

Jump to...

  • Compliance

    HDMI 2.0 / HDCP 2.2 & 1.4

  • Video Bandwidth & Resolution

    18Gbps / Up to 4K@60Hz 4:4:4

  • Color Space

    RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4

  • Color Depth

    8/10/12-bit (1080p60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
    8-bit (4K60Hz 4:4:4 )

  • Audio Formats

    LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

  • ESD Protection

    Human-body Model: +/-8kV (Air-gap discharge) / +/-4kV (Contact discharge)

Connections

Jump to...

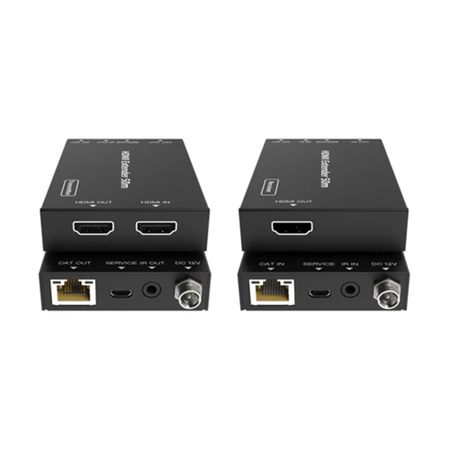

  • Transmitter

    Input: 1x HDMI Type A (19-pin female)
    1x Service (Micro-USB, Update port)

    Outputs: 1x HDMI Type A (19-pin female)
    1x IR OUT (3.5mm Stereo mini-jack)
    1x CAT OUT (RJ45, 8-pin female)

  • Receiver

    Inputs: 1x IR IN (3.5mm Stereo mini-jack)
    1x CAT IN (RJ45, 8-pin female)
    Output: 1x HDMI Type A (19-pin female)

Mechanical

Jump to...

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Temperature

    -4 - 140 Degree F (-20 - 60 Degree C)

  • Humidity

    20% to 90%, non-condensing

  • Power Supply

    Input: AC 100-240V 50/60Hz
    Output: 12V / 1A DC

  • Power Consumption

    3.84W

Physical

Jump to...

  • Color

    Black

  • Material

    Metal

  • Dimensions (W x D x H)

    2.40 x 3.46 x 0.71" (61 x 88 x 18mm)

  • Weight

    Transmitter: 5.64 oz (160g)
    Receiver: 5.47 oz (155g)

Other

Jump to...

  • UPC Code

    880802000381

About DVDO 4K60 HDMI Extender

DVDO-CAT4K-50 is an extender that can transmit HDMI signals up to 164ft/50m for resolutions up to 4K2K@60Hz 4:4:4, 18Gbps via a single CAT5e/6 cable.

The transmitter includes an HDMI loop output that can connect to a local display or to another HDMI extender. It supports EDID copy function (you can choose either local or remote EDID) as well as audio formats up to PCM7.1, Dolby True HD and DTS HD.

Applications
• Conference Rooms
• Education
• Hospitality
• Restaurants
• Digital Signage
• Retail
• Houses of Worship
• Residential

DVDO 4K60 HDMI Extender Features

  • HDMI 2.0, HDCP 2.2 and DVI 1.0 compliant
  • Supports video resolutions up to 4K2K@60Hz YUV 4:4:4 with 18Gbps bandwidth
  • Maximum transmission distance: 164ft/50m with CAT5e/6 cable
  • Automatic EDID copy function
  • HDMI loop out on Transmitter
  • Two-way PoC (Transmitter or Receiver)
  • One-way IR pass-through HDR
  • Compact design for easy and flexible installation
  • Mounting ears included

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your 4K60 HDMI signal up to 164 feet over Ethernet for seamless viewing.
  • Enjoy superior video performance with 18Gbps bandwidth and 4K@60Hz 4:4:4 resolution.
  • Ensure reliable data transfer and broad compatibility with HDMI 2.0 and HDCP 2.2 support.
  • Benefit from robust ESD protection, safeguarding your KVM cables and switches.
  • Experience versatile audio formats including Dolby TrueHD and DTS-X for immersive sound.
  • Easily set up your system with the included transmitter, receiver, and IR cables.

What's in the box:

  • Transmitter
  • Receiver
  • 4.9' IR Blaster Cable
  • 4.9' IR Receiver Cable
  • 12V/1A Locking Power Adapter
  • 4x Mounting Ears
  • User Manual
  • DVDO 3 Year Limited Warranty
